XAPG19201

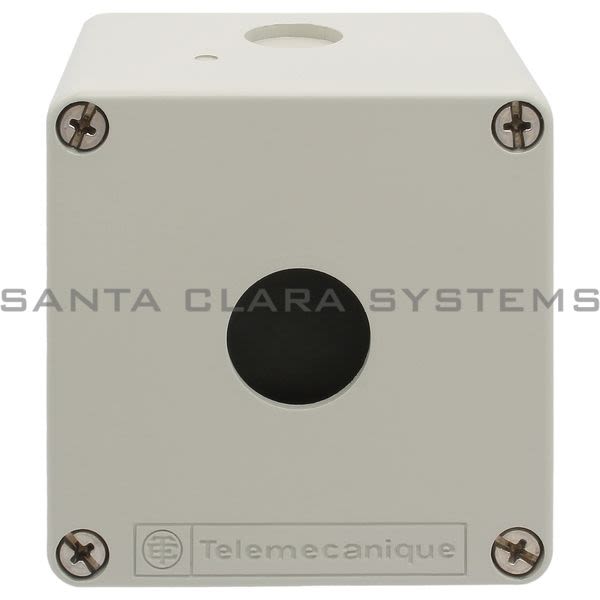

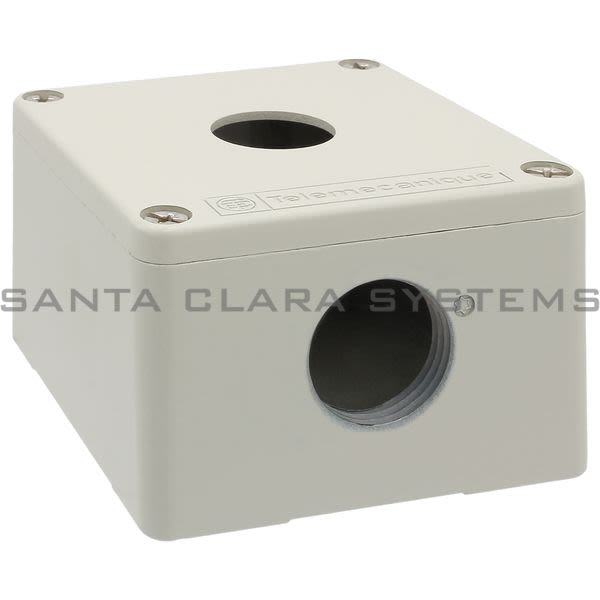

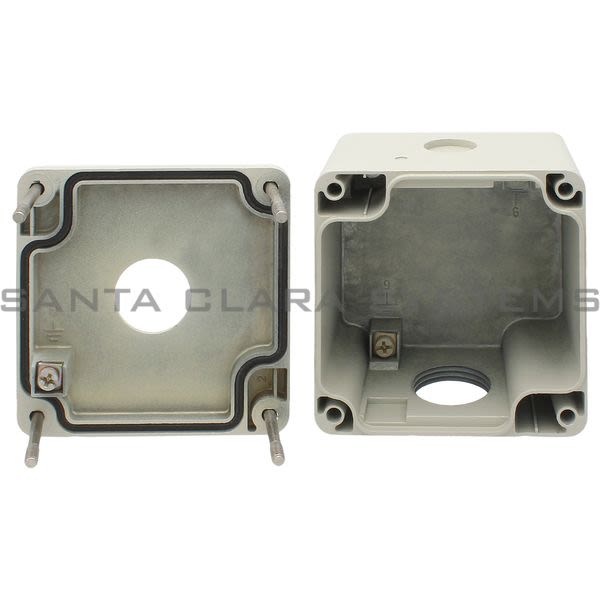

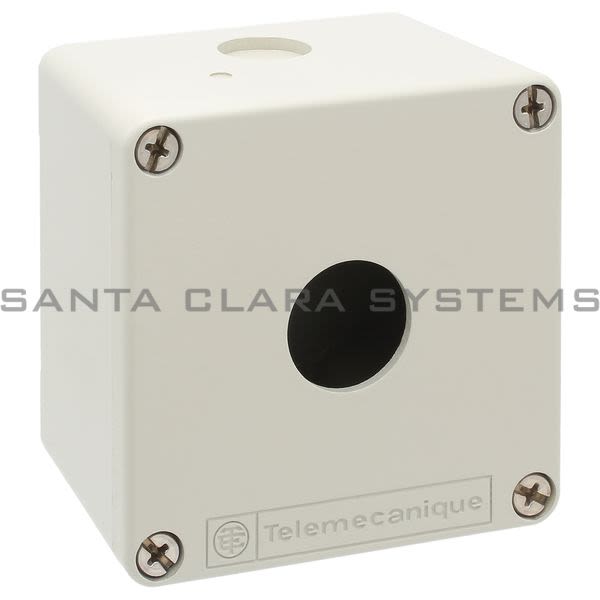

Telemecanique - die-cast empty control station - XAP-G -Ø 22 mm - 1 cut-out

Current response time:

6 Minutes 45 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: die-cast empty control station - XAP-G -Ø 22 mm - 1 cut-out
Range of product: Harmony XAP
IP degree of protection: IP65 conforming to IEC 60529, IP657 conforming to NF C 20-010
Device short name: XAPG
Protective treatment: TC
Material: Zinc alloy
Number of vertical rows: 1
Product or component type: Die-cast empty control station
Ambient air temperature for storage: -40...158 F (-40...70 C)

Ambient air temperature for operation: -13...158 F (-25...70 C)
Product destination: For 22 mm control and signaling units
Electrical shock protection class: Class I conforming to IEC 60536, Class I conforming to NF C 20-030
Number of cut-out: 1 cut-out
Color of base of enclosure: Grey RAL 7032
Color of cover: Grey RAL 7032
Cable entry: 1 hole with blanking plug for cable gland with <= 0.55 in (14 mm), 1 hole without blanking plug for cable gland with <= 0.55 in (14 mm)
Product mounting: Flush mounting
