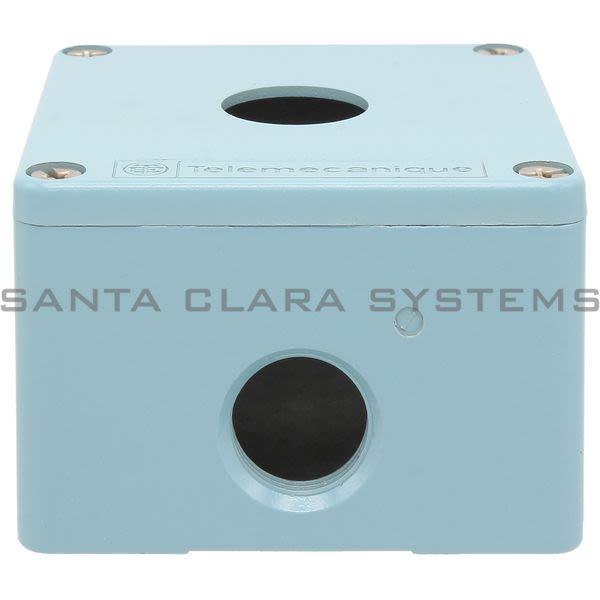

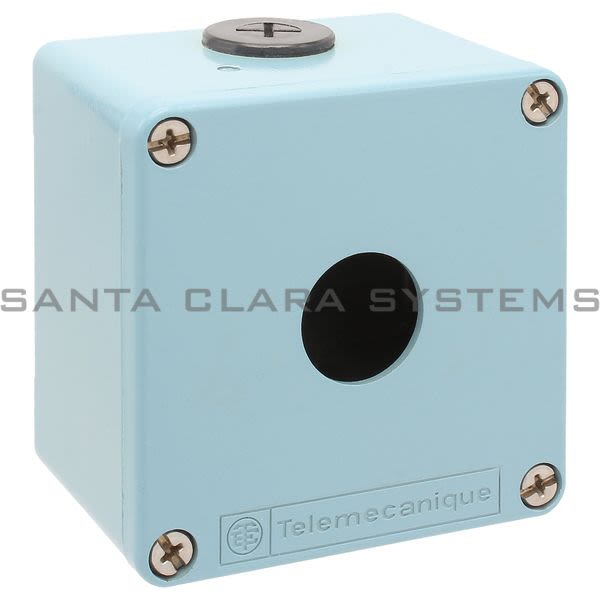

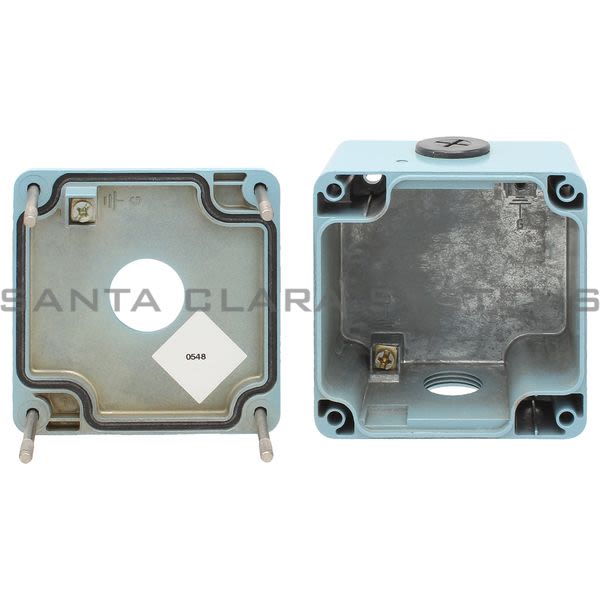

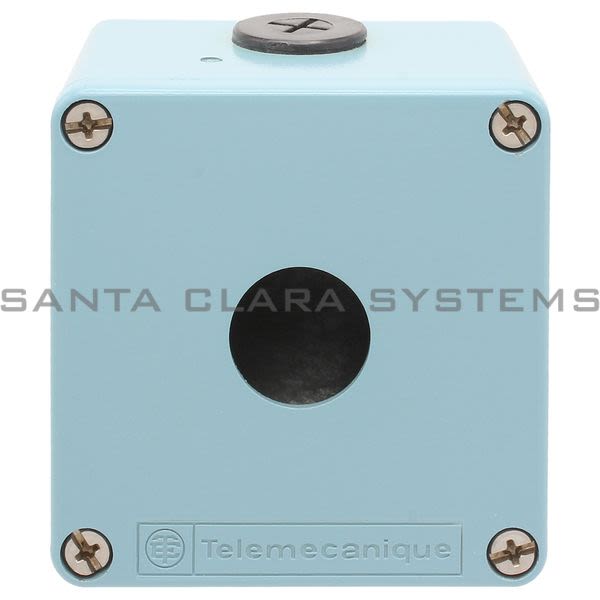

Telemecanique XAPM1201H29 die-cast empty control station - XAPM - Ø 22 - zinc alloy - 1 opening Product Image

XAPM1201H29

Telemecanique - die-cast empty control station - XAPM - Ø 22 - zinc alloy - 1 opening

Product Summary:

Product weight: 1 lb(US) (0.455 kg)
Range of product: Harmony XAP
Device short name: XAPM
Protective treatment: TC
Material: Zinc alloy

Current response time:

6 Minutes 49 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: die-cast empty control station - XAPM - Ø 22 - zinc alloy - 1 opening
Product weight: 1 lb(US) (0.455 kg)
Range of product: Harmony XAP
IP degree of protection: IP69 conforming to NF C 20-010IP65 conforming to IEC 60529IP69K
Device short name: XAPM
Protective treatment: TC
Overvoltage category: Class I conforming to NF C 20-030Class I conforming to IEC 60536
Material: Zinc alloy
Number of vertical rows: 1
Product or component type: Die-cast empty control station

Ambient air temperature for storage: -40...158 °F (-40...70 °C)
Ambient air temperature for operation: -40...158 °F (-40...70 °C)
Product destination: For Ø 22 mm control and signaling units
Product front plate size: 80 x 80 mm
Usable depth: 1.93 in (49 mm)
Number of cut-out: 1 cut-out
Color of base of enclosure: Blue
Color of cover: Blue
Cable entry: 1 hole with blanking plug for ISO 429248 cable gland 0.79 in (20 mm)1 hole without blanking plug for ISO 429248 cable gland 0.79 in (20 mm)
Device mounting: Flush

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on XAPM1201H29 . Santa Clara Systems carries 10,643 items from Telemecanique.
