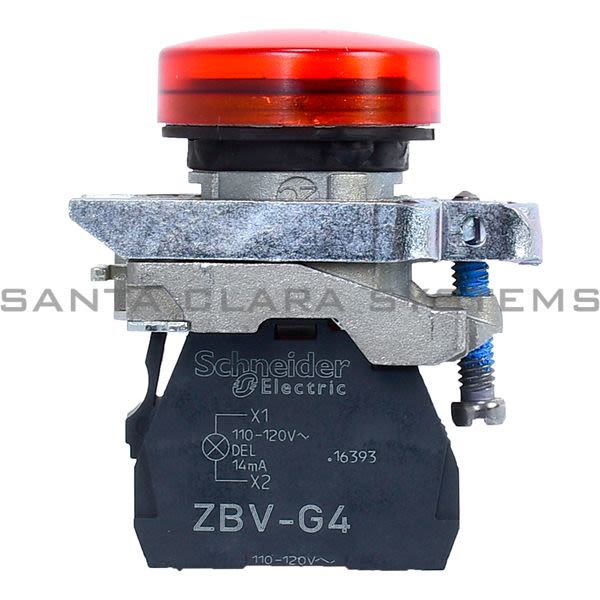

• Telemecanique XB4BVG4 red complete pilot light Ø22 plain lens with integral LED 110?120V Product Image

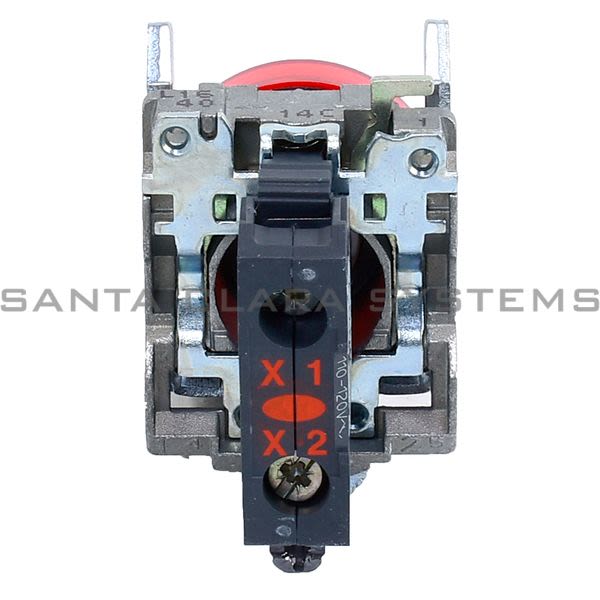

  • Telemecanique XB4BVG4 red complete pilot light Ø22 plain lens with integral LED 110?120V Product Image

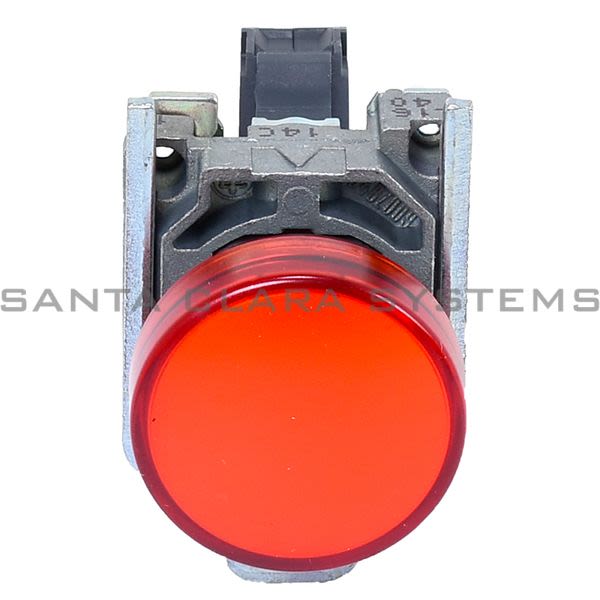

  • Telemecanique XB4BVG4 red complete pilot light Ø22 plain lens with integral LED 110?120V Product Image

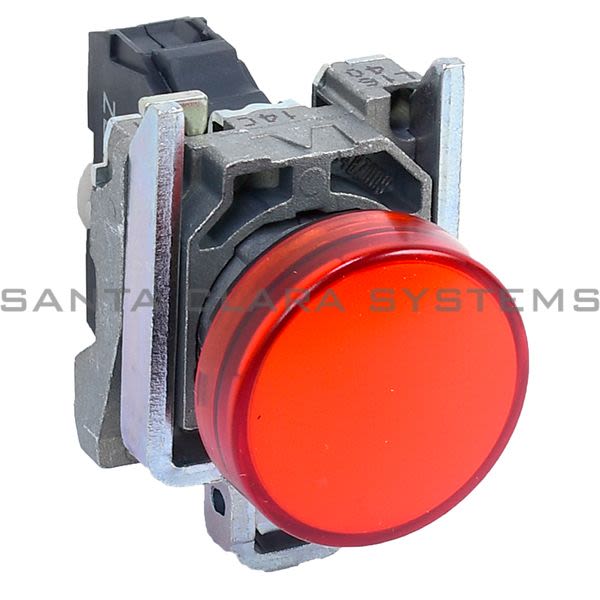

  • Telemecanique XB4BVG4 red complete pilot light Ø22 plain lens with integral LED 110?120V Product Image
  • Telemecanique XB4BVG4 Barcode

XB4BVG4

Get a Quote

Current response time:

6 Minutes 23 Seconds
  • Description: red complete pilot light Ø22 plain lens with integral LED 110?120V
  • Product weight: 0.18 lb(US) (0.08 kg)
  • Range of product: Harmony XB4
  • IP degree of protection: IP69, IP67, IP66 conforming to IEC 60529, IP69K
  • Standards: EN/IEC 60947-5-4, UL 508, JIS C 4520, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-1, CSA C22.2 No 14
  • Device short name: XB4
  • Width: 1.18 in (30 mm)
  • Height: 1.85 in (47 mm)
  • Depth: 2.13 in (54 mm)
  • Protective treatment: TH
  • [Ui] rated insulation voltage: 250 V (degree of pollution: 3) conforming to EN 60947-1
  • [Uimp] rated impulse withstand voltage: 4 kV conforming to EN 60947-1
  • Connections - terminals: Screw clamp terminals: <= 2 x 1.5 mm with cable end conforming to EN/IEC 60947-1, Screw clamp terminals: 1 x 0.22...2 x 2.5 mm without cable end conforming to EN/IEC 60947-1
  • Vibration resistance: 5 gn (f = 12...500 Hz) conforming to IEC 60068-2-6
  • Shock resistance: 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27
  • [Us] rated supply voltage: 110...120 V AC, 50/60 Hz
  • Bezel material: Chromium plated metal
  • Light source: Protected LED
  • Product or component type: Complete pilot light
  • Ambient air temperature for storage: -40...158 F (-40...70 C)
  • Ambient air temperature for operation: -40...158 F (-40...70 C)
  • terminals description ISO n1: (X1-X2)PL
  • Electrical shock protection class: Class I conforming to IEC 60536
  • Fixing collar material: Zamak
  • Mounting diameter: 0.87 in (22 mm)
  • Resistance to high pressure washer: 1015.26 psi (7000000 Pa) at 131 F (55 C),distance: 0.1 m
  • NEMA degree of protection: NEMA 13, NEMA 4X
  • Sale per indivisible quantity: 1
  • IK degree of protection: IK06 conforming to IEC 50102
  • Shape of signaling unit head: Round
  • Cap/operator or lens color: Red
  • Product certifications: UL listed, CSA
  • Operator additional information: With plain lens
  • Signaling type: Steady
  • Supply voltage limits: 100...132 V AC
  • Bulb base: Integral LED
  • Current consumption: 14 mA
  • Resistance to fast transients: 2 kV conforming to IEC 61000-4-4
  • Light source color: Red
  • Service life: 100000 h at rated voltage and 25 C
  • Resistance to electromagnetic fields: 9.14 V/yd (10 V/m) conforming to IEC 61000-4-3
  • Surge withstand: 1 kV conforming to IEC 61000-4-5
  • Resistance to electrostatic discharge: 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
  • Electromagnetic emission: Class B conforming to IEC 55011
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on XB4BVG4 . Santa Clara Systems carries 10,295 items from Telemecanique.
  • Red Complete Pilot Light Ø22 Plain Lens With Integral Led 110?120v
