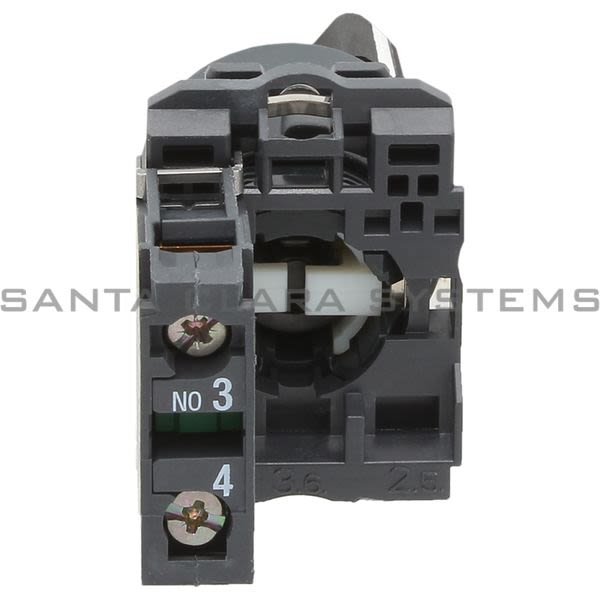

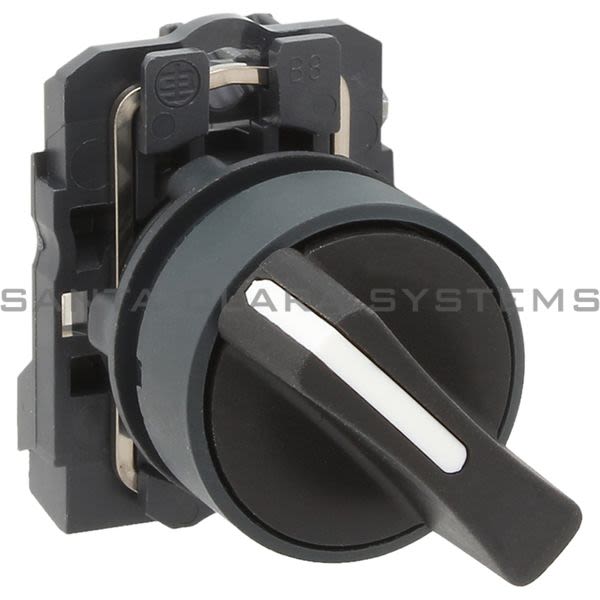

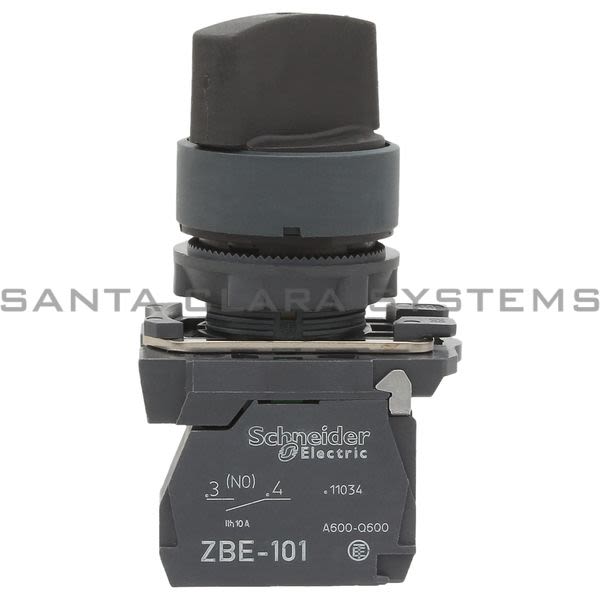

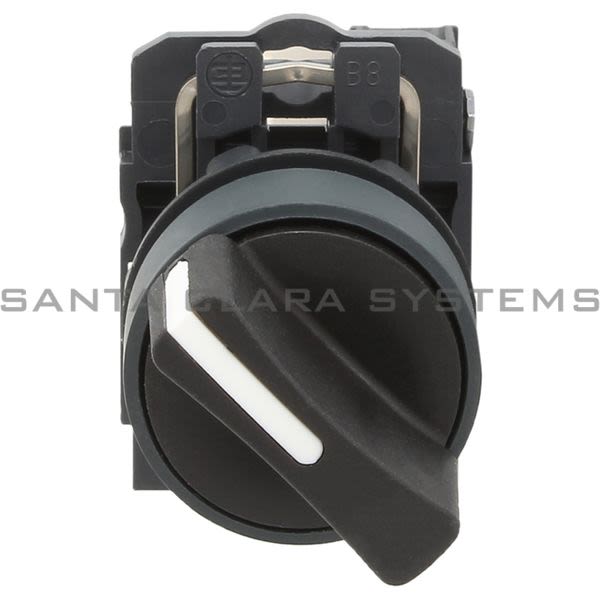

XB5AD21

Telemecanique - Selector Switch

Current response time:

By 5AM PT on Thursday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Selector Switch
Product weight: 0.09 lb(US) (0.043 kg)
Range of product: Harmony XB5
IP degree of protection: IP69IP67 conforming to IEC 60529IP69K
Standards: EN/IEC 60947-5-4CSA C22.2 No 14UL 508JIS C 4520EN/IEC 60947-5-1EN/IEC 60947-1
Device short name: XB5
Width: 1.18 in (30 mm)
Height: 1.65 in (42 mm)
Depth: 2.76 in (70 mm)
Protective treatment: TH
[Ui] rated insulation voltage: 600 V (degree of pollution: 3) conforming to EN 60947-1
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN 60947-1
Mechanical durability: 1000000 cycles
Tightening torque: 7.08...10.62 lbf.in (0.8...1.2 N.m) conforming to EN 60947-1
Connections - terminals: Screw clamp terminals: <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1Screw clamp terminals: >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1
[Ith] conventional free air thermal current: 10 A conforming to EN/IEC 60947-5-1
Vibration resistance: 5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
Shock resistance: 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27
Electrical durability: 1000000 cycles, AC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A at 120 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C1000000 cycles, DC-13, 0.2 A at 110 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C1000000 cycles, DC-13, 0.5 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
[Ie] rated operational current: 1.2 A 600 V AC-15 A600 EN/IEC 60947-5-10.27 A 250 V DC-13 Q600 EN/IEC 60947-5-10.1 A 600 V DC-13 Q600 EN/IEC 60947-5-13 A 240 V AC-15 A600 EN/IEC 60947-5-10.55 A 125 V DC-13 Q600 EN/IEC 60947-5-16 A 120 V AC-15 A600 EN/IEC 60947-5-1
Bezel material: Plastic
Product or component type: Complete selector switch
Ambient air temperature for storage: -40...158 °F (-40...70 °C)

Ambient air temperature for operation: -40...158 °F (-40...70 °C)
terminals description ISO n°1: (13-14)NO
Electrical shock protection class: Class II conforming to IEC 60536
Mounting diameter: 0.87 in (22 mm)
Sale per indivisible quantity: 1
Resistance to high pressure washer: 1015.26 psi (7000000 Pa) at 131 °F (55 °C),distance: 0.1 m
NEMA degree of protection: NEMA 13NEMA 4X
Shape of signaling unit head: Round
Contacts usage: Standard contacts
IK degree of protection: IK06 conforming to IEC 50102
Type of operator: Stay put
Positive opening: Without positive opening
Operator profile: Black standard handle
Torque value: 0.14 N.m NO changing electrical state
Product certifications: LROS (Lloyds register of shipping)ULCSARINADNVBVGL
Operator position information: 2 positions 90°
Contacts type and composition: 1 NO
Contact operation: Slow-break
Shape of screw head: Cross head compatible with Philips no 1 screwdriverCross head compatible with pozidriv No 1 screwdriverSlotted head compatible with flat Ø 4 mm screwdriverSlotted head compatible with flat Ø 5.5 mm screwdriver
Contacts material: Silver alloy (Ag/Ni)
Short-circuit protection: 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
Electrical reliability: < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4? < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4
