• Telemecanique XB5AS8445 Barcode

XB5AS8445

Product Summary:

  • range of product: Harmony XB5
  • height: 1.69 in (43 mm)
  • protective treatment: TH
  • width: 1.57 in (40 mm)
  • ambient air temperature for storage: -40...158 F (-40...70 C)
Let Us Find It
           or

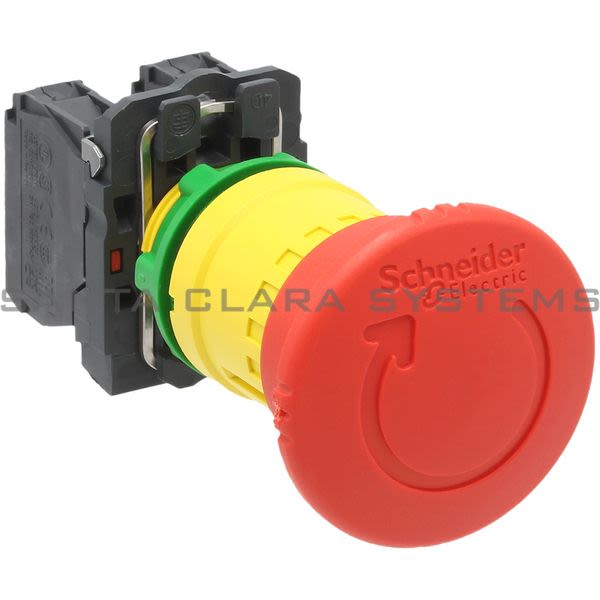

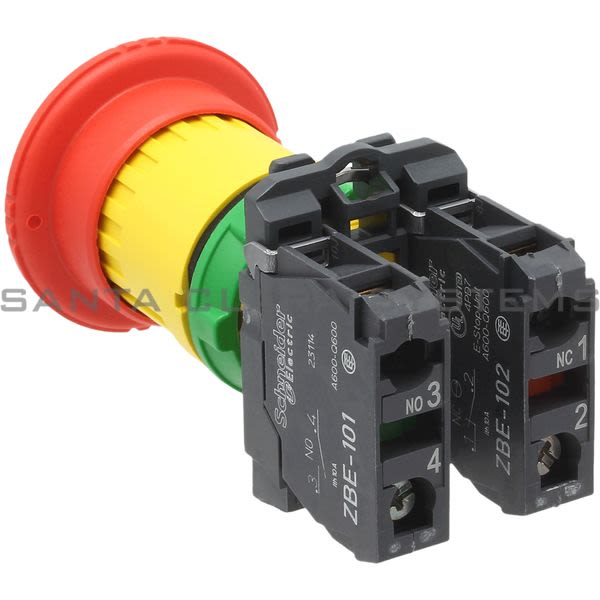

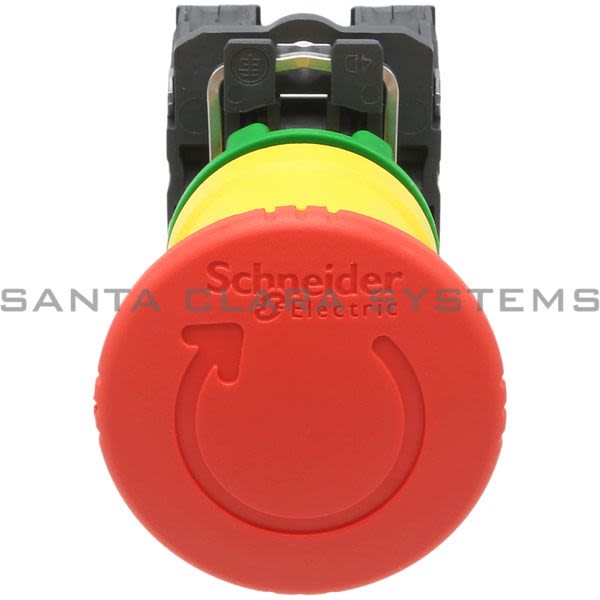

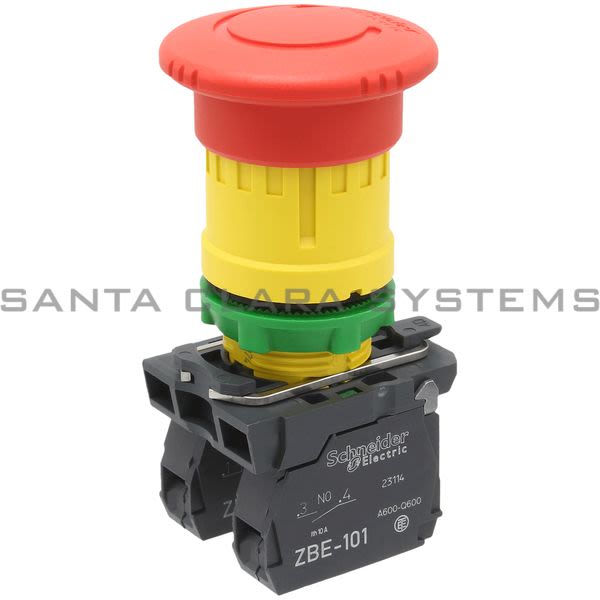

  • Description: red 40 Emergency stop, switching off 22 trigger latching turn release 1NO+1NC
  • standards: UL 508 EN/ISO 13850 IEC 60364-5-53 EN/IEC 60947-5-5 EN/IEC 60947-5-4 CSA C22.2 No 14 EN/IEC 60204-1 EN/IEC 60947-5-1 JIS C 4520 EN/IEC 60947-1, UL 508 EN/ISO 13850 IEC 60364-5-53 EN/IEC 60947-5-5 EN/IEC 60947-5-4 CSA C22.2 No 14 EN/IEC 60204-1 EN/IEC 60947-5-1 JIS C 4520 EN/IEC 60947-1, UL 508 EN/ISO 13850 IEC 60364-5-53 EN/IEC 60947-5-5 EN/IEC 60947-5-4 CSA C22.2 No 14 EN/IEC 60204-1 EN/IEC 60947-5-1 JIS C 4520 EN/IEC 60947-1, UL 508 EN/ISO 13850 IEC 60364-5-53 EN/IEC 60947-5-5 EN/IEC 60947-5-4 CSA C22.2 No 14 EN/IEC 60204-1 EN/IEC 60947-5-1 JIS C 4520 EN/IEC 60947-1, UL 508 EN/ISO 13850 IEC 60364-5-53 EN/IEC 60947-5-5 EN/IEC 60947-5-4 CSA C22.2 No 14 EN/IEC 60204-1 EN/IEC 60947-5-1 JIS C 4520 EN/IEC 60947-1, UL 508 EN/ISO 13850 IEC 60364-5-53 EN/IEC 60947-5-5 EN/IEC 60947-5-4 CSA C22.2 No 14 EN/IEC 60204-1 EN/IEC 60947-5-1 JIS C 4520 EN/IEC 60947-1, UL 508 EN/ISO 13850 IEC 60364-5-53 EN/IEC 60947-5-5 EN/IEC 60947-5-4 CSA C22.2 No 14 EN/IEC 60204-1 EN/IEC 60947-5-1 JIS C 4520 EN/IEC 60947-1, UL 508 EN/ISO 13850 IEC 60364-5-53 EN/IEC 60947-5-5 EN/IEC 60947-5-4 CSA C22.2 No 14 EN/IEC 60204-1 EN/IEC 60947-5-1 JIS C 4520 EN/IEC 60947-1, UL 508 EN/ISO 13850 IEC 60364-5-53 EN/IEC 60947-5-5 EN/IEC 60947-5-4 CSA C22.2 No 14 EN/IEC 60204-1 EN/IEC 60947-5-1 JIS C 4520 EN/IEC 60947-1, UL 508 EN/ISO 13850 IEC 60364-5-53 EN/IEC 60947-5-5 EN/IEC 60947-5-4 CSA C22.2 No 14 EN/IEC 60204-1 EN/IEC 60947-5-1 JIS C 4520 EN/IEC 60947-1
  • type of operator: Trigger action and mechanical latching
  • operating travel: 0.06 in (1.5 mm) (NC changing electrical state) 0.17 in (4.3 mm) (total travel), 0.06 in (1.5 mm) (NC changing electrical state) 0.17 in (4.3 mm) (total travel)
  • product certifications: BV UL listed CSA GL LROS (Lloyds register of shipping) DNV RINA, BV UL listed CSA GL LROS (Lloyds register of shipping) DNV RINA, BV UL listed CSA GL LROS (Lloyds register of shipping) DNV RINA, BV UL listed CSA GL LROS (Lloyds register of shipping) DNV RINA, BV UL listed CSA GL LROS (Lloyds register of shipping) DNV RINA, BV UL listed CSA GL LROS (Lloyds register of shipping) DNV RINA, BV UL listed CSA GL LROS (Lloyds register of shipping) DNV RINA
  • reset: Turn to release
  • mechanical durability: 300000 cycles
  • vibration resistance: 5 gn 2...500 Hz IEC 60068-2-6
  • operator profile: Red mushroom 40 mm unmarked
  • tightening torque: 7.08...10.62 lbf.in (0.8...1.2 N.m) conforming to EN 60947-1
  • shock resistance: 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27
  • contacts type and composition: 1 NO + 1 NC
  • shape of screw head: Cross head compatible with Philips no 1 screwdriver Cross head compatible with pozidriv No 1 screwdriver Slotted head compatible with flat 4 mm screwdriver Slotted head compatible with flat 5.5 mm screwdriver, Cross head compatible with Philips no 1 screwdriver Cross head compatible with pozidriv No 1 screwdriver Slotted head compatible with flat 4 mm screwdriver Slotted head compatible with flat 5.5 mm screwdriver, Cross head compatible with Philips no 1 screwdriver Cross head compatible with pozidriv No 1 screwdriver Slotted head compatible with flat 4 mm screwdriver Slotted head compatible with flat 5.5 mm screwdriver, Cross head compatible with Philips no 1 screwdriver Cross head compatible with pozidriv No 1 screwdriver Slotted head compatible with flat 4 mm screwdriver Slotted head compatible with flat 5.5 mm screwdriver
  • contact operation: Slow-break
  • contacts material: Silver alloy (Ag/Ni)
  • connections - terminals: Screw clamp terminals: <= 2 x 1.5 mm with cable end conforming to EN 60947-1 Screw clamp terminals: >= 1 x 0.22 mm without cable end conforming to EN 60947-1, Screw clamp terminals: <= 2 x 1.5 mm with cable end conforming to EN 60947-1 Screw clamp terminals: >= 1 x 0.22 mm without cable end conforming to EN 60947-1
  • short-circuit protection: 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
  • [Ith] conventional free air thermal current: 10 A conforming to EN/IEC 60947-5-1
  • [Ui] rated insulation voltage: 600 V (degree of pollution: 3) conforming to EN 60947-1
  • [Uimp] rated impulse withstand voltage: 6 kV conforming to EN 60947-1
  • [Ie] rated operational current: 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
  • electrical durability: 1000000 cycles, AC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
  • electrical reliability: ? < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4 ? < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4, ? < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4 ? < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4
  • range of product: Harmony XB5
  • height: 1.69 in (43 mm)
  • protective treatment: TH
  • product or component type: Complete emergency stop push-button Complete emergency switching off push-button, Complete emergency stop push-button Complete emergency switching off push-button
  • width: 1.57 in (40 mm)
  • ambient air temperature for storage: -40...158 F (-40...70 C)
  • device short name: XB5
  • depth: 3.23 in (82 mm)
  • ambient air temperature for operation: -40...158 F (-40...70 C)
  • bezel material: Plastic
  • terminals description ISO n1: (13-14)NO (11-12)NC, (13-14)NO (11-12)NC
  • overvoltage category: Class II conforming to IEC 60536
  • fixing collar material: Plastic
  • product weight: 0.16 lb(US) (0.072 kg)
  • IP degree of protection: IP69 IP67 IP66 conforming to IEC 60529 IP69K, IP69 IP67 IP66 conforming to IEC 60529 IP69K, IP69 IP67 IP66 conforming to IEC 60529 IP69K, IP69 IP67 IP66 conforming to IEC 60529 IP69K
  • mounting diameter: 0.87 in (22 mm)
  • resistance to high pressure washer: 1015.26 psi (7000000 Pa) at 131 F (55 C),distance: 0.1 m
  • NEMA degree of protection: NEMA 13 NEMA 4X, NEMA 13 NEMA 4X
  • sale per indivisible quantity: 1
  • contacts usage: Standard contacts
  • IK degree of protection: IK03 conforming to IEC 50102
  • shape of signaling unit head: Round
  • positive opening: With positive opening conforming to EN/IEC 60947-5-1 appendix K
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on XB5AS8445 . Santa Clara Systems carries 7,003 items from Telemecanique.
  • Red 40 Emergency Stop
  • Red 40 Emergency Stop
  • Switching Off 22 Trigger Latching Turn Release 1No+1Nc
