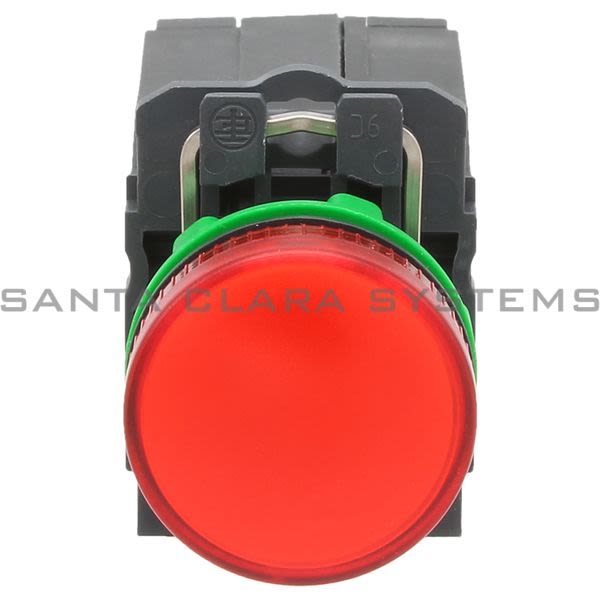

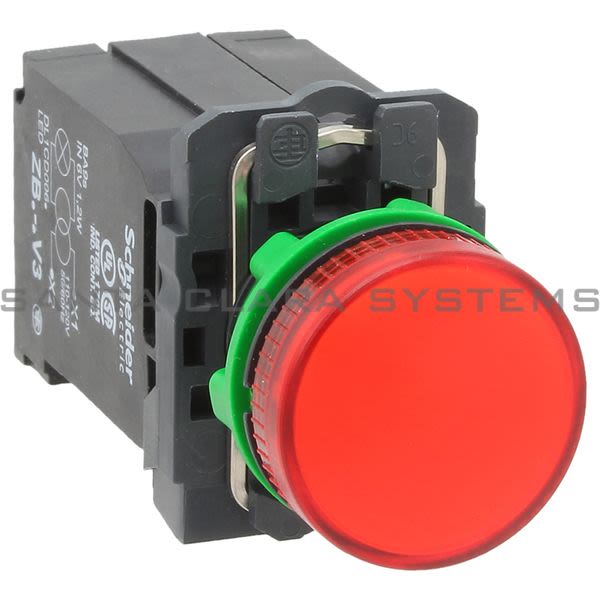

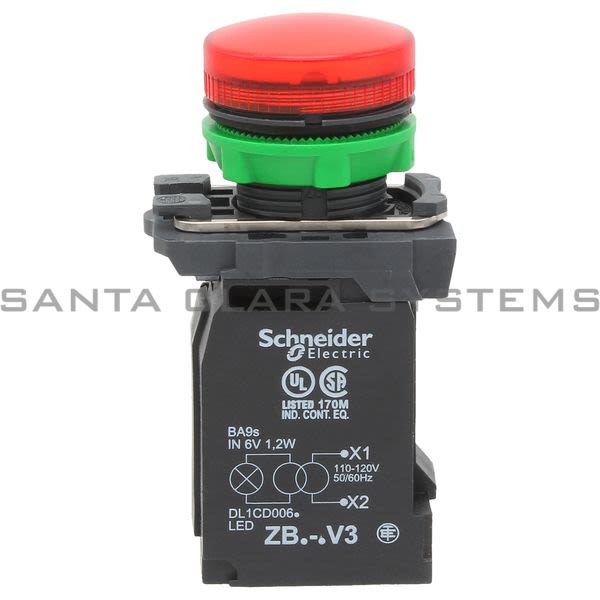

- Description: red complete pilot light Ø22 plain lens with BA9s bulb 110...120V
- Product weight: 0.24 lb(US) (0.109 kg)
- Range of product: Harmony XB5
- IP degree of protection: IP67, IP66 conforming to IEC 60529
- Standards: EN/IEC 60947-5-4, JIS C 4520, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508
- Device short name: XB5
- Width: 1.18 in (30 mm)
- Height: 1.65 in (42 mm)
- Depth: 2.17 in (55 mm)
- Protective treatment: TH
- [Ui] rated insulation voltage: 600 V (degree of pollution: 3) conforming to EN 60947-1
- [Uimp] rated impulse withstand voltage: 6 kV conforming to EN 60947-1
- Connections - terminals: Screw clamp terminals: <= 2 x 1.5 mm with cable end conforming to EN/IEC 60947-1, Screw clamp terminals: 1 x 0.22...2 x 2.5 mm without cable end conforming to EN/IEC 60947-1
- Vibration resistance: 5 gn (f = 12...500 Hz) conforming to IEC 60068-2-6
- Shock resistance: 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27
- [Us] rated supply voltage: 110...120 V AC, 50/60 Hz
- Overvoltage category: Class II conforming to IEC 60536
- Bezel material: Plastic
- Light source: Incandescent
- Product or component type: Complete pilot light
- Ambient air temperature for storage: -40...158 F (-40...70 C)
- Ambient air temperature for operation: -40...131 F (-40...55 C)

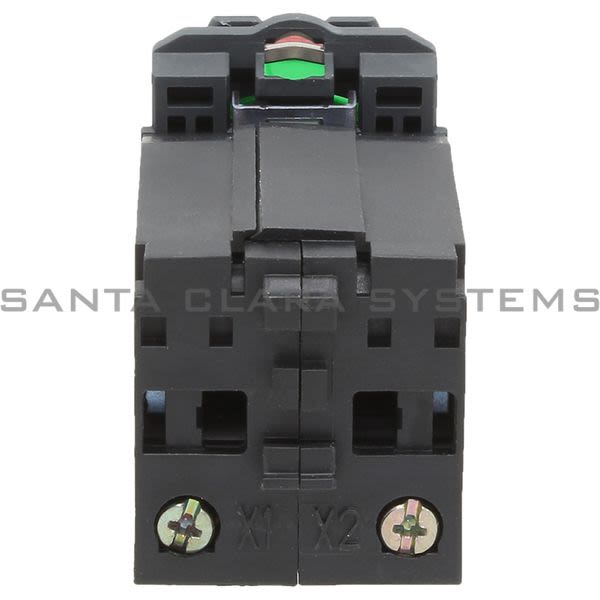

- terminals description ISO n1: (X1-X2)PL
- Electrical shock protection class: Class II conforming to IEC 60536
- Fixing collar material: Plastic
- Mounting diameter: 0.87 in (22 mm)
- Resistance to high pressure washer: 1015.26 psi (7000000 Pa) at 131 F (55 C),distance: 0.1 m
- Sale per indivisible quantity: 1
- NEMA degree of protection: NEMA 13, NEMA 4X
- Shape of signaling unit head: Round
- IK degree of protection: IK05 conforming to IEC 50102
- Cap/operator or lens colour: Red
- Operator additional information: With plain lens
- Signalling type: Steady
- Product certifications: CSA, UL listed
- Bulb base: BA 9s
- Light block supply: Via integral transformer, 1.2 VA - 6 V
- Light source colour: Red
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on XB5AV34 . Santa Clara Systems carries 10,300 items from Telemecanique.
- Red Complete Pilot Light Ø22 Plain Lens With Ba9s Bulb 110...120v
