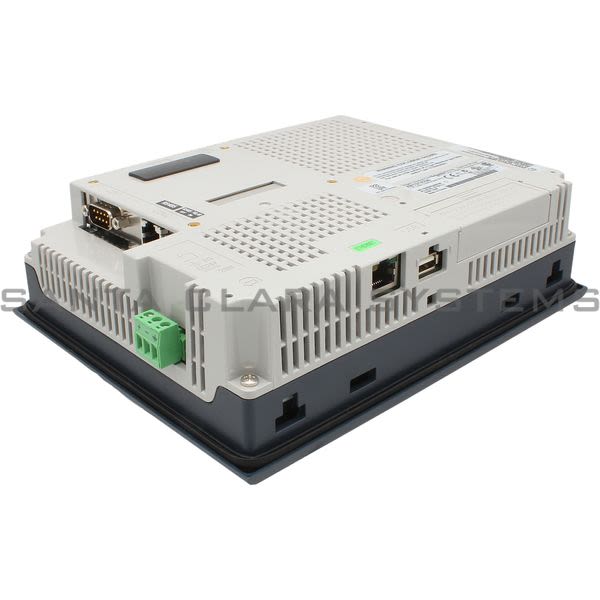

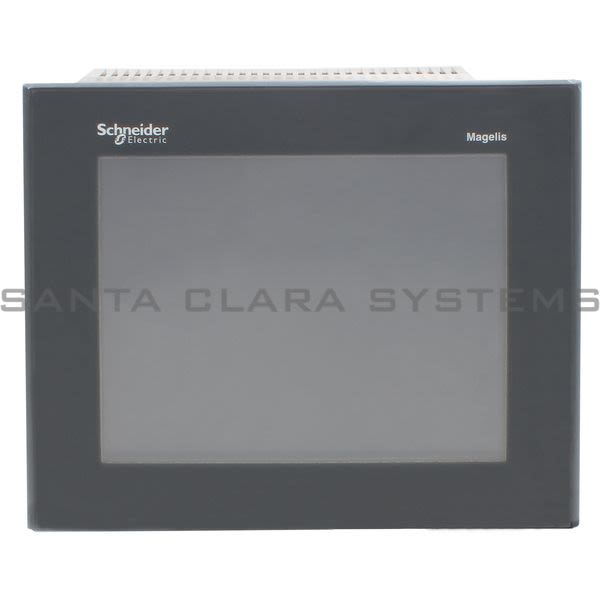

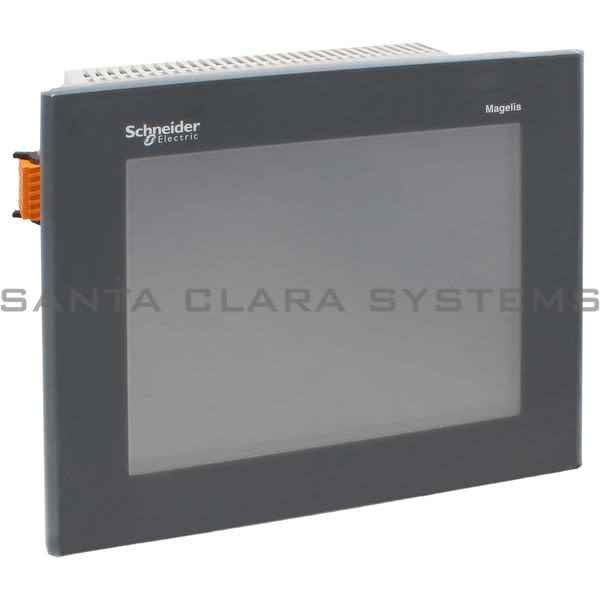

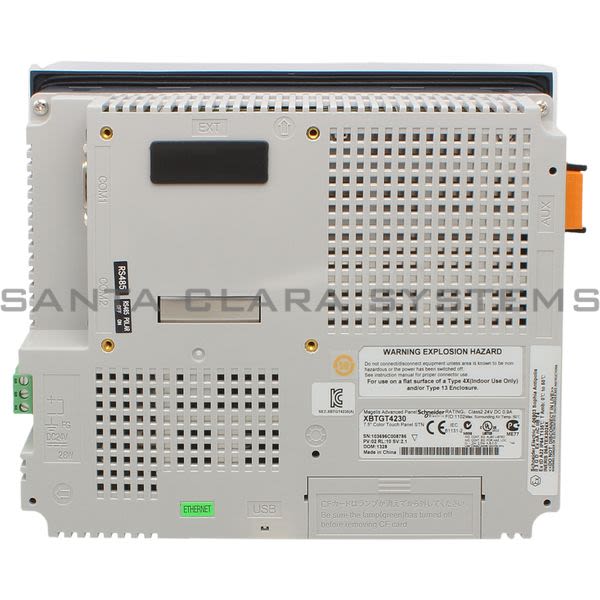

XBTGT4230

Telemecanique - advanced touchscreen panel - 640 x 480 pixels VGA - 7.5" - STN LCD - 24 V DC

Current response time:

By 5AM PT on Thursday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: advanced touchscreen panel - 640 x 480 pixels VGA - 7.5" - STN LCD - 24 V DC
Product weight: 2.2 lb(US) (1 kg)
Range of product: Magelis XBTGT
IP degree of protection: IP20 (rear panel) conforming to IEC 60529, IP65 (front panel) conforming to IEC 60529
Standards: IEC 61000-6-2, FCC Class A, UL 508, EN 61131-2
Width: 6.59 in (167.5 mm)
Height: 5.31 in (135 mm)
Depth: 2.34 in (59.5 mm)
Operating altitude: < 6561.68 ft (2000 m)
Shock resistance: 15 gn 11 ms conforming to IEC 60068-2-27
[Us] rated supply voltage: 24 V DC
Relative humidity: 0...90 % without condensation
Enclosure material: PPT
Touch sensitive zone: 1024 x 1024
Immunity to microbreaks: <= 5 ms
Product or component type: Advanced touchscreen panel
Touch panel: Analogue
Display type: Backlit colour TFT LCD
Backlight lifespan: 75000 hours
Product certifications: C-Tick, cULus
Display colour: 65536 colours
Brightness: 8 levels via touch panel
Ambient air temperature for operation: 32...122 F (0...50 C)
Display resolution: 320 x 240 pixels QVGA
Character font: Taiwanese (traditional Chinese), Chinese (simplified Chinese), Korean, ASCII (European characters), Japanese (ANK, Kanji)
Ambient air temperature for storage: -4...140 F (-20...60 C)

Display size: 5.7 inch
Software type: Configuration software
Supply: External source
Software designation: Vijeo Designer
Supply voltage limits: 19.2...28.8 V
Operating system: Magelis
Inrush current: <= 30 A
Processor name: CPU RISC
power consumption in W: 26 W
Resistance to electromagnetic fields: 9.14 V/yd (10 V/m) conforming to IEC 61000-4-3
Processor frequency: 266 MHz
Local signalling: 1 LED with green or orange for normal operation or backlighting faulty
Resistance to fast transients: 2 kV conforming to IEC 61000-4-4 level 3
Memory description: 512 kB SRAM back up of data with lithium battery back-up
Number of pages: Limited by internal memory capacity
Resistance to electrostatic discharge: 6 kV conforming to IEC 61000-4-2 level 3
Downloadable protocols: FIPWAY Telemecanique Modicon, Modbus Plus Telemecanique Modicon, Modbus TCP Telemecanique Modicon, Modbus Telemecanique Modicon, Third party protocols Mitsubishi Melsec, Third party protocols Omron Sysmac, Third party protocols Rockwell Automation Allen-Bradley, Third party protocols Siemens Simatic, Uni-TE Telemecanique Modicon
Cut-out dimensions: 156 (+ 1/- 0) x 123.5 (+ 1/- 0) mm
Realtime clock: Built-in
Use of slot: For 1 fieldbus communication card (Device Net, Profibus DP)
port Ethernet: 10BASE-T/100BASE-TX
Product mounting: Flush mounting
Fixing mode: By 2 spring clips, By 4 screw clamps
Front material: Aluminium alloy
Marking: CE
