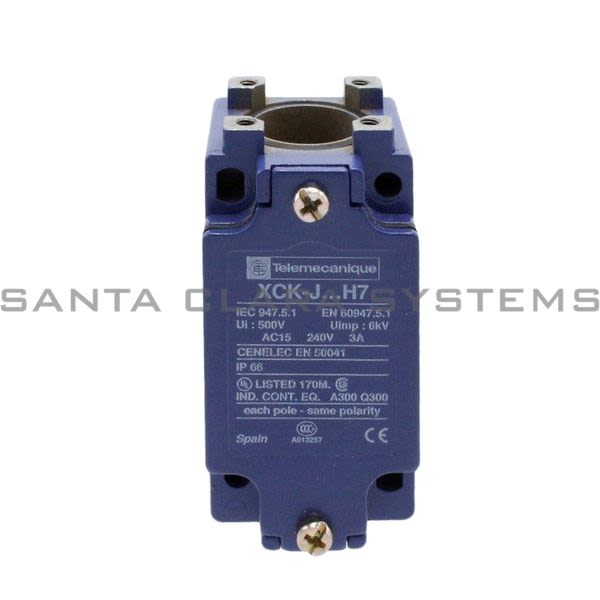

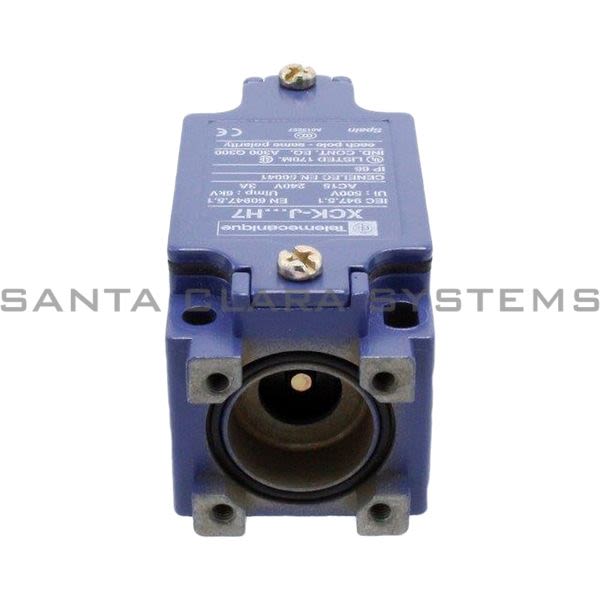

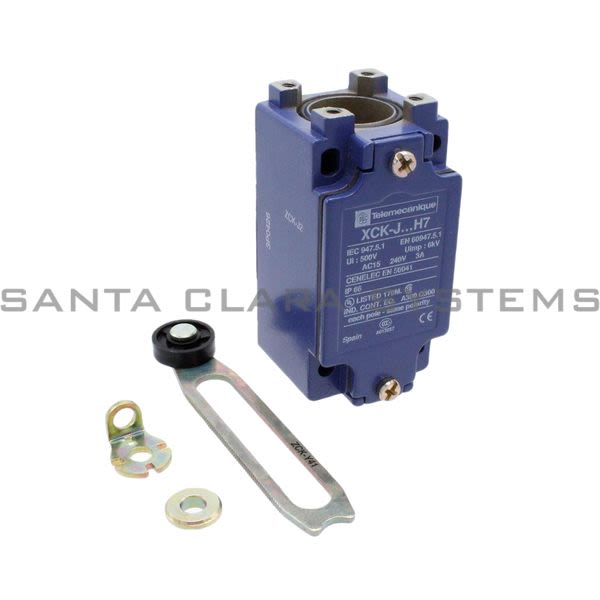

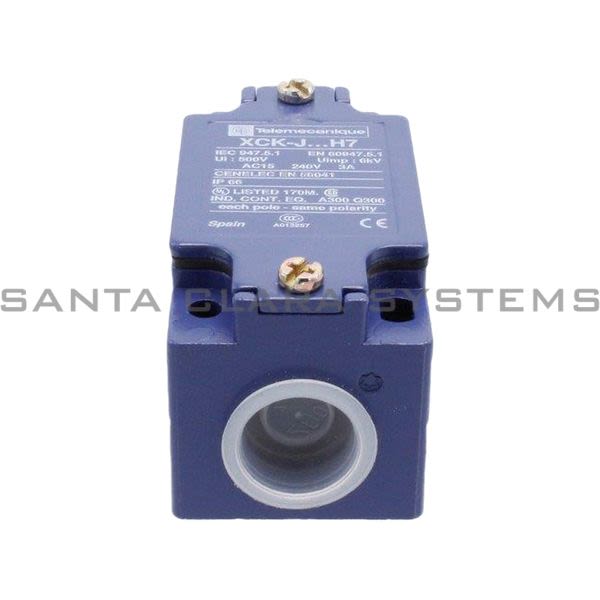

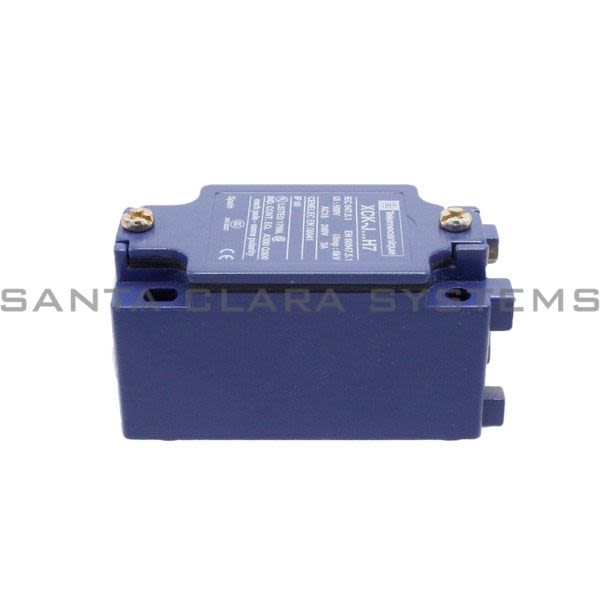

XCKJ20541H7

Telemecanique - LIMIT SWITCH 240 VAC 10 AMP XCKJ +OPTIONS

Current response time:

By 5AM PT on Thursday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: LIMIT SWITCH 240 VAC 10 AMP XCKJ +OPTIONS
Range of product: OsiSense XC
IP degree of protection: IP66 conforming to IEC 60529
Standards: UL 508, CENELEC EN 50041, EN 60204-1, IEC 60947-5-1, IEC 60204-1, EN 60947-5-1, CSA C22.2 No 14
Device short name: XCKJ
Width: 1.57 in (40 mm)
Height: 3.03 in (77 mm)
Depth: 1.73 in (44 mm)
Protective treatment: TC
[Ui] rated insulation voltage: 300 V conforming to CSA C22.2 No 14, 500 V degree of pollution 3 conforming to IEC 60947-1, 300 V conforming to UL 508
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60664, 6 kV conforming to IEC 60947-1
Mechanical durability: 30000000 cycles
Shock resistance: 50 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance: 25 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
Electrical durability: 5000000 cycles, DC-13, inductive load type, 24 V, 10 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive load type, 48 V, 7 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Electrical connection: Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm
[Ie] rated operational current: 3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A, 0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A
Overvoltage category: Class I conforming to NF C 20-030, Class I conforming to IEC 61140
Material: Metal
Number of poles: 2
Head type: Rotary head
Series name: Standard format
Contacts insulation form: Zb

Product or component type: Limit switch
Number of steps: 1
Positive opening: Without
IK degree of protection: IK07 conforming to EN 50102
Sensor design: -
Minimum torque for tripping: 2.21 lbf.in (0.25 N.m)
Body type: Fixed
Ambient air temperature for operation: -13...158 F (-25...70 C)
[Ithe] conventional enclosed thermal current: 10:00 AM
Ambient air temperature for storage: -40...158 F (-40...70 C)
Body material: Zamak
Resistance across terminals: <= 25 MOhm conforming to IEC 60255-7 category 3
Product certifications: CSA, CCC, UL
Head material: Zamak
Fixing mode: By the body
Short-circuit protection: 10 A by gG cartridge fuse
Movement of operating head: Rotary
Type of operator: Spring return without operating lever
Type of approach: Lateral approach 1 or 2 programmable direction
Cable entry: 1 entry tapped for 1/2" NPT cable gland
Contacts type and composition: 1 C/O
terminals description ISO n1: (21-22)NC, (13-14)NO
Contact operation: Snap action, simultaneous

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on XCKJ20541H7 . Santa Clara Systems carries 10,301 items from Telemecanique.
