XCKML115

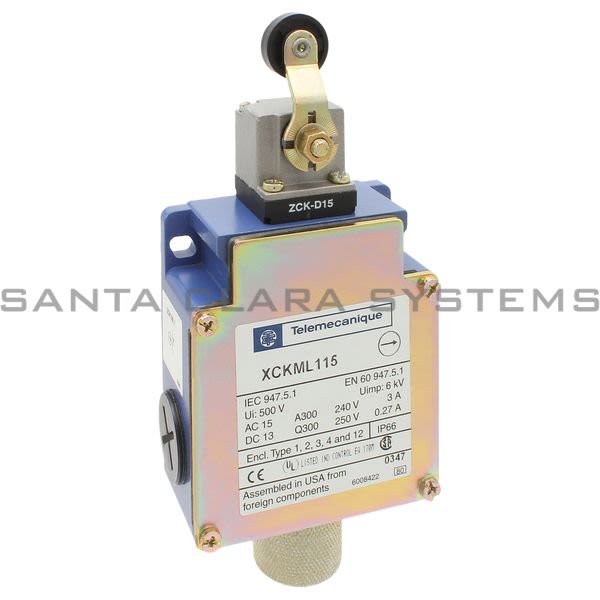

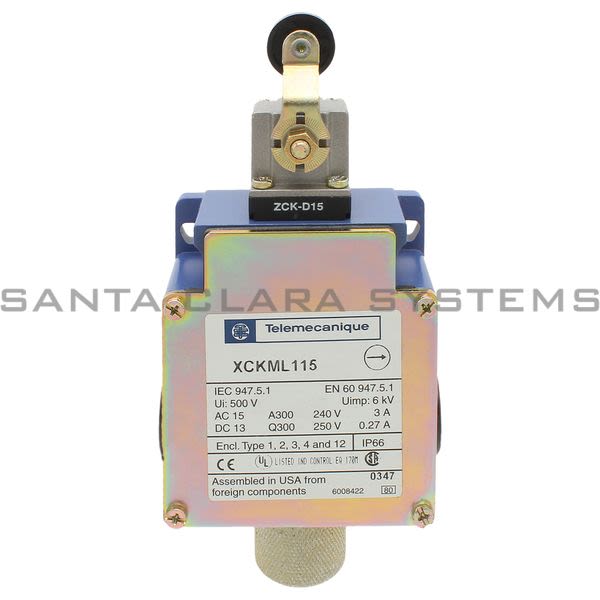

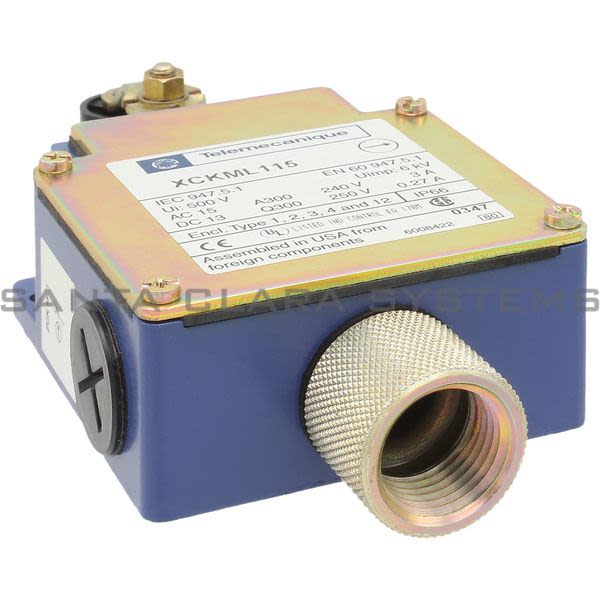

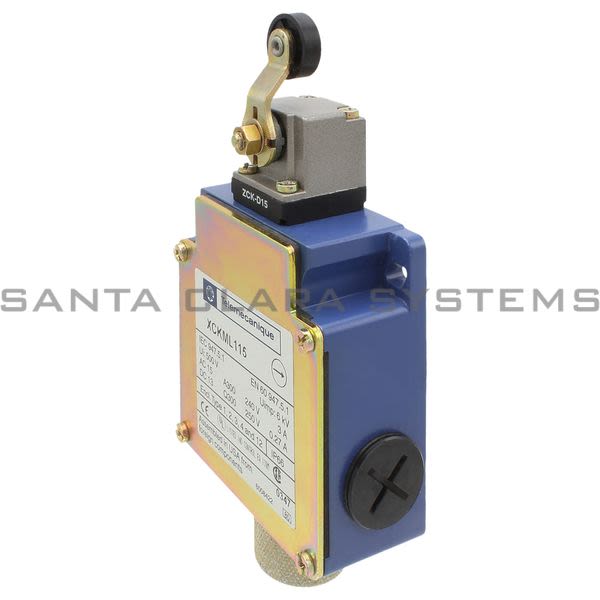

Telemecanique - limit switch XCKML - thermoplastic roller lever - 2x(1NC+1NO) - snap - Pg13

Product Summary:

Product weight: 0.95 lb(US) (0.43 kg)
Range of product: OsiSense XC
IP degree of protection: IP66 conforming to EN/IEC 60529
Standards: CSA C22.2 No 14IEC 60204-1UL 508EN 60947-5-1EN 60204-1IEC 60947-5-1
Device short name: XCKML

Current response time:

4 Minutes 3 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: limit switch XCKML - thermoplastic roller lever - 2x(1NC+1NO) - snap - Pg13
Product weight: 0.95 lb(US) (0.43 kg)
Range of product: OsiSense XC
IP degree of protection: IP66 conforming to EN/IEC 60529
Standards: CSA C22.2 No 14IEC 60204-1UL 508EN 60947-5-1EN 60204-1IEC 60947-5-1
Device short name: XCKML
Width: 3.03 in (77 mm)
Height: 3.19 in (81 mm)
Depth: 1.42 in (36 mm)
Protective treatment: TC
[Ui] rated insulation voltage: 300 V conforming to CSA C22.2 No 14500 V degree of pollution 3 conforming to IEC 60947-1300 V conforming to UL 508
[Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 606646 kV conforming to IEC 60947-1
Mechanical durability: 3000000 cycles
Shock resistance: 50 gn (duration = 11 ms) conforming to EN/IEC 60068-2-27
Vibration resistance: 25 gn (f = 10...500 Hz) conforming to EN/IEC 60068-2-6
Electrical durability: 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13, inductive load type, 24 V, 7 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13, inductive load type, 48 V, 10 W, operating rate: <= 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Electrical connection: Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Material: Metal
Number of poles: 4
Head type: Rotary head
Switch actuation: By 30° cam
Series name: Standard format
Product or component type: Limit switch
Contacts insulation form: Zb

Number of steps: 1
IK degree of protection: IK05 conforming to EN 50102
Body type: Fixed
Positive opening: With
Electrical shock protection class: Class I conforming to IEC 61140Class I conforming to NF C 20-030
Positive opening minimum torque: 4.42 lbf.in (0.5 N.m)
Ambient air temperature for operation: -13...158 °F (-25...70 °C)
Minimum torque for tripping: 1.77 lbf.in (0.2 N.m)
Ambient air temperature for storage: -40...158 °F (-40...70 °C)
Body material: Zamak
Minimum actuation speed: 0.01 m/min
Fixing mode: By the body
Maximum actuation speed: 4.92 ft/s (1.5 m/s)
Product certifications: CSAUL
Movement of operating head: Rotary
[Ithe] conventional enclosed thermal current: 10 A AC
Type of operator: Spring return roller lever thermoplastic
Type of approach: Lateral approach 2 directions
Resistance across terminals: <= 25 MOhm conforming to IEC 60255-7 category 3
Cable entry: 3 entries tapped for Pg 13.5 cable gland, cable outer diameter: 0.35...0.47 in (9...12 mm)
Contacts type and composition: 2 x (1 NC + 1 NO)
Contact operation: Snap action
terminals description ISO n°1: (13-14)NO(21-22)NC
