• Telemecanique XCRT115 Barcode

XCRT115

Product Summary:

  • range of product: OsiSense XC
  • body material: Zinc alloy
  • series name: Special format
  • switch actuation: By conveyor belt
  • product or component type: Limit switch
Get a Quote

Current response time:

13 Minutes 40 Seconds

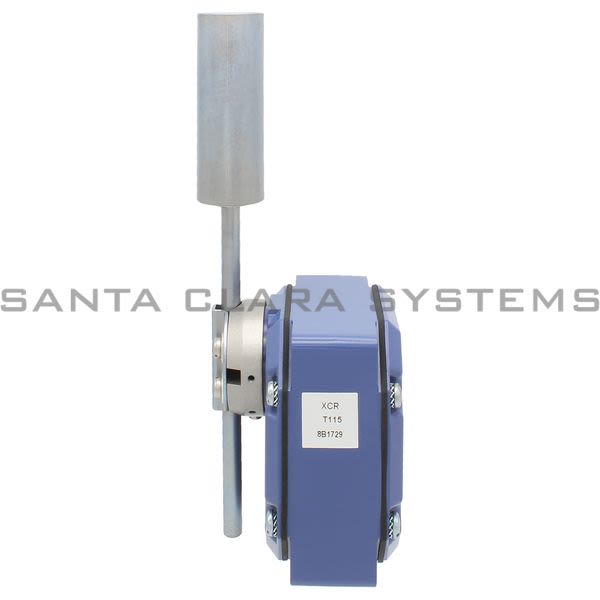

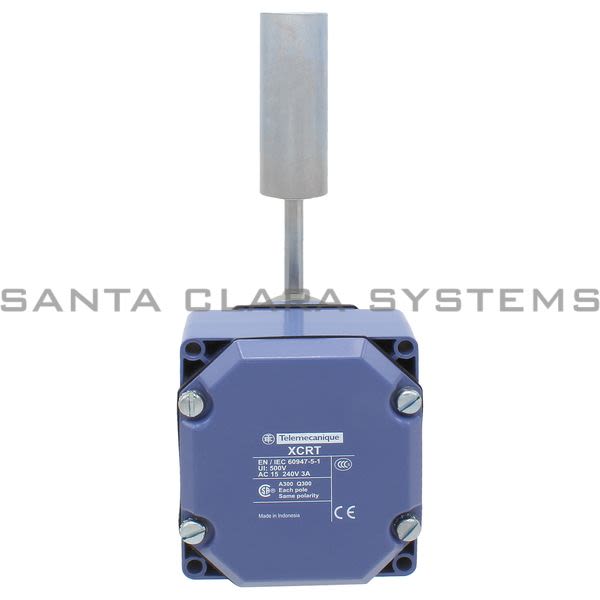

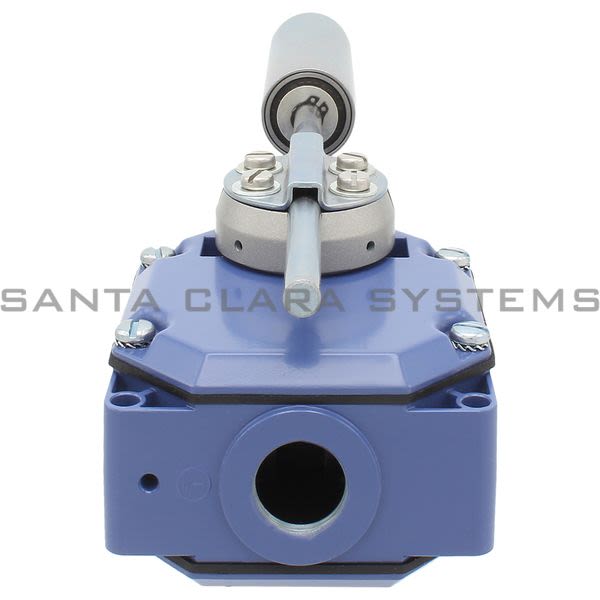

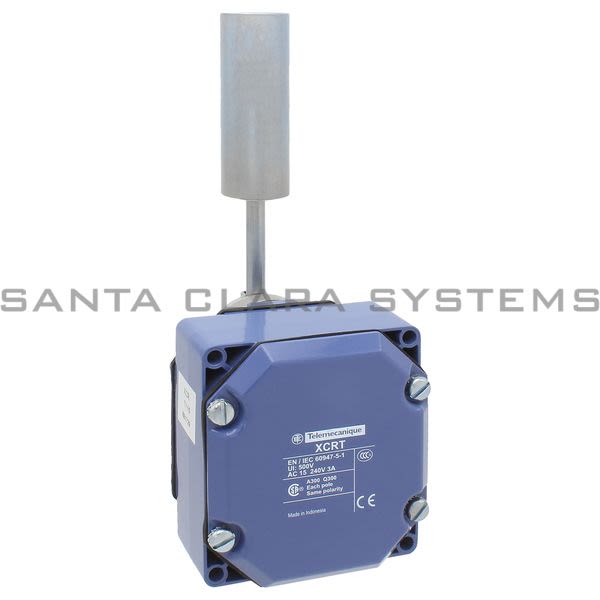

  • Description: limit switch XCRT - metal enclosure zinc plated steel roller with lever - 2C/O
  • maximum displacement angle: -90 90 , -90 90
  • fixing mode: By the body
  • contact code designation: A300, AC-15 240 V, Ie = 3 A) conforming to EN/IEC 60947-5-1 appendix A Q300, DC-13 250 V, Ie = 0.27 A) conforming to EN/IEC 60947-5-1 appendix A, A300, AC-15 240 V, Ie = 3 A) conforming to EN/IEC 60947-5-1 appendix A Q300, DC-13 250 V, Ie = 0.27 A) conforming to EN/IEC 60947-5-1 appendix A
  • movement of operating head: Rotary
  • [Ui] rated insulation voltage: 300 V conforming to CSA C22.2 No 14 500 V degree of pollution 3 conforming to IEC 60947-1 500 V degree of pollution 3 conforming to VDE 0110 300 V conforming to UL 508, 300 V conforming to CSA C22.2 No 14 500 V degree of pollution 3 conforming to IEC 60947-1 500 V degree of pollution 3 conforming to VDE 0110 300 V conforming to UL 508, 300 V conforming to CSA C22.2 No 14 500 V degree of pollution 3 conforming to IEC 60947-1 500 V degree of pollution 3 conforming to VDE 0110 300 V conforming to UL 508, 300 V conforming to CSA C22.2 No 14 500 V degree of pollution 3 conforming to IEC 60947-1 500 V degree of pollution 3 conforming to VDE 0110 300 V conforming to UL 508
  • type of operator: Zinc plated steel spring return roller (with lever)
  • resistance across terminals: <= 25 MOhm conforming to IEC 60255-7 category 3
  • type of approach: 2 directions lateral approach
  • [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60664 6 kV conforming to IEC 60947-1, 6 kV conforming to IEC 60664 6 kV conforming to IEC 60947-1
  • electrical connection: Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm
  • short-circuit protection: 10 A by gG cartridge fuse
  • number of poles: 2
  • electrical durability: 5000000 cycles, DC-13 inductive load type, 120 V, 4 W, load factor: 0.5, operating rate: <= 60 cyc/mn IEC 60947-5-1 appendix C 5000000 cycles, DC-13 inductive load type, 24 V, 7 W, load factor: 0.5, operating rate: <= 60 cyc/mn IEC 60947-5-1 appendix C 5000000 cycles, DC-13 inductive load type, 48 V, 10 W, load factor: 0.5, operating rate: <= 60 cyc/mn IEC 60947-5-1 appendix C, 5000000 cycles, DC-13 inductive load type, 120 V, 4 W, load factor: 0.5, operating rate: <= 60 cyc/mn IEC 60947-5-1 appendix C 5000000 cycles, DC-13 inductive load type, 24 V, 7 W, load factor: 0.5, operating rate: <= 60 cyc/mn IEC 60947-5-1 appendix C 5000000 cycles, DC-13 inductive load type, 48 V, 10 W, load factor: 0.5, operating rate: <= 60 cyc/mn IEC 60947-5-1 appendix C, 5000000 cycles, DC-13 inductive load type, 120 V, 4 W, load factor: 0.5, operating rate: <= 60 cyc/mn IEC 60947-5-1 appendix C 5000000 cycles, DC-13 inductive load type, 24 V, 7 W, load factor: 0.5, operating rate: <= 60 cyc/mn IEC 60947-5-1 appendix C 5000000 cycles, DC-13 inductive load type, 48 V, 10 W, load factor: 0.5, operating rate: <= 60 cyc/mn IEC 60947-5-1 appendix C
  • contacts type and composition: 2 C/O
  • mechanical durability: 300000 cycles
  • contact operation: Snap action
  • width: 3.35 in (85 mm)
  • contact block per direction [control circuit]: 2 per direction
  • height: 3.74 in (95 mm)
  • positive opening: Without
  • depth: 2.95 in (75 mm)
  • product weight: 2.58 lb(US) (1.17 kg)
  • terminals description ISO n1: (11-12)NC (13-14)NO, (11-12)NC (13-14)NO
  • range of product: OsiSense XC
  • body material: Zinc alloy
  • shock resistance: 30 gn (duration = 18 ms) conforming to IEC 60068-2-27
  • series name: Special format
  • switch actuation: By conveyor belt
  • vibration resistance: 9 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
  • product or component type: Limit switch
  • cable entry: 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 0.35...0.47 in (9...12 mm) conforming to NF C 68-300
  • IP degree of protection: IP65 conforming to IEC 60529
  • product specific application: For conveyor belt shift monitoring
  • contacts insulation form: Za
  • overvoltage category: Class I conforming to NF C 20-030 Class I conforming to IEC 61140, Class I conforming to NF C 20-030 Class I conforming to IEC 61140
  • device short name: XCRT
  • number of steps: 2
  • ambient air temperature for operation: -13...158 F (-25...70 C)
  • sensor design: -
  • minimum torque for tripping: 8.85 lbf.in (1 N.m)
  • ambient air temperature for storage: -40...158 F (-40...70 C)
  • body type: Fixed
  • minimum actuation speed: 0.01 m/min
  • protective treatment: TC
  • head type: Rotary head
  • tripping angle: 10 for fault signalling 18 for stopping of the conveyor belt, 10 for fault signalling 18 for stopping of the conveyor belt
  • standards: EN 60204-1 NF C 79-130 CSA C22.2 No 14 EN 60947-5-1 IEC 60947-5-1 IEC 60204-1, EN 60204-1 NF C 79-130 CSA C22.2 No 14 EN 60947-5-1 IEC 60947-5-1 IEC 60204-1, EN 60204-1 NF C 79-130 CSA C22.2 No 14 EN 60947-5-1 IEC 60947-5-1 IEC 60204-1, EN 60204-1 NF C 79-130 CSA C22.2 No 14 EN 60947-5-1 IEC 60947-5-1 IEC 60204-1, EN 60204-1 NF C 79-130 CSA C22.2 No 14 EN 60947-5-1 IEC 60947-5-1 IEC 60204-1, EN 60204-1 NF C 79-130 CSA C22.2 No 14 EN 60947-5-1 IEC 60947-5-1 IEC 60204-1
  • material: Metal
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on XCRT115 . Santa Clara Systems carries 7,008 items from Telemecanique.
  • Limit Switch Xcrt - Metal Enclosure Zinc Plated Steel Roller With Lever - 2C/O
