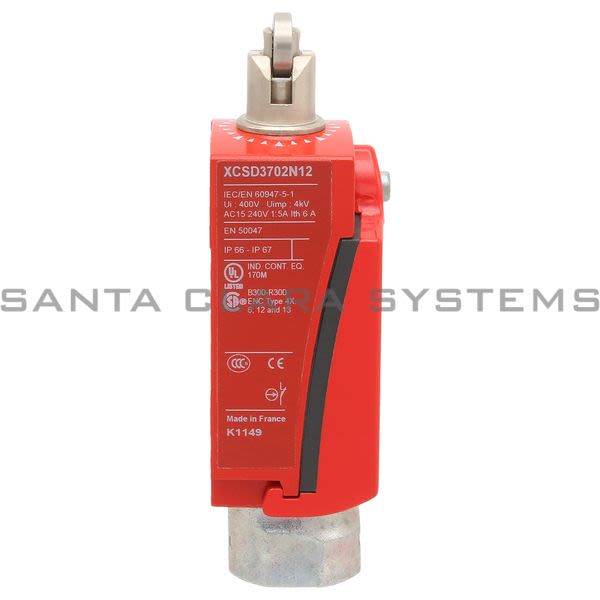

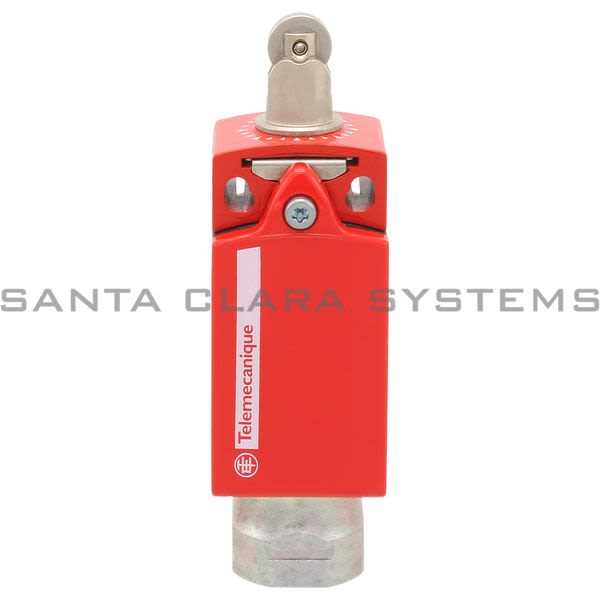

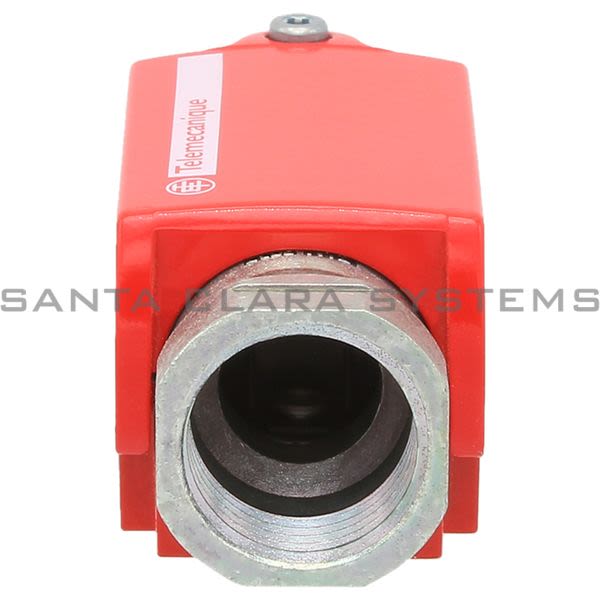

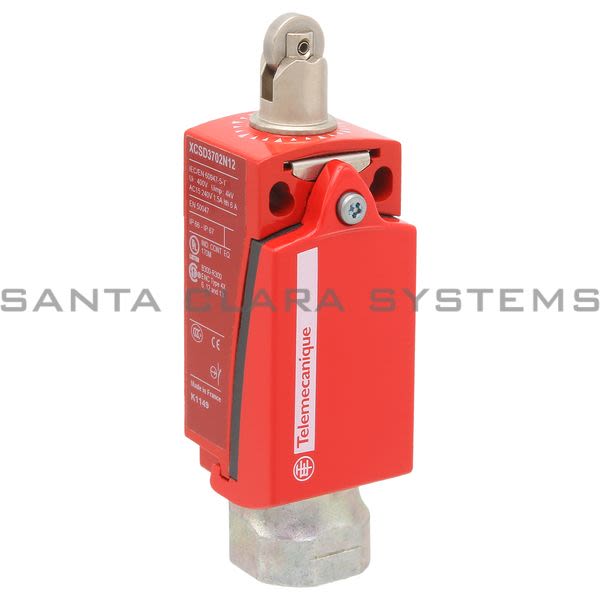

XCSD3702N12

Telemecanique - Safety Switch

Product Summary:

Product weight: 0.56 lb(US) (0.255 kg)
Range of product: Preventa Safety detection
IP degree of protection: IP66 conforming to IEC 60529IP67 conforming to IEC 60529
Standards: EN 1088/ISO 14119UL 508CSA C22.2 No 14EN/IEC 60947-5-1EN/IEC 60204-1
Width: 1.34 in (34 mm)

Current response time:

17 Minutes 56 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Safety Switch
Product weight: 0.56 lb(US) (0.255 kg)
Range of product: Preventa Safety detection
IP degree of protection: IP66 conforming to IEC 60529IP67 conforming to IEC 60529
Standards: EN 1088/ISO 14119UL 508CSA C22.2 No 14EN/IEC 60947-5-1EN/IEC 60204-1
Width: 1.34 in (34 mm)
Height: 3.94 in (100 mm)
Depth: 1.38 in (35 mm)
Protective treatment: TC
[Ui] rated insulation voltage: 300 V conforming to CSA C22.2 No 14400 V (degree of pollution: 3) conforming to EN/IEC 60947-1300 V conforming to UL 508
[Uimp] rated impulse withstand voltage: 4 kV conforming to EN/IEC 60947-14 kV conforming to IEC 60664
Mechanical durability: 10000000 cycles
Vibration resistance: 25 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
Shock resistance: 50 gn 11 ms conforming to IEC 60068-2-27
Electrical connection: Terminal
Material: Metal
Number of poles: 3
Head type: Plunger head
Enclosure material: Plastic
Product or component type: Safety limit switch
Clamping connection capacity: 1 x 0.34...2 x 0.75 mm²
Product certifications: CSAUL
Component name: XCSD
Switch actuation: By 30° cam

Safety level: Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508
Design: Compact
Safety reliability data: B10d = 50000000 (value given for a life time of 20 years limited by mechanical or contact wear)
Positive opening: With NC contact
Ambient air temperature for operation: -13...158 °F (-25...70 °C)
Protection technology: Plastic protective cover, secured by 5-lobe socket head safety screw
Minimum force for tripping: 12 N
Ambient air temperature for storage: -40...158 °F (-40...70 °C)
Type of operator: Steel roller plunger
Positive opening minimum force: 36 N
Contacts type and composition: 1 NC + 1 NC + 1 NO
Maximum actuation speed: 1.64 ft/s (0.5 m/s)
Contact operation: Slow-break, break before make
Contact code designation: B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix AR300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A
Electrical shock protection class: Class I conforming to EN/IEC 61140Class I conforming to NF C 20-030
Cable entry: 1 entry tapped 1/2" NPT
[Ithe] conventional enclosed thermal current: 6:00 AM
IK degree of protection: IK06 conforming to EN 50102
Resistance across terminals: <= 25 MOhm conforming to IEC 60255-7 category 3
Short-circuit protection: 6 A cartridge fuse type gG (gl)
Repeat accuracy: 0.1 mm on tripping points, 1 million operating cycles for head with end plunger
Body material: Zamak
Head material: Zamak
