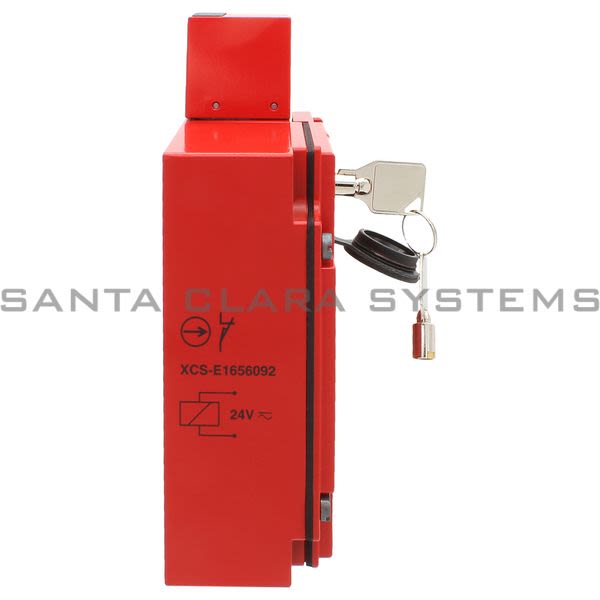

• Telemecanique XCSE1656092 SAFETY INTERLOCK LIMIT SWITCH 300VAC 5A T-XCS Product Image

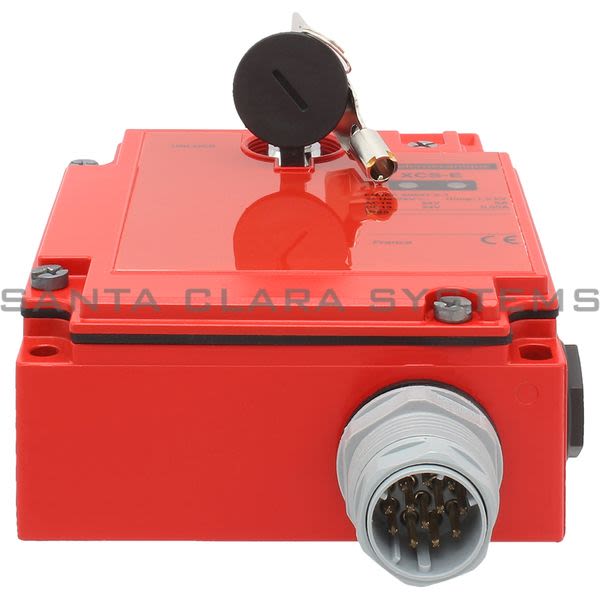

  • Telemecanique XCSE1656092 SAFETY INTERLOCK LIMIT SWITCH 300VAC 5A T-XCS Product Image

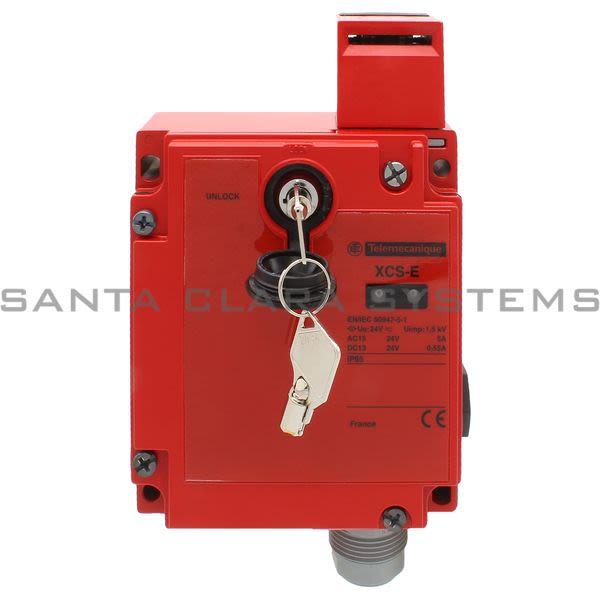

  • Telemecanique XCSE1656092 SAFETY INTERLOCK LIMIT SWITCH 300VAC 5A T-XCS Product Image

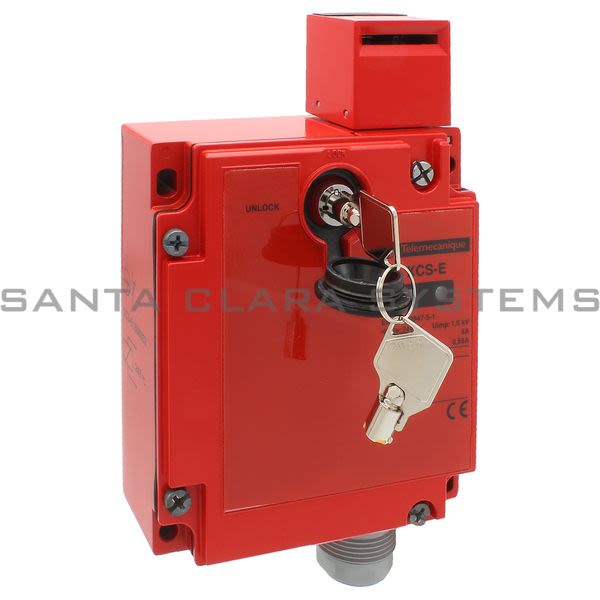

  • Telemecanique XCSE1656092 SAFETY INTERLOCK LIMIT SWITCH 300VAC 5A T-XCS Product Image
  • Telemecanique XCSE1656092 Barcode

XCSE1656092

Get a Quote

Current response time:

18 Minutes 28 Seconds
  • Description: SAFETY INTERLOCK LIMIT SWITCH 300VAC 5A T-XCS
  • Product weight: 0.32 lb(US) (0.146 kg)
  • Range of product: Preventa Safety detection
  • IP degree of protection: IP67 conforming to IEC 60529
  • Standards: CSA C22.2 No 14EN/ISO 12100EN/IEC 60947-5-1UL 508EN/IEC 60204-1
  • Protective treatment: TH
  • [Ui] rated insulation voltage: 100 V DC
  • [Uimp] rated impulse withstand voltage: 2.5 kV conforming to EN/IEC 60947-5-1
  • System Voltage: 24 V DC
  • Vibration resistance: 10 gn (f = 10...150 Hz) conforming to IEC 60068-2-6
  • Shock resistance: 30 gn 11 ms conforming to IEC 60068-2-27
  • Electrical durability: 1200000 cycles
  • Electrical connection: Connector on flying lead
  • Insulation resistance: 1000 MOhm
  • [Ie] rated operational current: <= 100 mA
  • Switching frequency: 150 Hz
  • Material: Plastic
  • Breaking capacity: <= 3 VA
  • Number of poles: 2
  • Enclosure material: Thermoplastic PBT
  • Cable length: 0.49 ft (0.15 m)
  • Length: 1.54 in (39 mm)
  • Size: Ø 30 x 38.5 mm
  • [Sa] assured operating distance: 0.31 in (8 mm)
  • Product or component type: Coded magnetic switch
  • [Sar] assured tripping distance: 0.79 in (20 mm)
  • Product certifications: CSAULBG
  • Component name: XCSDMR
  • Design: Cylindrical
  • Ambient air temperature for operation: -13...185 °F (-25...85 °C)
  • Resistance across terminals: 57 Ohm
  • Ambient air temperature for storage: -40...185 °F (-40...85 °C)
  • Contacts type and composition: 2 NC
  • Short-circuit protection: 500 mA external cartridge fuse type gG (gl)
  • Contact operation: Staggered
  • Contacts material: Rhodium
  • Sensitivity to magnetic fields: >= 0.3 mT
  • Maximum switching voltage: DC
  • Electrical shock protection class: Class II conforming to EN/IEC 61140
  • Connector type: M12
  • switching capacity in mA: 5...100 mA
  • Local signalling: 1 LED
  • Approach directions: 1 direction
  • Safety level: Can reach category 4 (with the appropriate monitoring system and correctly wired) conforming to EN/ISO 13849-1Can reach PL = e (with the appropriate monitoring system and correctly wired) conforming to EN/ISO 13849-1Can reach SIL 3 (with the appropriate monitoring system and correctly wired) conforming to EN/IEC 61508
  • Safety reliability data: B10d = 50000000 (value given for a life time of 20 years limited by mechanical or contact wear)
  • Cable material: PVC
  • Diameter: 1.18 in (30 mm)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on XCSE1656092 . Santa Clara Systems carries 10,459 items from Telemecanique.
  • Safety Interlock Limit Switch 300vac 5a T-Xcs
