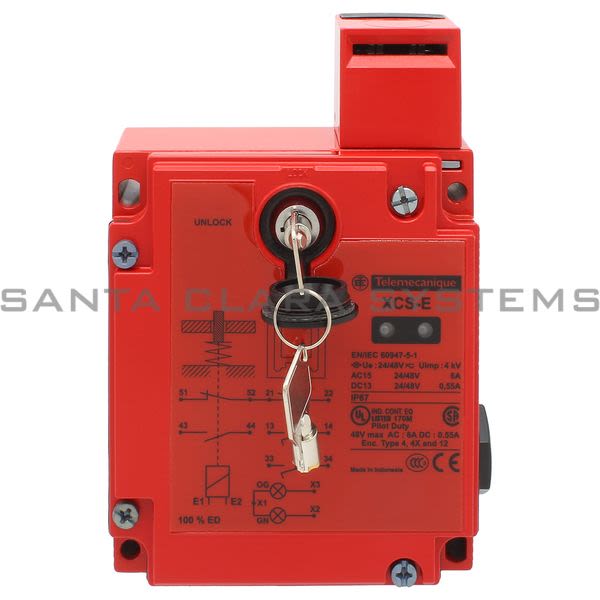

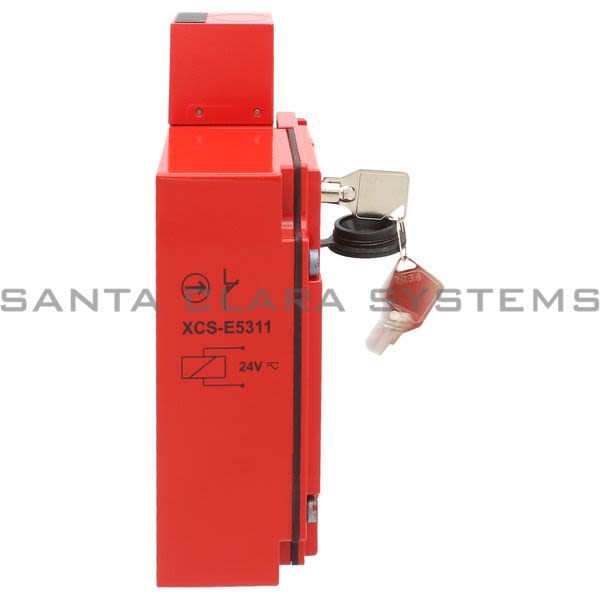

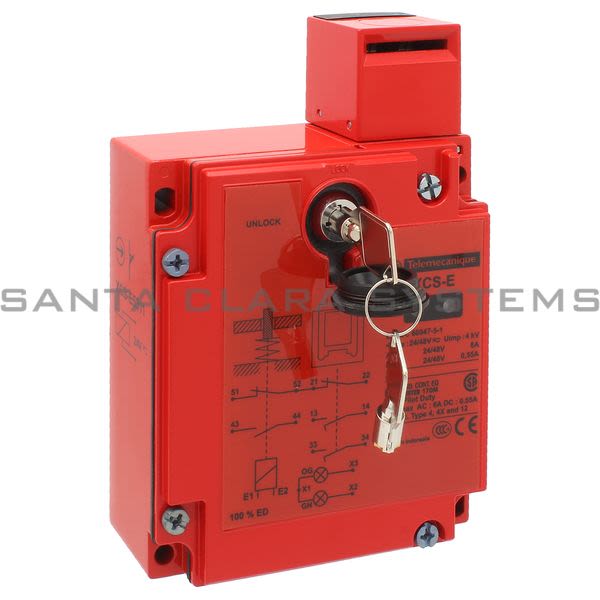

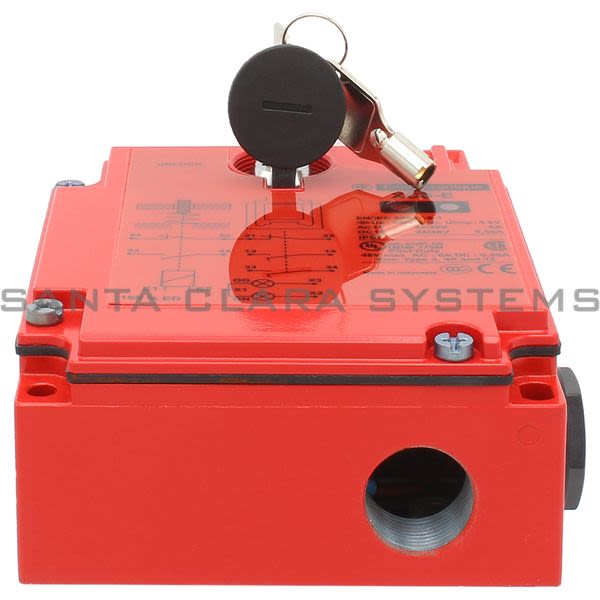

- Description: metal safety switch XCSE - 1NC+2NO - slow break - 2 entries tapped Pg 13- 24V
- Product weight: 2.51 lb(US) (1.14 kg)
- Range of product: Preventa Safety detection
- IP degree of protection: IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
- Standards: CSA C22.2 No 14, UL 508, EN 1088/ISO 14119, EN/ISO 12100, EN/IEC 60204-1, EN/IEC 60947-5-1
- Width: 3.86 in (98 mm)
- Height: 5.75 in (146 mm)
- Depth: 1.73 in (44 mm)
- Protective treatment: TC
- [Ui] rated insulation voltage: 50 V for signalling circuit conforming to EN/IEC 60947-1
- [Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-5-1
- Mechanical durability: >= 1000000 cycles
- Operating rate: 10 cyc/mn for maximum durability
- Vibration resistance: 5 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
- Shock resistance: 10 gn 11 ms conforming to IEC 60068-2-27
- Electrical connection: Terminal, 1 x 0.5...2 x 1.5 mm with or without cable end
- [Ie] rated operational current: 0.55 A at 125 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1, 3 A at 120 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-1, 1.5 A at 240 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-1
- [Us] rated supply voltage: 24 V (- 20...10 %)
- Protection type: Overvoltage protection signalling circuit
- Material: Metal
- Number of poles: 3
- Head type: Key operated turret head
- Positive opening: With NC contact
- Product or component type: Safety switch
- Supply voltage type: AC/DC
- Product certifications: UL, CSA
- Component name: XCSE
- Supply frequency: 50/60 Hz
- Design: Rectangular
- Load factor: 1
- Ambient air temperature for operation: -13...104 F (-25...40 C)
- power consumption in VA: 10 VA (inrush), 10 VA (sealed)
- Ambient air temperature for storage: -40...158 F (-40...70 C)
- Signalling circuit type: AC/DC
- Contacts type and composition: 1 NC + 2 NO
- Signalling circuit consumption: 7 mA
- Contact operation: Slow-break, break before make
- Electrical shock protection class: Class I conforming to EN/IEC 61140
- Solenoid contacts type and composition: 1 NC + 1 NO (slow-break, simultaneous)
- Minimum actuation speed: 0.03 ft/s (0.01 m/s)
- Cable entry: 2 entries tapped Pg 13.5
- Maximum actuation speed: 1.64 ft/s (0.5 m/s)
- Electromagnet interlocking: Locking on de-energisation and unlocking on energisation of solenoid
- [Ithe] conventional enclosed thermal current: 6:00 AM
- Cable outer diameter: 0.35...0.47 in (9...12 mm)
- Locking options description: With interlocking, locking by solenoid
- Short-circuit protection: 10 A cartridge fuse type gG (gl)
- Local signalling: 2 LEDs green or orange (guard open/guard closed and locked)
- Actuator forcible withdrawal rtc: 2000 N
- Signalling circuit voltage: 24/48 V (voltage limits: 20...52 V)
- Actuator force for extraction: >= 20 N
- Safety level: Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
- Safety reliability data: B10d = 5000000 (value given for a life time of 20 years limited by mechanical or contact wear)
- Body material: Zamak
- Head material: Zamak
