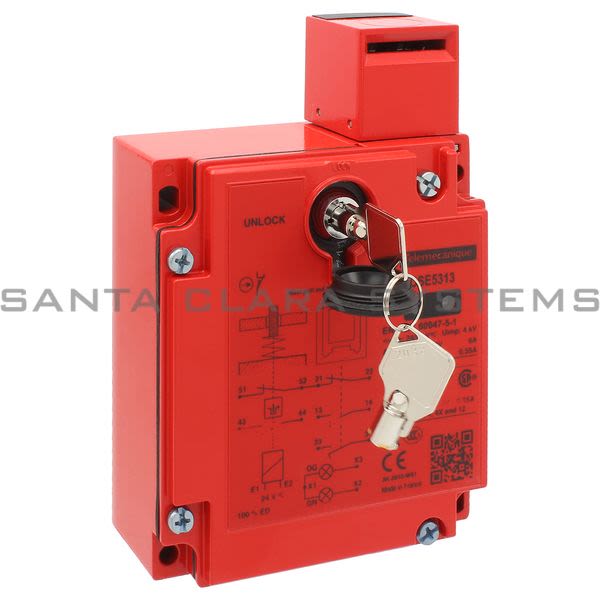

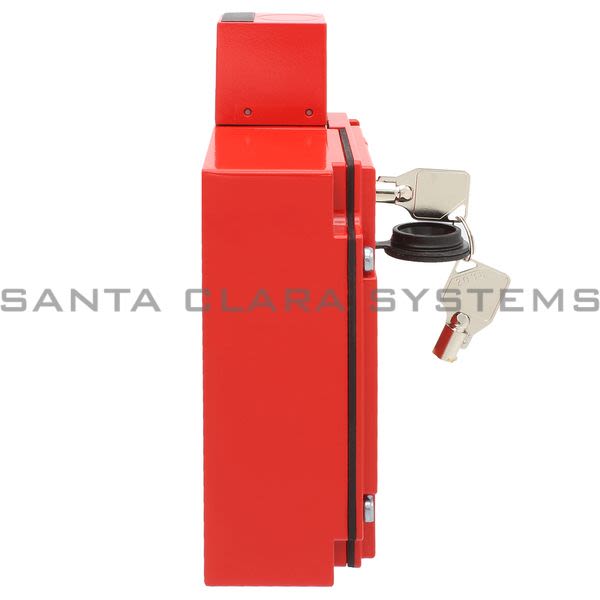

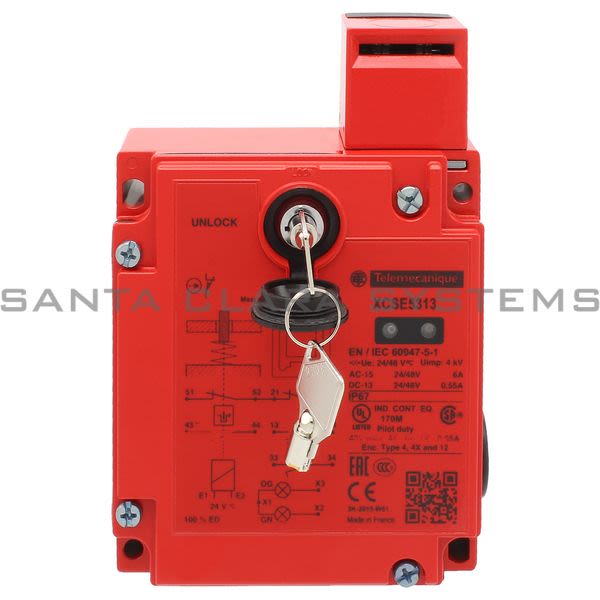

• Telemecanique XCSE5313 Barcode

XCSE5313

Product Summary:

  • range of product: Preventa Safety detection
  • positive opening: With NC contact
  • product or component type: Safety switch
  • supply voltage type: AC/DC
  • product certifications: UL CSA, UL CSA
Get a Quote
           or
  • Description: metal safety switch XCSE - 1NC+2NO - slow break- 2 entries tapped 1/2" NPT- 24V

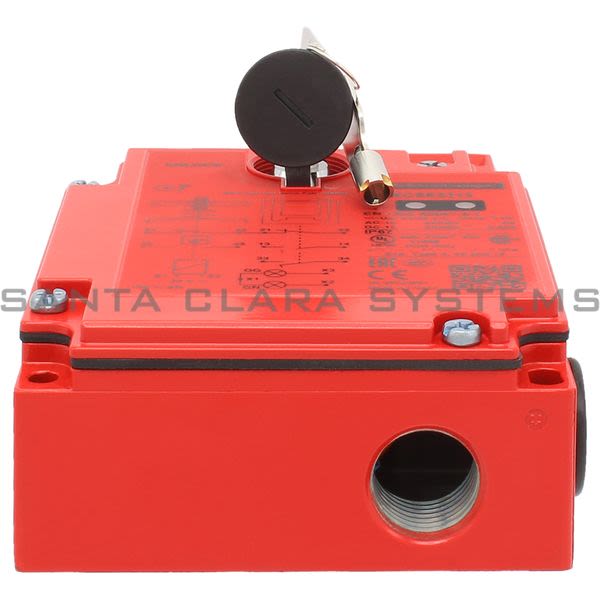

  • cable entry: 2 entries tapped 1/2" NPT
  • maximum actuation speed: 1.64 ft/s (0.5 m/s)
  • electromagnet interlocking: Locking on de-energisation and unlocking on energisation of solenoid
  • [Ie] rated operational current: 0.55 A at 125 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1 0.27 A at 250 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1 3 A at 120 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-1 1.5 A at 240 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1 0.27 A at 250 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1 3 A at 120 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-1 1.5 A at 240 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1 0.27 A at 250 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1 3 A at 120 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-1 1.5 A at 240 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1 0.27 A at 250 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1 3 A at 120 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-1 1.5 A at 240 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-1
  • [Us] rated supply voltage: 24 V (- 20...10 %)
  • [Ithe] conventional enclosed thermal current: 6:00 AM
  • electrical connection: Terminal, 1 x 0.5...2 x 1.5 mm with or without cable end
  • [Ui] rated insulation voltage: 50 V for signalling circuit conforming to EN/IEC 60947-1
  • number of poles: 3
  • [Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-5-1
  • locking options description: With interlocking, locking by solenoid
  • protection type: Overvoltage protection signalling circuit
  • local signalling: 2 LEDs green or orange (guard open/guard closed and locked)
  • short-circuit protection: 10 A cartridge fuse type gG (gl)
  • signalling circuit voltage: 24/48 V (voltage limits: 20...52 V)
  • actuator forcible withdrawal rtc: 2000 N
  • actuator force for extraction: >= 20 N
  • operating rate: 10 cyc/mn for maximum durability
  • safety level: Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508, Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508, Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
  • safety reliability data: B10d = 5000000 (value given for a life time of 20 years limited by mechanical or contact wear)
  • body material: Zamak
  • head material: Zamak
  • depth: 1.73 in (44 mm)
  • height: 5.75 in (146 mm)
  • width: 3.86 in (98 mm)
  • product weight: 2.51 lb(US) (1.14 kg)
  • range of product: Preventa Safety detection
  • positive opening: With NC contact
  • standards: UL 508 EN 1088/ISO 14119 EN/IEC 60947-5-1 EN/IEC 60204-1 CSA C22.2 No 14 EN/ISO 12100, UL 508 EN 1088/ISO 14119 EN/IEC 60947-5-1 EN/IEC 60204-1 CSA C22.2 No 14 EN/ISO 12100, UL 508 EN 1088/ISO 14119 EN/IEC 60947-5-1 EN/IEC 60204-1 CSA C22.2 No 14 EN/ISO 12100, UL 508 EN 1088/ISO 14119 EN/IEC 60947-5-1 EN/IEC 60204-1 CSA C22.2 No 14 EN/ISO 12100, UL 508 EN 1088/ISO 14119 EN/IEC 60947-5-1 EN/IEC 60204-1 CSA C22.2 No 14 EN/ISO 12100, UL 508 EN 1088/ISO 14119 EN/IEC 60947-5-1 EN/IEC 60204-1 CSA C22.2 No 14 EN/ISO 12100
  • product or component type: Safety switch
  • supply voltage type: AC/DC
  • product certifications: UL CSA, UL CSA
  • component name: XCSE
  • supply frequency: 50/60 Hz
  • protective treatment: TC
  • design: Rectangular
  • load factor: 1
  • ambient air temperature for operation: -13...104 F (-25...40 C)
  • material: Metal
  • power consumption in VA: 10 VA (inrush) 10 VA (sealed), 10 VA (inrush) 10 VA (sealed)
  • ambient air temperature for storage: -40...158 F (-40...70 C)
  • head type: Key operated turret head
  • signalling circuit type: AC/DC
  • vibration resistance: 5 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
  • contacts type and composition: 1 NC + 2 NO
  • signalling circuit consumption: 7 mA
  • shock resistance: 10 gn 11 ms conforming to IEC 60068-2-27
  • contact operation: Slow-break, break before make
  • mechanical durability: >= 1000000 cycles
  • electrical shock protection class: Class I conforming to EN/IEC 61140
  • solenoid contacts type and composition: 1 NC + 1 NO (slow-break, simultaneous)
  • minimum actuation speed: 0.03 ft/s (0.01 m/s)
  • IP degree of protection: IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on XCSE5313 . Santa Clara Systems carries 7,003 items from Telemecanique.
  • Metal Safety Switch Xcse - 1Nc+2No - Slow Break- 2 Entries Tapped 1/2" Npt- 24V
