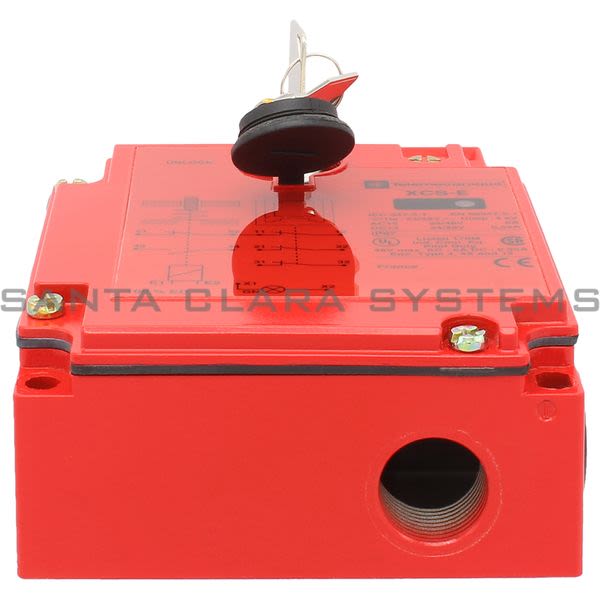

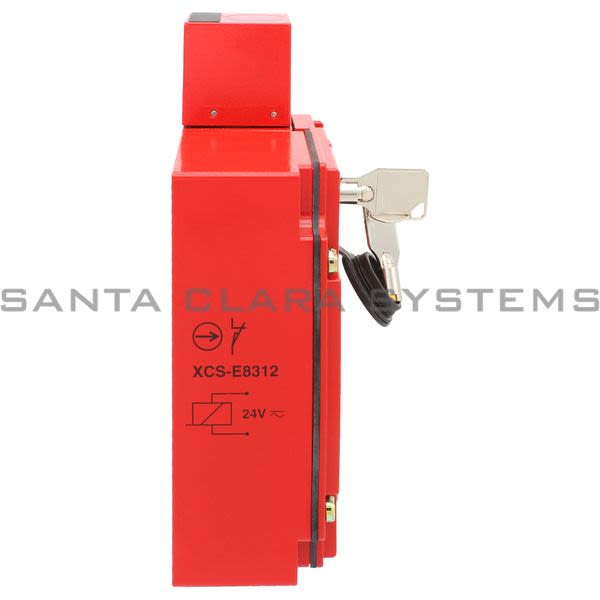

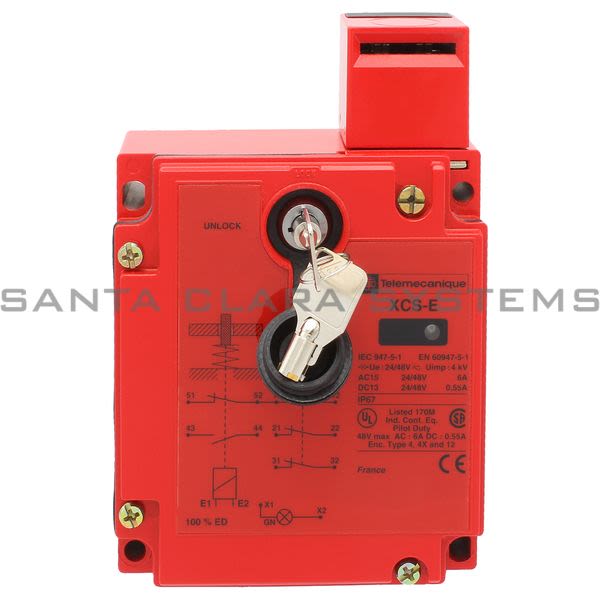

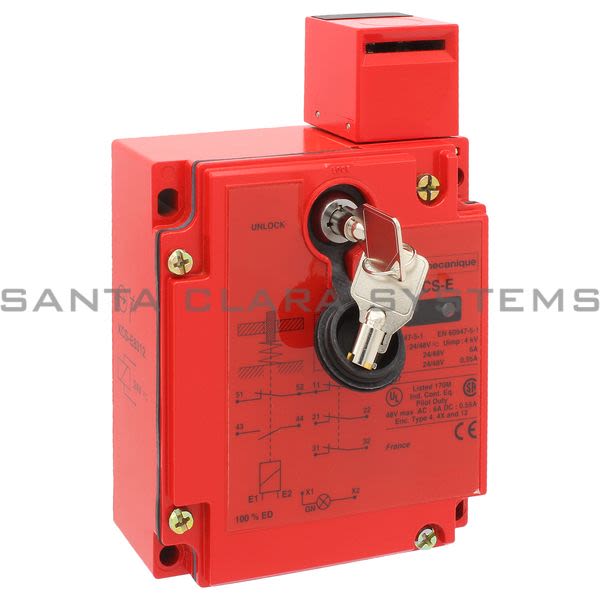

XCSE8312

Telemecanique - Safety Switch

Product Summary:

Product weight: 2.51 lb(US) (1.14 kg)
Range of product: Preventa Safety detection
IP degree of protection: IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Width: 3.86 in (98 mm)
Height: 5.75 in (146 mm)

Current response time:

4 Minutes 39 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Safety Switch
Product weight: 2.51 lb(US) (1.14 kg)
Range of product: Preventa Safety detection
IP degree of protection: IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Standards: UL 508EN 1088/ISO 14119EN/IEC 60204-1CSA C22.2 No 14EN/IEC 60947-5-1EN/ISO 12100
Width: 3.86 in (98 mm)
Height: 5.75 in (146 mm)
Depth: 1.73 in (44 mm)
Protective treatment: TC
[Ui] rated insulation voltage: 50 V for signalling circuit conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-5-1
Mechanical durability: >= 1000000 cycles
Operating rate: 10 cyc/mn for maximum durability
Vibration resistance: 5 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
Shock resistance: 10 gn 11 ms conforming to IEC 60068-2-27
Electrical connection: Terminal, 1 x 0.5...2 x 1.5 mm² with or without cable end
[Ie] rated operational current: 0.55 A at 125 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-10.27 A at 250 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-13 A at 120 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-11.5 A at 240 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-1
[Us] rated supply voltage: 24 V (- 20...10 %)
Protection type: Overvoltage protection signalling circuit
Material: Metal
Number of poles: 3
Head type: Key operated turret head
Positive opening: With NC contact
Product or component type: Safety switch
Supply voltage type: AC/DC
Product certifications: CSAUL
Component name: XCSE
Supply frequency: 50/60 Hz

Design: Rectangular
Load factor: 1
Ambient air temperature for operation: -13...104 °F (-25...40 °C)
power consumption in VA: 10 VA (inrush)10 VA (sealed)
Ambient air temperature for storage: -40...158 °F (-40...70 °C)
Signalling circuit type: AC/DC
Contacts type and composition: 3 NC
Signalling circuit consumption: 7 mA
Contact operation: Slow-break, simultaneous
Electrical shock protection class: Class I conforming to EN/IEC 61140
Solenoid contacts type and composition: 1 NC + 1 NO (slow-break, simultaneous)
Minimum actuation speed: 0.03 ft/s (0.01 m/s)
Cable entry: 2 entries tapped M20 x 1.5
Maximum actuation speed: 1.64 ft/s (0.5 m/s)
Electromagnet interlocking: Locking on de-energisation and unlocking on energisation of solenoid
[Ithe] conventional enclosed thermal current: 6:00 AM
Cable outer diameter: 0.28...0.51 in (7...13 mm)
Locking options description: With interlocking, locking by solenoid
Short-circuit protection: 10 A cartridge fuse type gG (gl)
Local signalling: 1 LED green (guard closed and locked)
Actuator forcible withdrawal rtc: 2000 N
Signalling circuit voltage: 24/48 V (voltage limits: 20...52 V)
Actuator force for extraction: >= 20 N
Safety level: Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Safety reliability data: B10d = 5000000 (value given for a life time of 20 years limited by mechanical or contact wear)
Body material: Zamak
Head material: Zamak
