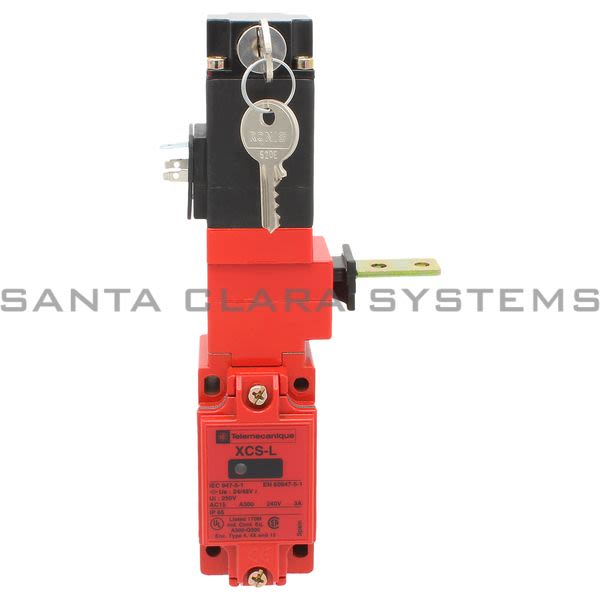

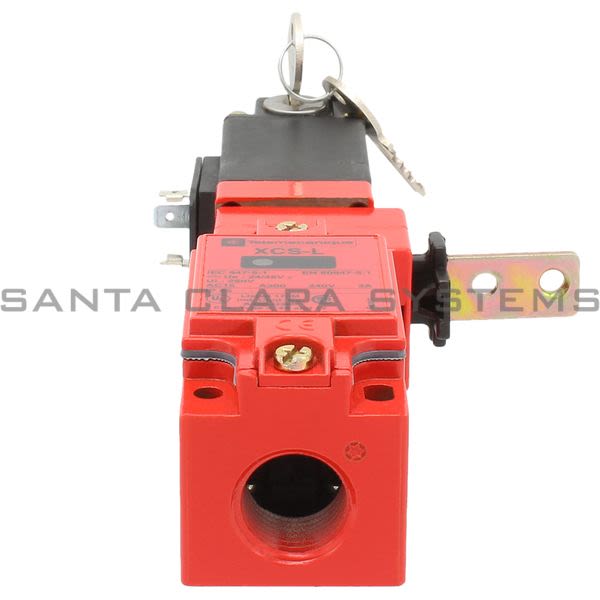

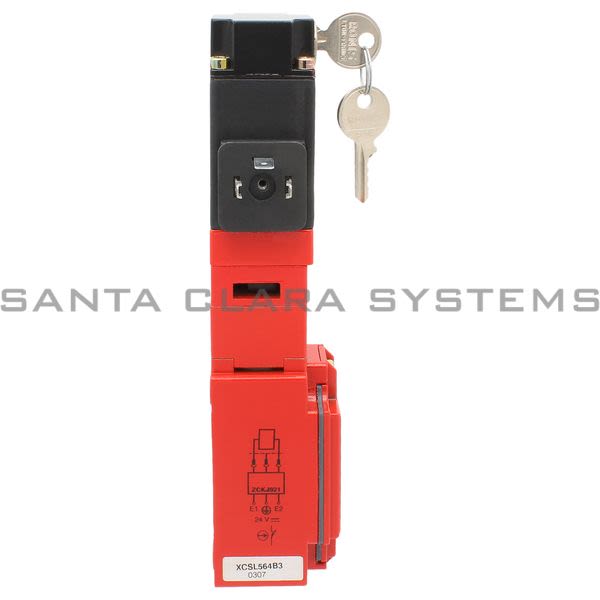

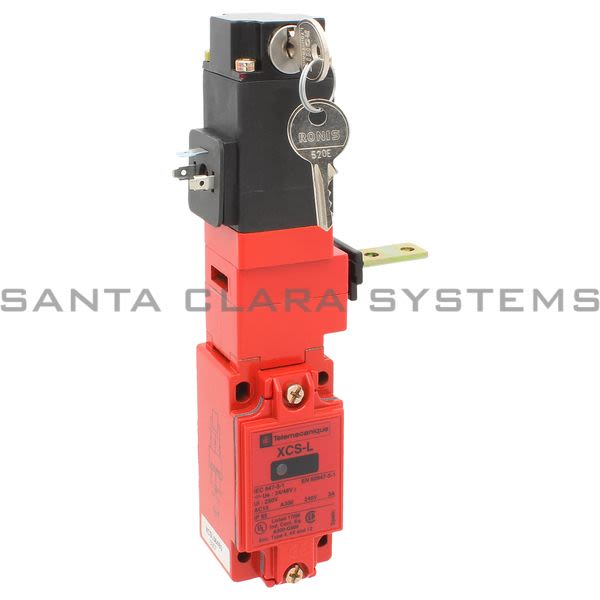

Telemecanique XCSL564B3 Safety Switch Product Image

XCSL564B3

Telemecanique - Safety Switch

Product Summary:

IP degree of protection: IP67
Device short name: XCSL
Height: 7.64 in
Depth: 1.73 in
[Us] rated supply voltage: 24 V DC

Current response time:

8 Minutes 26 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Safety Switch
IP degree of protection: IP67
Device short name: XCSL
Height: 7.64 in
Depth: 1.73 in
[Us] rated supply voltage: 24 V DC
Number of poles: 3
Enclosure material: Metal
Enclosure type: Enclosure water resistant indoor/outdoorEnclosure dustproof indoor/outdoorEnclosure ice/sleet proof indoor/outdoor
Actuator: Key
Line Rated Current: 10:00 AM

Ambient air temperature for operation: -13...158 °F
NEMA degree of protection: NEMA 1/2/3/4/12
Contact operation: Slow-break, break before make
Product certifications: CSA LR4408794 class 3211 03UL listed file E164353 CCN NKCRCE
Contacts type and composition: 2 NO staggered1 NC
Installation direction: Left electromagnet connectionRight actuator supply
Key locking position: Front
Locking options description: With locking of actuator, unlocking by key operated lock
Permissible voltage: <= 300 V AC
Pilot light: LED orange

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on XCSL564B3 . Santa Clara Systems carries 10,643 items from Telemecanique.
