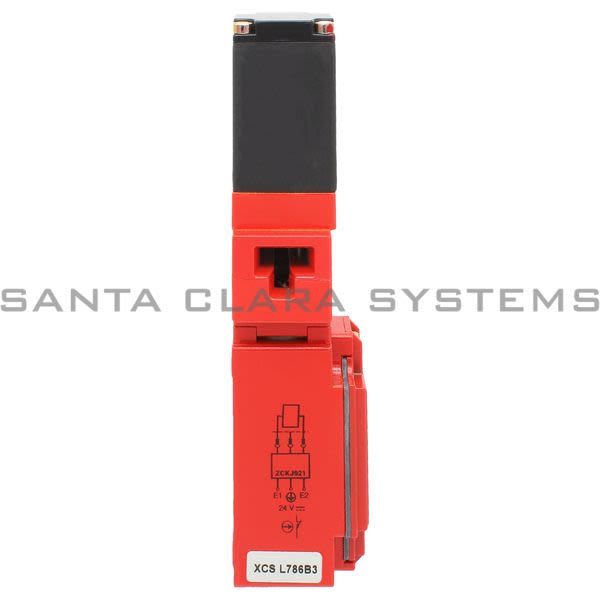

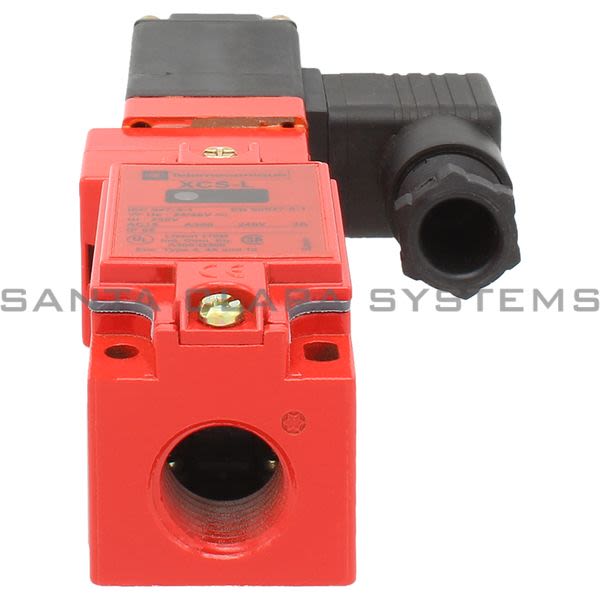

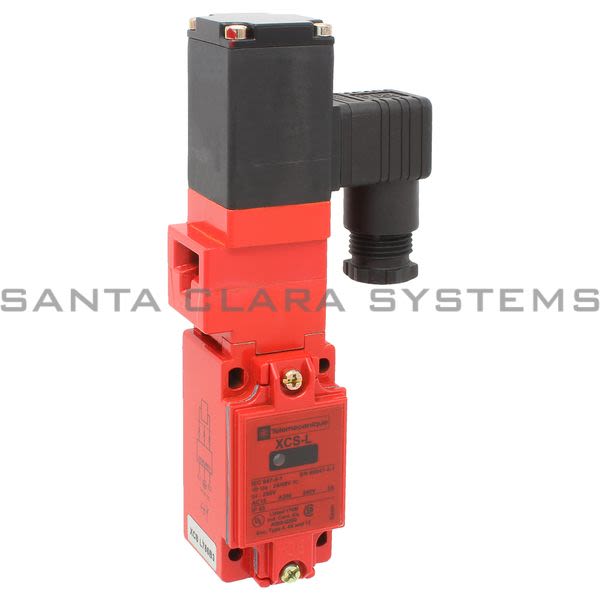

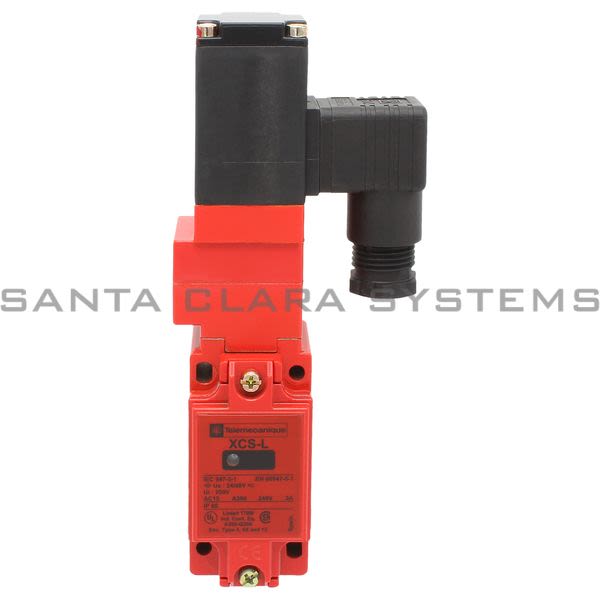

XCSL786B3

Telemecanique - Safety Switch

Product Summary:

IP degree of protection: IP67
Device short name: XCSL
Height: 7.64 in
Depth: 1.73 in
[Us] rated supply voltage: 24 V DC

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Safety Switch
IP degree of protection: IP67
Device short name: XCSL
Height: 7.64 in
Depth: 1.73 in
[Us] rated supply voltage: 24 V DC
Number of poles: 3
Enclosure material: Metal
Enclosure type: Enclosure water resistant indoor/outdoorEnclosure dustproof indoor/outdoorEnclosure ice/sleet proof indoor/outdoor
Actuator: Key

Line Rated Current: 10:00 AM
Ambient air temperature for operation: -13...158 °F
NEMA degree of protection: NEMA 1/2/3/4/12
Contact operation: Slow-break, break before make
Contacts type and composition: 1 NO staggered2 NC
Installation direction: Right electromagnet connectionLeft actuator supply
Locking options description: With interlocking, locking by solenoidWith locking of actuator, unlocking by key operated lock
Permissible voltage: <= 300 V AC
Pilot light: LED orange

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on XCSL786B3 . Santa Clara Systems carries 10,643 items from Telemecanique.
