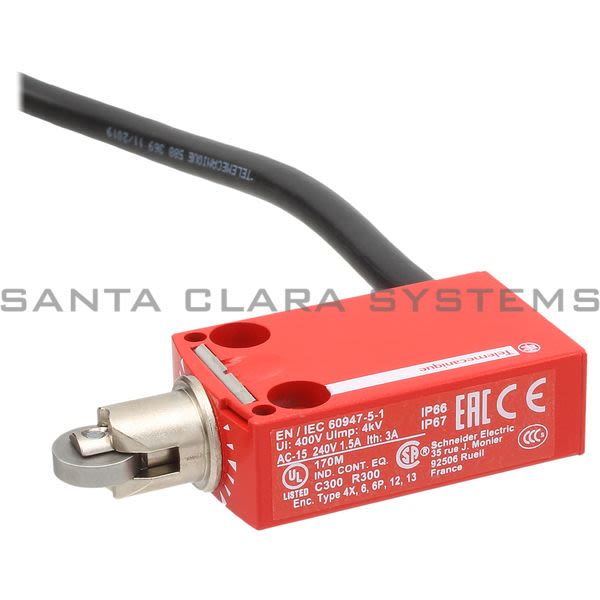

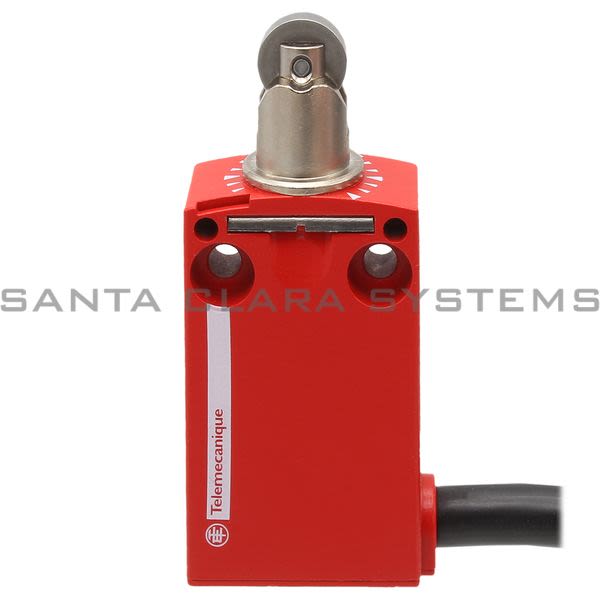

XCSM4102L5

Telemecanique - Safety Switch

Product Summary:

Product weight: 0.37 lb(US) (0.17 kg)
Range of product: Preventa Safety detection
Standards: EN/IEC 60204-1EN/IEC 60947-5-1EN 1088UL 508CSA C22.2 No 14
Width: 1.18 in (30 mm)
Height: 2.76 in (70 mm)

Current response time:

7 Minutes 13 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Safety Switch
Product weight: 0.37 lb(US) (0.17 kg)
Range of product: Preventa Safety detection
IP degree of protection: IP68 conforming to IEC 60529IP66 conforming to IEC 60529IP67 conforming to IEC 60529
Standards: EN/IEC 60204-1EN/IEC 60947-5-1EN 1088UL 508CSA C22.2 No 14
Width: 1.18 in (30 mm)
Height: 2.76 in (70 mm)
Depth: 0.63 in (16 mm)
Protective treatment: TC
[Ui] rated insulation voltage: 300 V conforming to CSA C22.2 No 14400 V (degree of pollution: 3) conforming to IEC 60947-5-1300 V conforming to UL 508
[Uimp] rated impulse withstand voltage: 4 kV conforming to IEC 606644 kV conforming to IEC 60947-1
Mechanical durability: 10000000 cycles
Vibration resistance: 5 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
Shock resistance: 25 gn 18 ms conforming to IEC 60068-2-27
Electrical connection: Pre-cabled
Material: Metal
Number of poles: 4
Head type: Plunger head

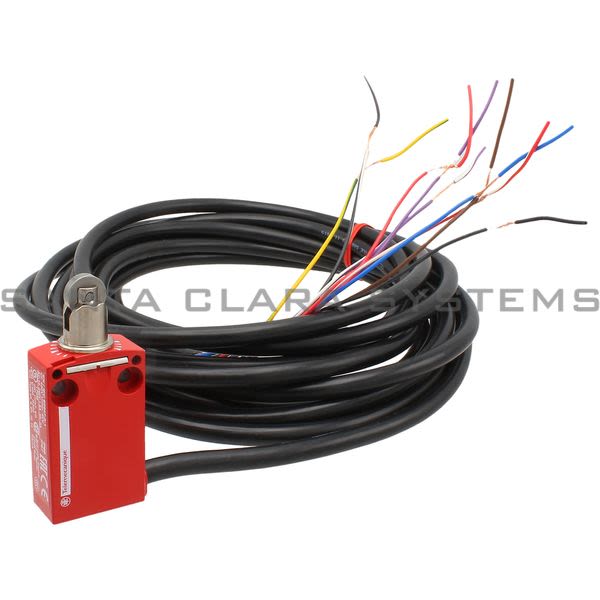

Cable length: 16.4 ft (5 m)
Product or component type: Safety limit switch
Product certifications: CSAUL
Component name: XCSM

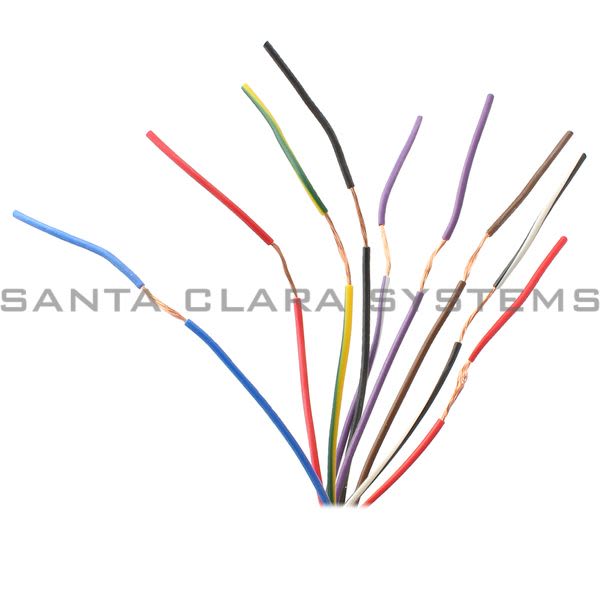

Cable composition: 9 x 0.34 mm²
Safety level: Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508

Design: Miniature
Switch actuation: By 30° cam
Safety reliability data: B10d = 50000000 (value given for a life time of 20 years limited by mechanical or contact wear)
Fixing mode: By the body
Ambient air temperature for operation: -13...158 °F (-25...70 °C)
Protection technology: Plastic protective cover, secured by 5-lobe socket head safety screw
Positive opening: With NC contact
Ambient air temperature for storage: -40...158 °F (-40...70 °C)
Type of approach: Lateral approach
Type of operator: Roller plunger
Minimum force for tripping: 7 N
Contacts type and composition: 1 NC + 1 NC + 1 NO + 1 NO
Positive opening minimum force: 35 N
Electrical shock protection class: Class I conforming to EN/IEC 61140Class I conforming to NF C 20-030
Contact operation: Snap action
Minimum actuation speed: 0.01 m/min
Maximum actuation speed: 1.64 ft/s (0.5 m/s)
IK degree of protection: IK06 conforming to EN 50102
Contact code designation: B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN 60947-5-1B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix AR300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN 60947-5-1R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A
Resistance across terminals: <= 25 MOhm conforming to IEC 60255-7 category 3
Short-circuit protection: 6 A cartridge fuse type gG (gl)
Repeat accuracy: 0.05 mm on the tripping points
Body material: Zamak
Head material: Zamak
