XCSPA793

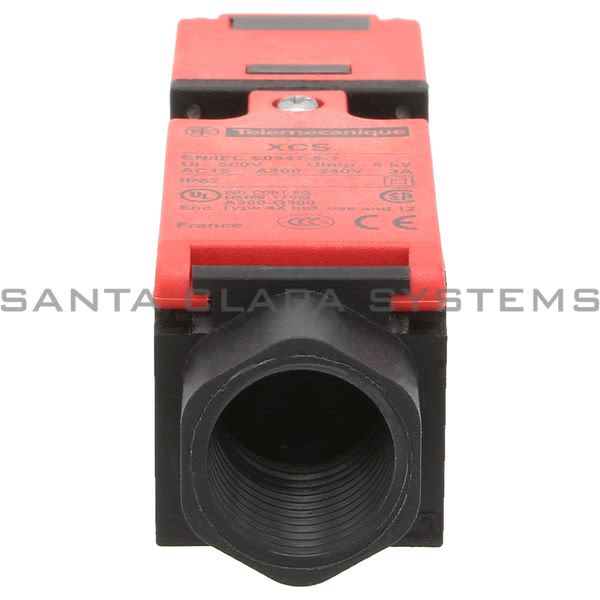

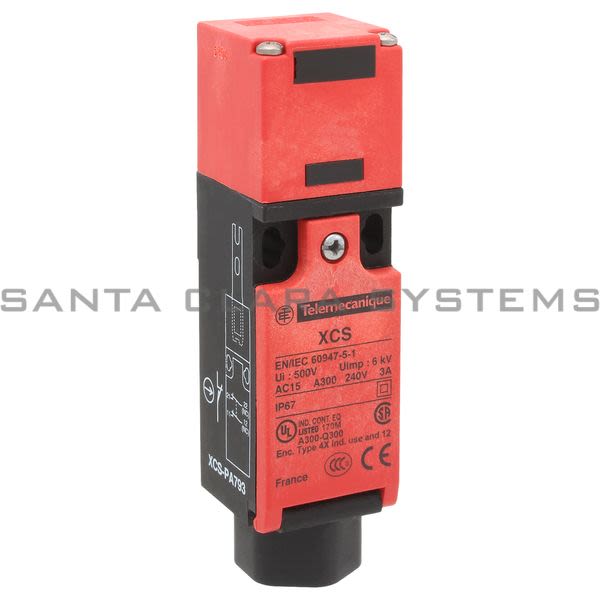

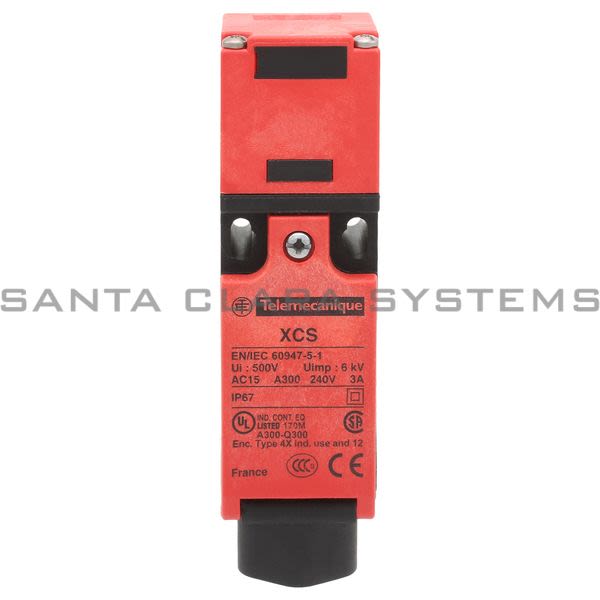

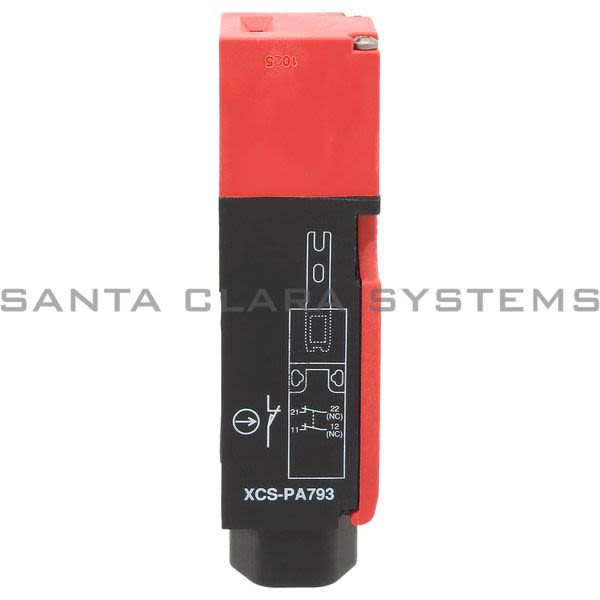

Telemecanique - plastic safety switch XCSPA - 1 NC + 1 NC- slow break - 1 entry tapped 1/2" NPT

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: plastic safety switch XCSPA - 1 NC + 1 NC- slow break - 1 entry tapped 1/2" NPT
Product weight: 0.24 lb(US) (0.11 kg)
Range of product: Preventa Safety detection
IP degree of protection: IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Standards: CSA C22.2 No 14EN/IEC 60947-5-1EN/ISO 12100EN 1088/ISO 14119UL 508EN/IEC 60204-1
Width: 1.18 in (30 mm)
Height: 4.21 in (107 mm)
Depth: 1.18 in (30 mm)
Protective treatment: TC
[Ui] rated insulation voltage: 300 V conforming to CSA C22.2 No 14500 V conforming to EN/IEC 60947-1300 V conforming to UL 508
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-5-1
Mechanical durability: >= 1000000 cycles
Operating rate: 10 cyc/mn for maximum durability
Vibration resistance: 5 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
Shock resistance: 10 gn 11 ms conforming to IEC 60068-2-27
Electrical connection: Terminal, 1 x 0.5...2 x 1.5 mm² with or without cable end
[Ie] rated operational current: 6 A at 120 V utilisation category AC-15, A300 conforming to EN/IEC 60947-5-13 A at 240 V utilisation category AC-15, A300 conforming to EN/IEC 60947-5-10.55 A at 125 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-10.27 A at 250 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-1
Material: Plastic
Number of poles: 2
Head type: Key operated turret head
Insulation: Double insulated
Product or component type: Safety switch

Positive opening: With NC contact
Product certifications: CSAUL
Component name: XCSPA
Design: Compact
Positive opening minimum force: 15 N
Ambient air temperature for operation: -13...158 °F (-25...70 °C)
Minimum actuation speed: 0.03 ft/s (0.01 m/s)
Ambient air temperature for storage: -40...158 °F (-40...70 °C)
Maximum actuation speed: 1.64 ft/s (0.5 m/s)
Contacts type and composition: 2 NC
Contact operation: Slow-break, simultaneous
[Ithe] conventional enclosed thermal current: 10:00 AM
Electrical shock protection class: Class II conforming to EN/IEC 61140
Cable entry: 1 entry tapped 1/2" NPT
Short-circuit protection: 10 A cartridge fuse type gG (gl)
Locking options description: Without locking of actuator
Actuator forcible withdrawal rtc: 10 N
Safety level: Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Safety reliability data: B10d = 5000000 (value given for a life time of 20 years limited by mechanical or contact wear)
Body material: PA (polyamide)
Head material: PA (polyamide)
