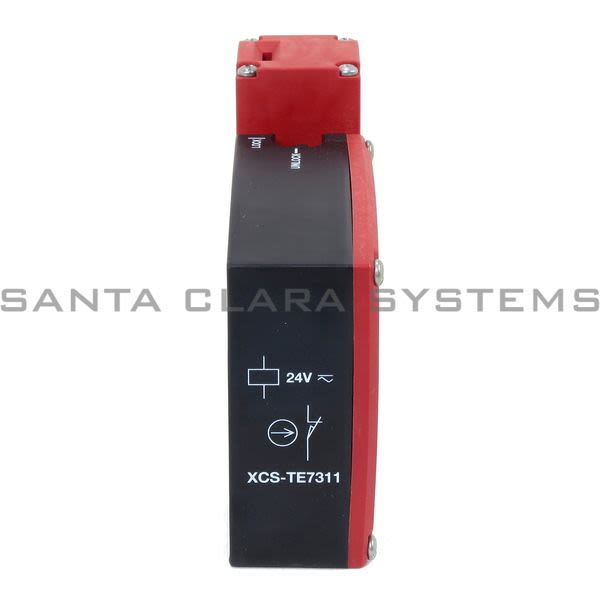

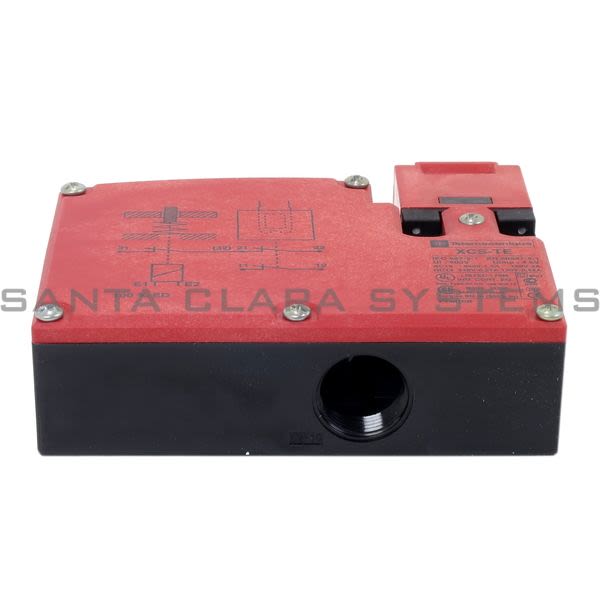

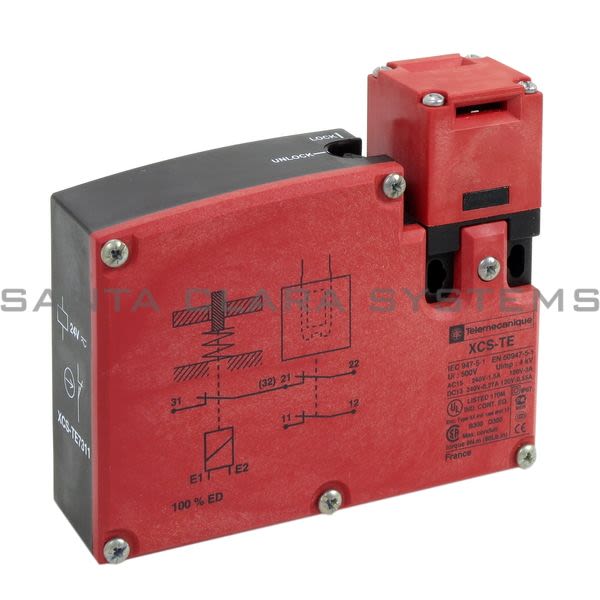

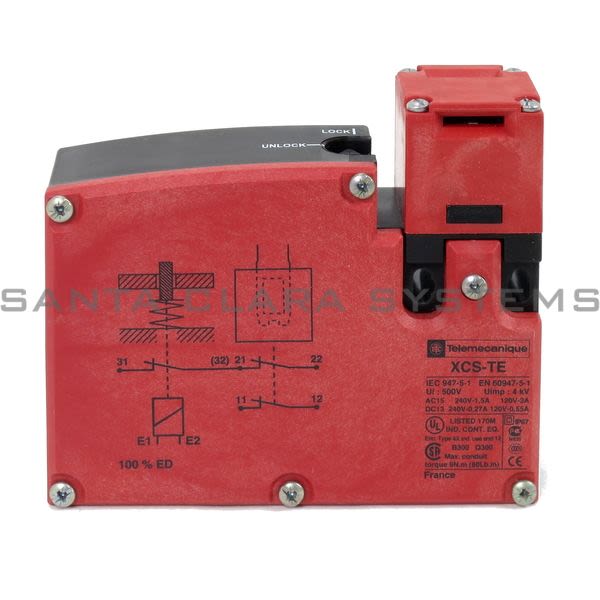

XCSTE7311

Telemecanique - plastic safety switch XCSTE - 2 NC - slow break - 1 entry tapped Pg 11 - 24 V

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: plastic safety switch XCSTE - 2 NC - slow break - 1 entry tapped Pg 11 - 24 V
Product weight: 0.79 lb(US) (0.36 kg)
Range of product: Preventa Safety detection
IP degree of protection: IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Standards: EN/ISO 12100UL 508CSA C22.2 No 14EN/IEC 60947-5-1EN/IEC 60204-1EN 1088/ISO 14119
Width: 4.33 in (110 mm)
Height: 3.7 in (94 mm)
Depth: 1.3 in (33 mm)
Protective treatment: TC
[Ui] rated insulation voltage: 300 V conforming to CSA C22.2 No 14500 V conforming to EN/IEC 60947-1300 V conforming to UL 508
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-5-1
Mechanical durability: 1000000 cycles
Operating rate: 10 cyc/mn for maximum durability
Vibration resistance: 5 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
Shock resistance: 10 gn 11 ms conforming to IEC 60068-2-27
Electrical connection: Terminal, 1 x 0.5...2 x 1.5 mm² with or without cable end
[Ie] rated operational current: 0.55 A at 125 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-10.27 A at 250 V utilisation category DC-13, Q300 conforming to EN/IEC 60947-5-13 A at 120 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-11.5 A at 240 V utilisation category AC-15, B300 conforming to EN/IEC 60947-5-1
[Us] rated supply voltage: 24 V (- 20...10 %)
Material: Plastic
Number of poles: 2
Head type: Key operated turret head
Insulation: Double insulated
Product or component type: Safety switch
Positive opening: With NC contact
Product certifications: CSAUL
Component name: XCSTE

Supply voltage type: AC/DC
Design: Rectangular
Supply frequency: 50/60 Hz
Ambient air temperature for operation: -13...140 °F (-25...60 °C)
Load factor: 1
Ambient air temperature for storage: -40...158 °F (-40...70 °C)
power consumption in VA: 10 VA
Contacts type and composition: 2 NC
Contact operation: Slow-break, simultaneous
Positive opening minimum force: 15 N
Electrical shock protection class: Class II conforming to EN/IEC 61140
Solenoid contacts type and composition: 1 NC (slow-break)
Minimum actuation speed: 0.03 ft/s (0.01 m/s)
Cable entry: 1 entry tapped Pg 11
Maximum actuation speed: 1.64 ft/s (0.5 m/s)
Electromagnet interlocking: Locking on de-energisation and unlocking on energisation of solenoid
[Ithe] conventional enclosed thermal current: 6:00 AM
Cable outer diameter: 0.28...0.39 in (7...10 mm)
Short-circuit protection: 10 A cartridge fuse type gG (gl)
Locking options description: With interlocking, locking by solenoid
Actuator forcible withdrawal rtc: 500 N
Safety level: Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
Safety reliability data: B10d = 5000000 (value given for a life time of 20 years limited by mechanical or contact wear)
Body material: PA (polyamide)
Head material: PA (polyamide)
