XGKS1715503

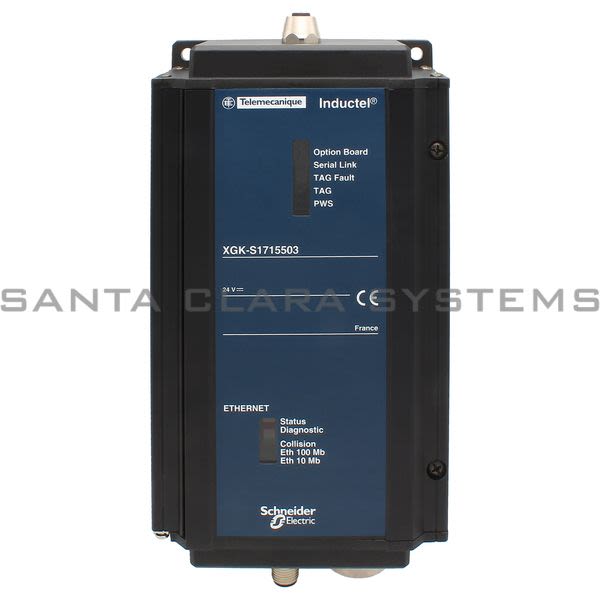

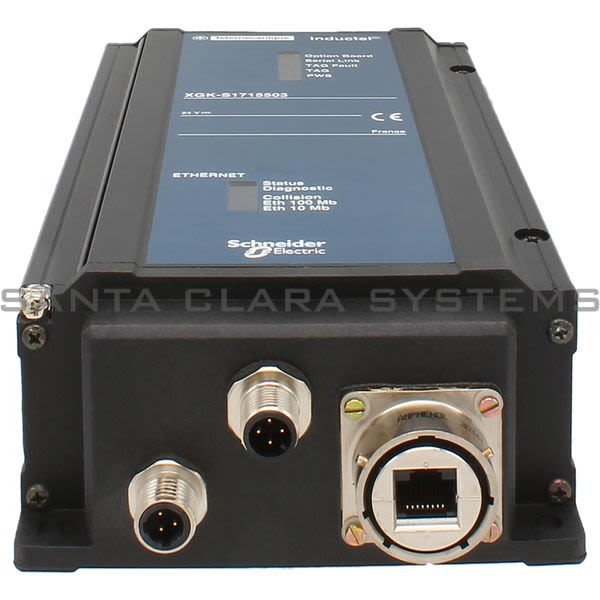

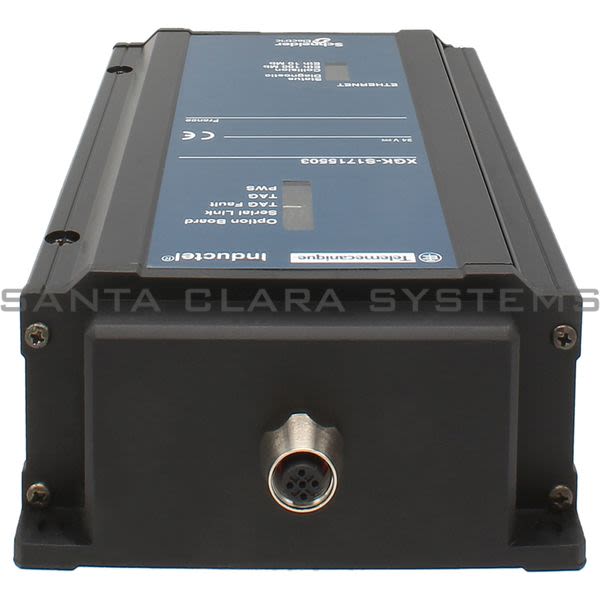

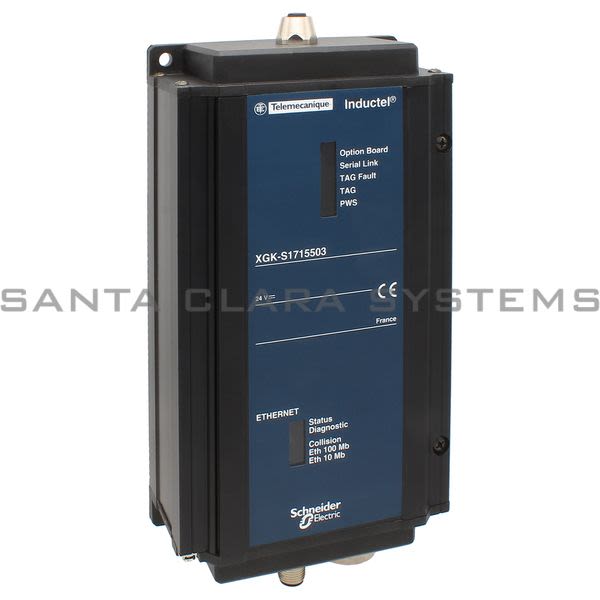

Telemecanique - READ/ WRITE STATION ETHERNET

Product Summary:

Product weight: 0.06 lb(US) (0.025 kg)
Range of product: OsiSense XG
IP degree of protection: IP68
Standards: ISO 15693
Shock resistance: 30 gn 11 ms conforming to EN 60068-2-27

Current response time:

12 Minutes 6 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: READ/ WRITE STATION ETHERNET
Product weight: 0.06 lb(US) (0.025 kg)
Range of product: OsiSense XG
IP degree of protection: IP68
Standards: ISO 15693
Vibration resistance: 2 mm (f = 5...29.5 Hz) conforming to EN 60068-2-67 gn (f = 29.5...150 Hz) conforming to EN 60068-2-6
Shock resistance: 30 gn 11 ms conforming to EN 60068-2-27
Material: PBT (polybutylene terephthalate)
Memory type: EEPROM
Product or component type: Electronic tag
Memory operation: Read/write
Ambient air temperature for operation: -13...158 °F (-25...70 °C)
RFID electronic tag name: XGHB
Number of read cycles: Unlimited
Ambient air temperature for storage: -40...185 °F (-40...85 °C)

RFID frequency: 13.56 MHz
Number of write cycles: 2500000 at 86 °F (30 °C)100000 at -13...158 °F (-25...70 °C)
Design: Flat form 26 x 26 x 13
Passing speed of object: With XGCS49 (read a serial number)With XGCS49 (read a word)With XGCS49 (read or write 10 words)With XGCS89 (read a serial number)With XGCS89 (read a word)With XGCS89 (read or write 10 words)With XGCS85 (read a serial number)With XGCS85 (read a word)With XGCS85 (read or write 10 words)
Memory capacity: 256 B
Data retention time: 10 yr
IK degree of protection: IK02 conforming to EN 50102
Station name: XGCS
Mounting location: Possible on metal support
[Sn] nominal sensing distance: 2.17 in (55 mm) with XGCS851.57 in (40 mm) with XGCS491.65 in (42 mm) with XGCS49 + field expander XGFEC25252.17 in (55 mm) with XGCS89
Outer dimension: 26 x 26 x 13 mm
Quantity per set: Set of 1
Read time: 12 + 0.825 x (number of 16-bit words) ms
Write time: 20 + 11.8 x (number of 16-bit words) ms
Fixing mode: By Clips / By Screws

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on XGKS1715503 . Santa Clara Systems carries 10,643 items from Telemecanique.
