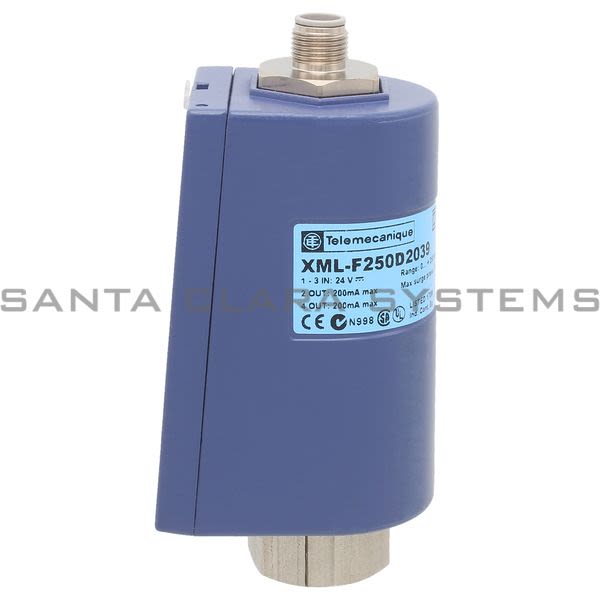

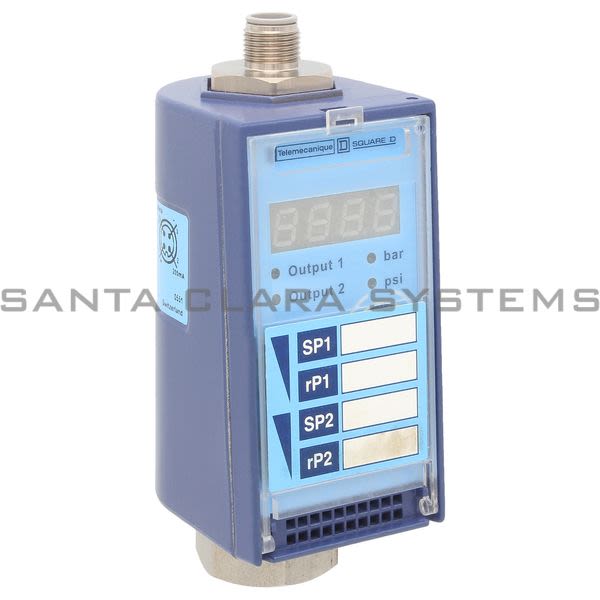

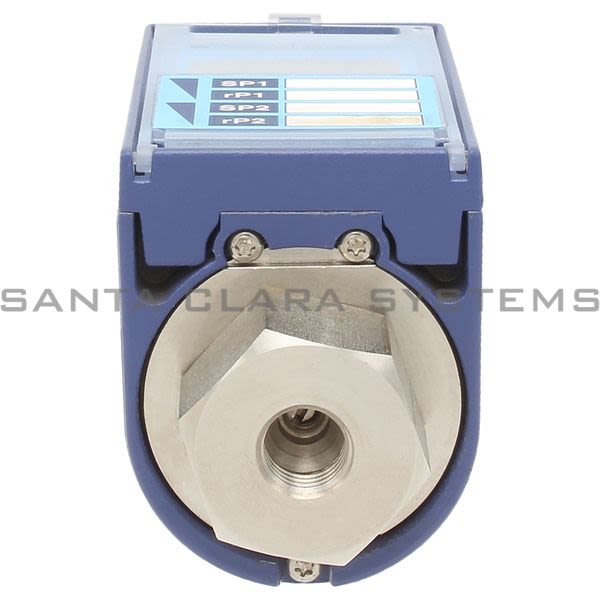

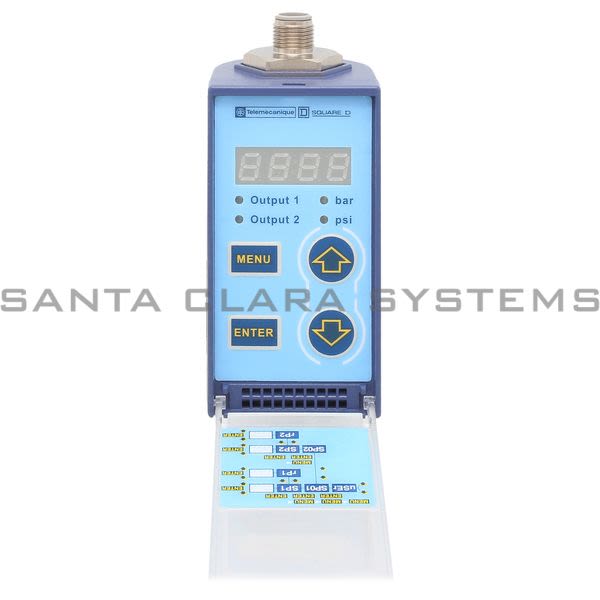

XMLF250D2039

Telemecanique - Pressure Sensor

Current response time:

8 Minutes 38 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Pressure Sensor
Product weight: 1.65 lb(US) (0.75 kg)
Range of product: OsiSense XM
IP degree of protection: IP66 conforming to EN/IEC 60529
Standards: CSA C22.2 No 14UL 508EN/IEC 60947-5-1CE
Device short name: XMLD
Width: 1.81 in (46 mm)
Height: 4.45 in (113 mm)
Depth: 3.35 in (85 mm)
Protective treatment: TC (standard version)
[Ui] rated insulation voltage: 300 V conforming to CSA C22.2 No 14500 V conforming to EN/IEC 60947-1300 V conforming to UL 508
[Uimp] rated impulse withstand voltage: 6 kV conforming to EN/IEC 60947-1
Mechanical durability: 3000000 cycles
Operating rate: 60 cyc/mn at 0...70 °C
Vibration resistance: 4 gn (f = 30...500 Hz) conforming to IEC 60068-2-6
Shock resistance: 50 gn conforming to IEC 60068-2-27
Electrical connection: Screw-clamps terminals 1 x 0.5...2 x 2.5 mm²
Enclosure material: Zinc alloy
Spread between 2 stages: 159.54...2741.21 psi (11...189 bar)
Product or component type: Electromechanical pressure sensor
Natural differential at low setting: 246.56 psi (17 bar)
Product certifications: CSAULEAC
Pressure sensor type: Electromechanical pressure sensor
Natural differential at high setting: 609.16 psi (42 bar)
Maximum permissible pressure - per cycle: 5438.92 psi (375 bar)

Ambient air temperature for operation: -13...158 °F (-25...70 °C)
Pressure sensor size: 4351.13 psi (300 bar)
Terminal block type: 8 terminals
Ambient air temperature for storage: -40...158 °F (-40...70 °C)
Controlled fluid: Hydraulic oil (32...320 °F (0...160 °C))
Operating position: Any position
Fluid connection type: G 1/4 (female) conforming to ISO 228
Repeat accuracy: < 2 %
AWG gauge: AWG 20...AWG 14
Electrical shock protection class: Class I conforming to IEC 1140Class I conforming to IEC 536Class I conforming to NF C 20-030
Cable entry: Cable gland 7...13 mm
Resistance across terminals: < 25 mOhm conforming to IEC 255-7 category 3< 25 mOhm conforming to NF C 93-050 method A
Contacts type and composition: 2 C/O snap action, silver contacts2 C/O staggered, silver contacts
Short-circuit protection: 10 A cartridge fuse type gG (gl)
Product specific application: Dual stage
Pressure switch type of operation: Detection of 2 single thresholds
Setting: External
Electrical circuit type: Control circuit
Scale type: Fixed differential
Local display: Without
Maximum permissible accidental pressure: 9790.05 psi (675 bar)
Destruction pressure: 19580.1 psi (1350 bar)
Pressure actuator: Piston
Materials in contact with fluid: FPM, FKMSteelBrassPTFE
[In] rated current: 3 A, B300, AC-15 (Ue = 120 V) conforming to EN/IEC 60947-5-11.5 A, B300, AC-15 (Ue = 240 V) conforming to EN/IEC 60947-5-10.1 A, R300, DC-13 (Ue = 250 V) conforming to EN/IEC 60947-5-1
