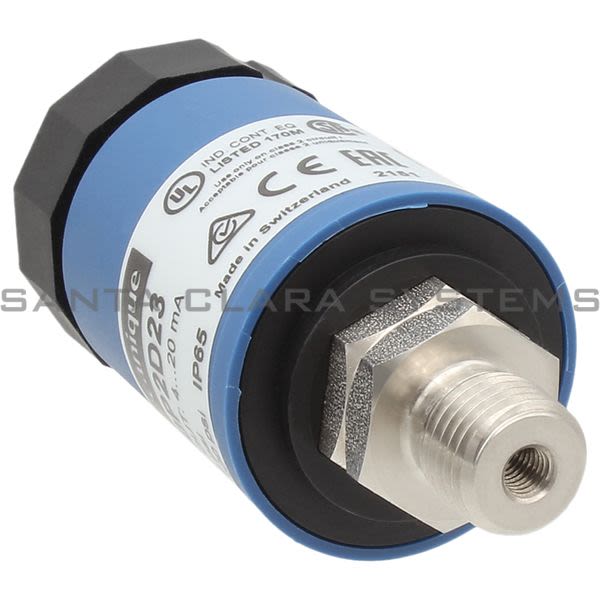

• Telemecanique XML K100P2D23 pressure sensor XMLK - 0..100psi - 1/4NPT - 4..20mA - M12 - set of 1 Product Image

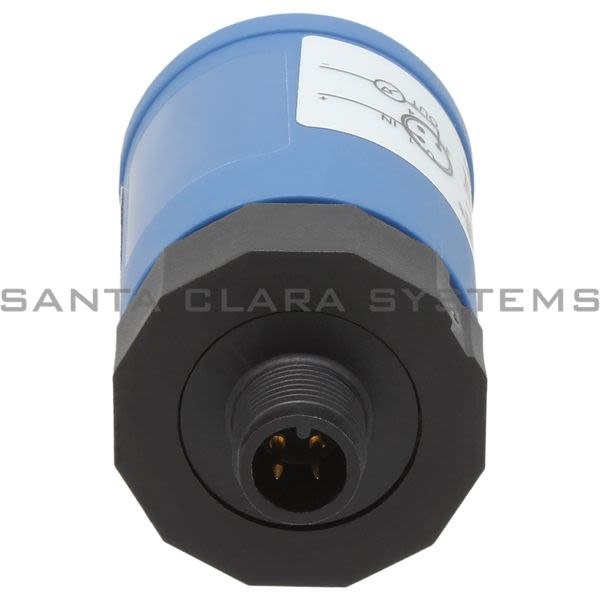

  • Telemecanique XML K100P2D23 pressure sensor XMLK - 0..100psi - 1/4NPT - 4..20mA - M12 - set of 1 Product Image

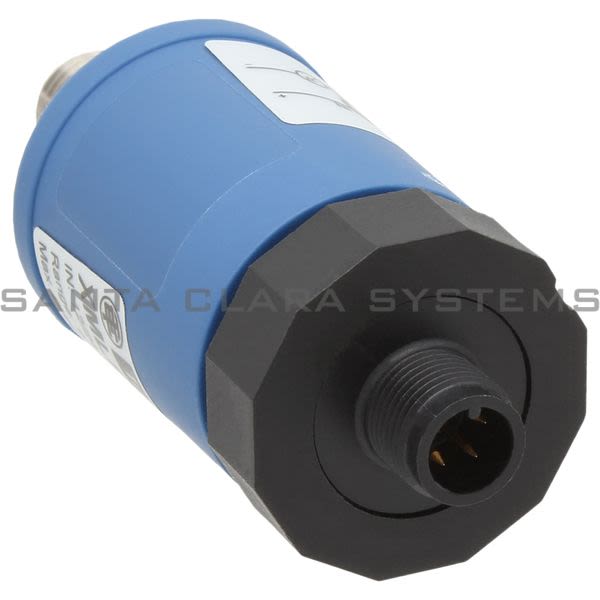

  • Telemecanique XML K100P2D23 pressure sensor XMLK - 0..100psi - 1/4NPT - 4..20mA - M12 - set of 1 Product Image

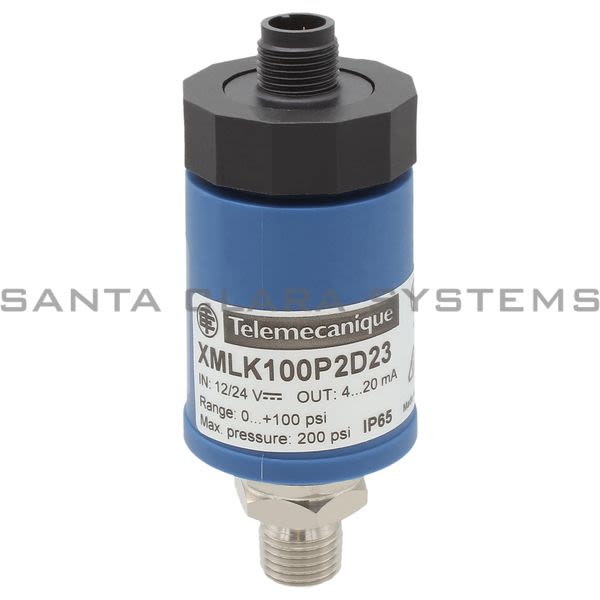

  • Telemecanique XML K100P2D23 pressure sensor XMLK - 0..100psi - 1/4NPT - 4..20mA - M12 - set of 1 Product Image
  • Telemecanique XML K100P2D23 Barcode

XMLK100P2D23

Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: pressure sensor XMLK - 0..100psi - 1/4NPT - 4..20mA - M12 - set of 1
  • Product weight: 0.24 lb(US) (0.11 kg)
  • Range of product: OsiSense XM
  • IP degree of protection: IP65 conforming to EN/IEC 60529
  • Standards: EN/IEC 61326-2-3CE
  • Protective treatment: TC
  • [Uimp] rated impulse withstand voltage: 0.5 kV
  • Mechanical durability: >= 10000000 cycles
  • Vibration resistance: 20 gn (f = 9...2000 Hz) conforming to EN/IEC 60068-2-6
  • Shock resistance: 25 gn 11 ms conforming to EN/IEC 60068-2-27
  • Electrical connection: 1 male connector M12 4 pins
  • [Us] rated supply voltage: 24 V DC SELV, voltage limits: 8...33 V
  • Protection type: Load short-circuitReverse polarity
  • Length: 2.58 in (65.5 mm)
  • Pressure setting range: 0...100 psi
  • Product or component type: Electronic pressure sensors
  • Maximum permissible accidental pressure: 200 psi
  • Product certifications: CSA C22.2 No 14RCMUL 508EAC
  • Pressure sensor type: Pressure transmitter
  • Destruction pressure: 300 psi
  • Pressure sensor name: XMLK
  • Materials in contact with fluid: Nitrile (NBR)Stainless steel type AISI 303Ceramic
  • Ambient air temperature for operation: 32...176 °F (0...80 °C)
  • Electrical circuit type: Control circuit
  • Operating position: Any position
  • Ambient air temperature for storage: -13...176 °F (-25...80 °C)
  • Pressure sensor size: 100 psi
  • Local display: Without
  • Electromagnetic compatibility: Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 - test level 8 kV air, 6 kV contactSusceptibility to electromagnetic fields conforming to EN/IEC 61000-4-3 - test level 10 V/m (f = 80...1000 MHz)Electrical fast transient/burst immunity test conforming to EN/IEC 61000-4-4 - test level 2 kV1.2/50 µs shock waves immunity test conforming to EN/IEC 61000-4-5 - test level 500 V 12 Ohm, 1 kV 42 OhmRadiated RF fields conforming to EN/IEC 61000-4-6 - test level 10 V (f = 0.15...80 MHz)Immunity to magnetic fields conforming to EN/IEC 61000-4-8 - test level 30 A/m (f = 50 Hz)
  • Controlled fluid: Air 32...176 °F (0...80 °C)Fresh water 32...176 °F (0...80 °C)
  • Fluid connection type: 1/4" - 18 NPT (male)
  • Response time on output: < 5 ms
  • NEMA degree of protection: NEMA 4
  • Measurement accuracy: +/- 1 % of the measuring range
  • Accuracy: 0.1 % of the measuring range
  • Current consumption: < 20 mA
  • Drift of the sensitivity: +/- 0.04 % of measuring range/°K
  • Type of output signal: Analogue
  • Drift of the zero point: +/- 0.03 % of measuring range/°K
  • Analogue output function: 4...20 mA, 2-wire
  • Repeat accuracy: +/- 1 % of the measuring range
  • Quantity per set: Set of 1
  • Type of packing: Individual
  • Diameter: 1.42 in (36 mm)
  • Scale type: Fixed differential
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on XMLK100P2D23 . Santa Clara Systems carries 10,459 items from Telemecanique.
  • Pressure Sensor Xmlk - 0..100psi - 1/4npt - 4..20ma - M12 - Set Of 1
