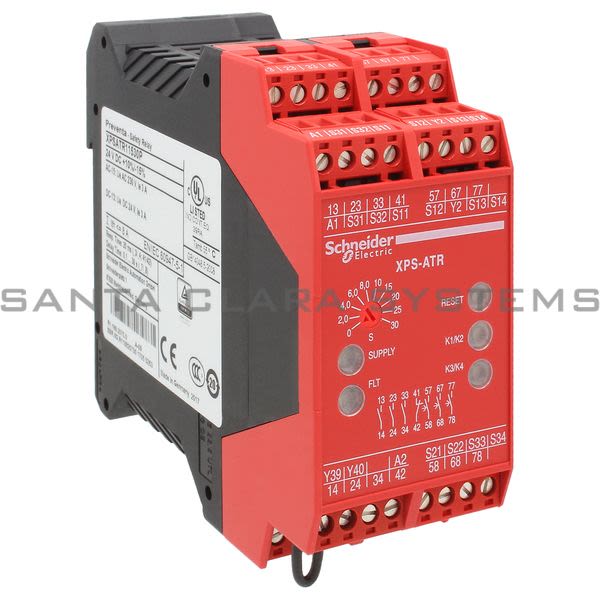

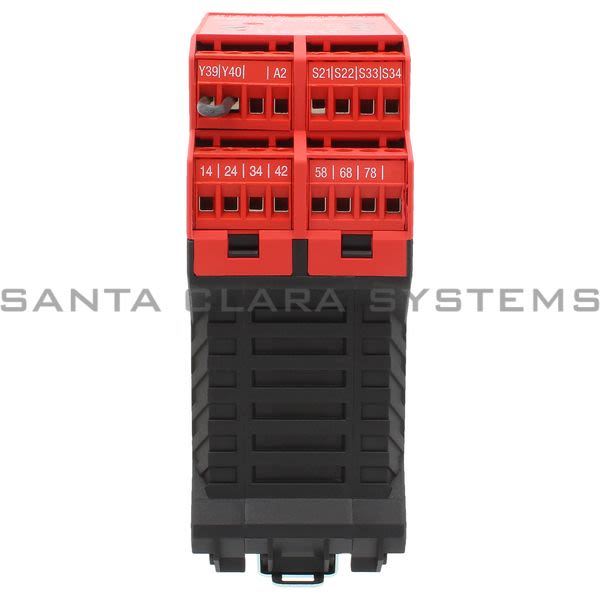

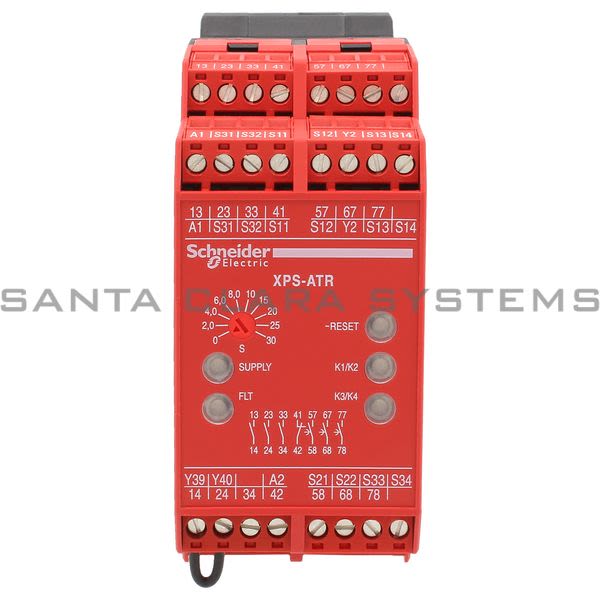

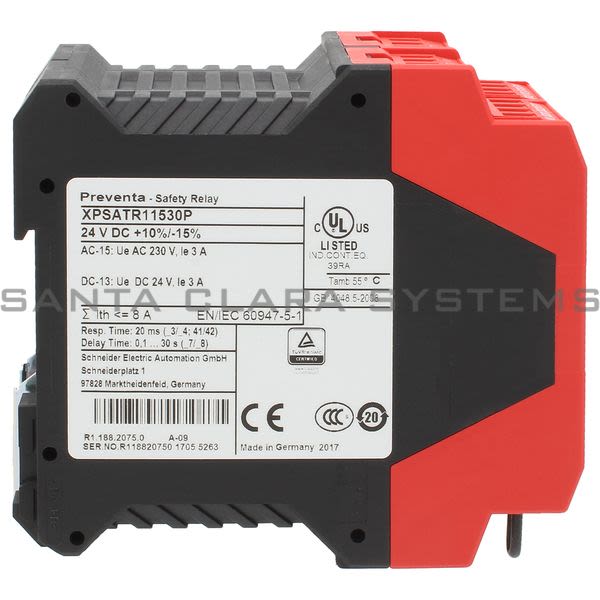

Telemecanique XPSATR11530P module XPSATR - Emergency stop and protective guard - 24V DC, time delay 30s Product Image

XPSATR11530P

Telemecanique - module XPSATR - Emergency stop and protective guard - 24V DC, time delay 30s

Product Summary:

Product weight: 0.73 lb(US) (0.33 kg)
Range of product: Preventa Safety automation
[Ui] rated insulation voltage: 300 V
Mounting support: 35 mm symmetrical DIN rail
[Ith] conventional free air thermal current: 8:00 AM

Current response time:

15 Minutes 6 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: module XPSATR - Emergency stop and protective guard - 24V DC, time delay 30s
Product weight: 0.73 lb(US) (0.33 kg)
Range of product: Preventa Safety automation
IP degree of protection: IP20 (terminals) conforming to EN/IEC 60529IP40 (enclosure) conforming to EN/IEC 60529
Standards: EN 60204-1EN/IEC 61496-1EN 62061EN/IEC 60947-5-1EN 50156-1EN/ISO 13849-1
[Ui] rated insulation voltage: 300 V
[Uimp] rated impulse withstand voltage: 4 kV overvoltage category III conforming to EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2
Connections - terminals: Captive screw clamp terminals, removable terminal block, clamping capacity: 1 x 0.25...1 x 2.5 mm² flexible cable with cable end, without bezelCaptive screw clamp terminals, removable terminal block, clamping capacity: 1 x 0.25...1 x 1.5 mm² flexible cable with cable end, with bezelCaptive screw clamp terminals, removable terminal block, clamping capacity: 2 x 0.25...2 x 1 mm² flexible cable with cable end, without bezelCaptive screw clamp terminals, removable terminal block, clamping capacity: 1 x 0.2...1 x 2.5 mm² solid or flexible cable without cable endCaptive screw clamp terminals, removable terminal block, clamping capacity: 2 x 0.2...2 x 1 mm² solid or flexible cable without cable endCaptive screw clamp terminals, removable terminal block, clamping capacity: 2 x 0.5...2 x 1.5 mm² flexible cable with cable end, with bezel
Mounting support: 35 mm symmetrical DIN rail
[Ith] conventional free air thermal current: 8:00 AM
[Uc] control circuit voltage: 24 V DC
[Us] rated supply voltage: 24 V DC (- 15...10 %)
Associated fuse rating: 6 A fuse type gG for instantaneous and time delay outputs conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
Breaking capacity: 3 A at 24 V (DC-13) for relay output
Output type: Relay instantaneous opening 3 NO, volt-freeRelay time delay opening 3 NO, volt-free
Synchronisation time between inputs: 1 s
Product or component type: Preventa safety module
power consumption in W: 2.8 W DC

Product certifications: CSAULTÜV
Safety module name: XPSATR
Input protection type: Internal, electronic
Safety module application: For emergency stop and protective guard applications
Time delay range: 0...30 s
Ambient air temperature for operation: -13...131 °F (-25...55 °C)
Function of module: Emergency stop monitoring 1-channel wiringEmergency stop monitoring 2-channel wiringProtective guard monitoring
Ambient air temperature for storage: -13...167 °F (-25...75 °C)
Safety level: Can reach SILCL 3 conforming to EN/IEC 62061 time delay safety outputsCan reach PL e/category 4 conforming to EN/ISO 13849-1 instantaneous safety outputs
Safety reliability data: MTTFd = 85 years conforming to EN/ISO 13849-1PFHd = 2E-9 1/h conforming to EN/IEC 62061DC > 99 % conforming to EN/ISO 13849-1
Output thermal current: 6 A instantaneous and time delay outputs
Type of start: ManualAutomatic
Minimum output current: 10 mA relay output
Number of additional circuits: 1 NC
Minimum output voltage: 17 V relay output
Response time on input open: <= 20 ms
Local signalling: 5 LEDs
