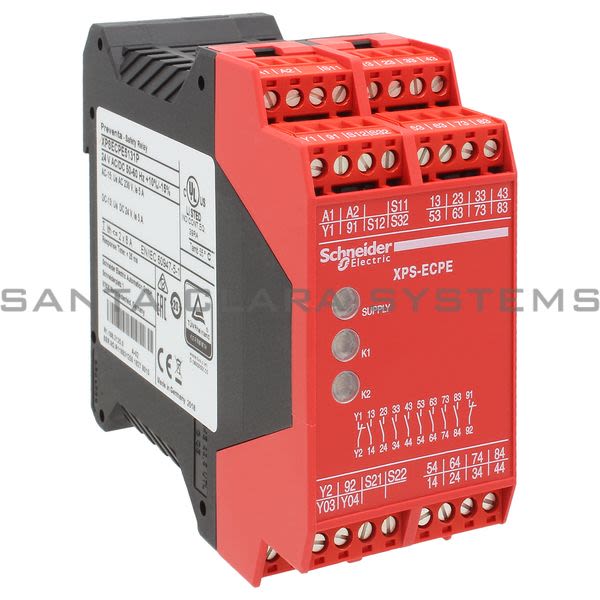

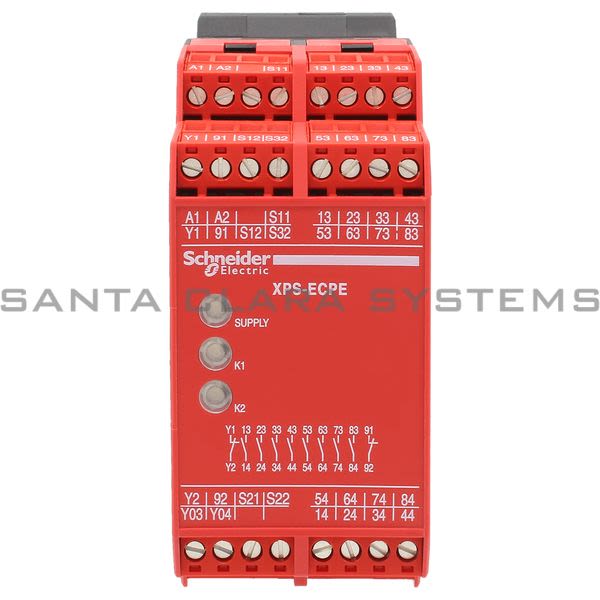

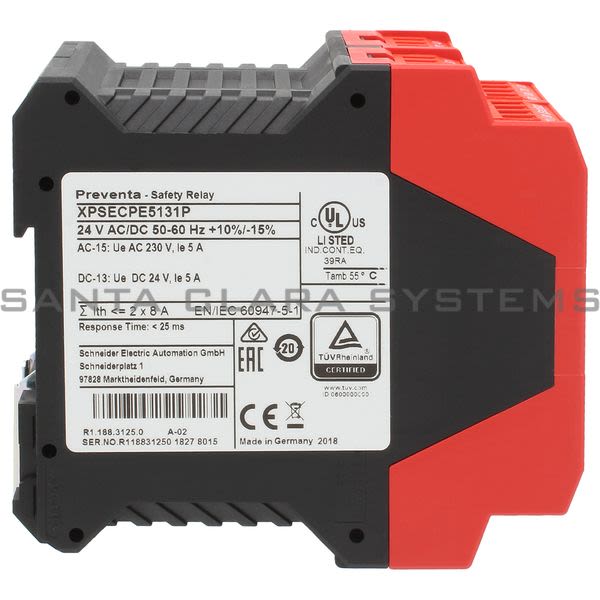

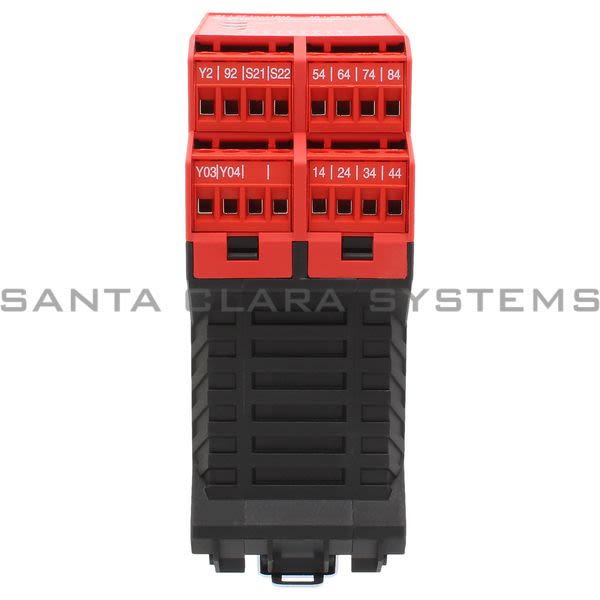

XPSECPE5131P

Telemecanique - module XPSEC - increasing the number of safety contacts - 24 V AC DC

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: module XPSEC - increasing the number of safety contacts - 24 V AC DC
Product weight: 1.21 lb(US) (0.55 kg)
Range of product: Preventa Safety automation
IP degree of protection: IP20(terminals) conforming to EN/IEC 60529IP40(enclosure) conforming to EN/IEC 60529
Standards: EN/IEC 60204-1EN/IEC 60947-5-1
[Ui] rated insulation voltage: 300 V, degree of pollution 2 conforming to EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2
[Uimp] rated impulse withstand voltage: 4 kV overvoltage category III, conforming to EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2
Connections - terminals: Captive screw clamp terminals, clamping capacity: 1 x 0.2...1 x 2.5 mm² solid cable without cable endCaptive screw clamp terminals, clamping capacity: 1 x 0.2...1 x 2.5 mm² flexible cable without cable endCaptive screw clamp terminals, clamping capacity: 1 x 0.25...1 x 2.5 mm² flexible cable with cable end, without bezelCaptive screw clamp terminals, clamping capacity: 1 x 0.25...1 x 1.5 mm² flexible cable with cable end, with bezelCaptive screw clamp terminals, clamping capacity: 2 x 0.2...2 x 1 mm² solid cable without cable endCaptive screw clamp terminals, clamping capacity: 2 x 0.2...2 x 1 mm² flexible cable without cable endCaptive screw clamp terminals, clamping capacity: 2 x 0.25...2 x 1 mm² flexible cable with cable end, without bezelCaptive screw clamp terminals, clamping capacity: 2 x 0.5...2 x 1.5 mm² flexible cable with cable end, with double bezel
Mounting support: 35 mm symmetrical DIN rail
[Ith] conventional free air thermal current: < 24 A for relay output
[Us] rated supply voltage: 24 V AC (- 15...10 %)24 V DC (- 15...10 %)
Associated fuse rating: 6 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
Breaking capacity: 20 mA / 24 V solid state output circuit3 A/24 V - L/R = 50 ms, DC-13 for relay output
Output type: Relay 8 NO, volt-free
Supply frequency: 50/60 Hz
Product or component type: Preventa safety module

power consumption in VA: <= 4 VA
Product certifications: CSATÜVUL
Safety module name: XPSECPE
Input protection type: Internal, electronic
Safety module application: Increasing the number of safety contacts
Ambient air temperature for operation: -13...131 °F (-25...55 °C)
Function of module: Increasing the number of safety contacts
Ambient air temperature for storage: -13...158 °F (-25...70 °C)
Safety level: Can reach PL e/category 4 conforming to EN/ISO 13849-1 can reach the maximum safety level of module baseCan reach SILCL 3 conforming to EN/IEC 62061 can reach the maximum safety level of module base
Output thermal current: 6 A per relay relay output
Safety reliability data: DC = 0...99 % conforming to EN/ISO 13849-1MTTFd > 100 years conforming to EN/ISO 13849-1PFHd = 2.47E-8 1/h conforming to EN/IEC 62061
Minimum output current: 10 mA relay output
Number of additional circuits: 2 NC + 1 solid state output
Minimum output voltage: 5 V for relay output
Response time on input open: <= 10 ms
Local signalling: 3 LEDs
