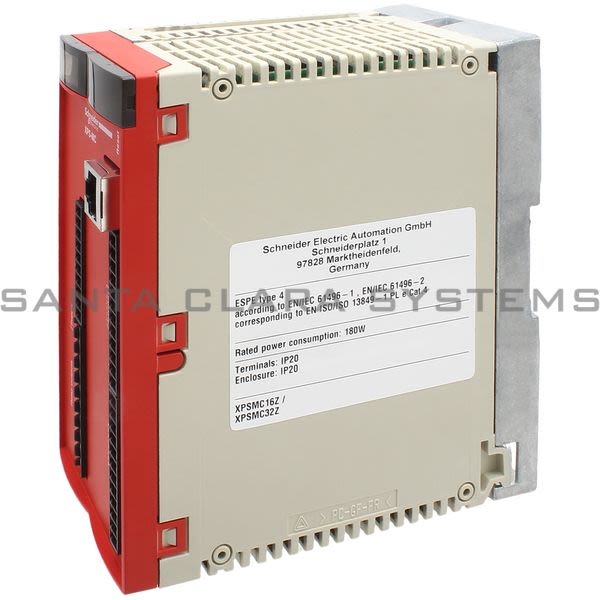

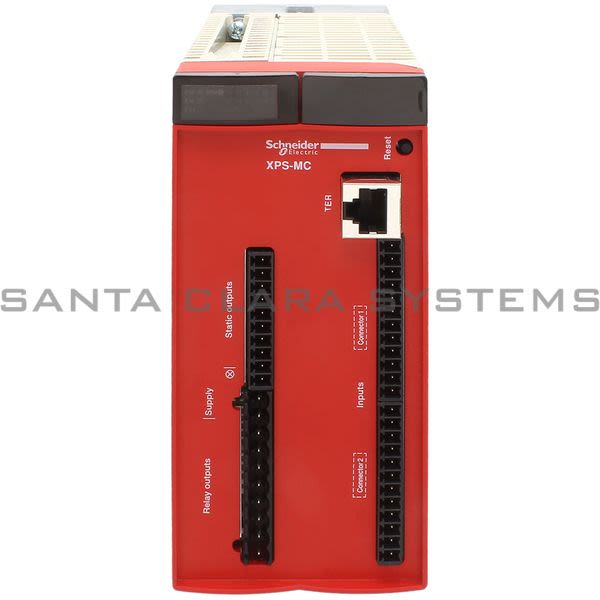

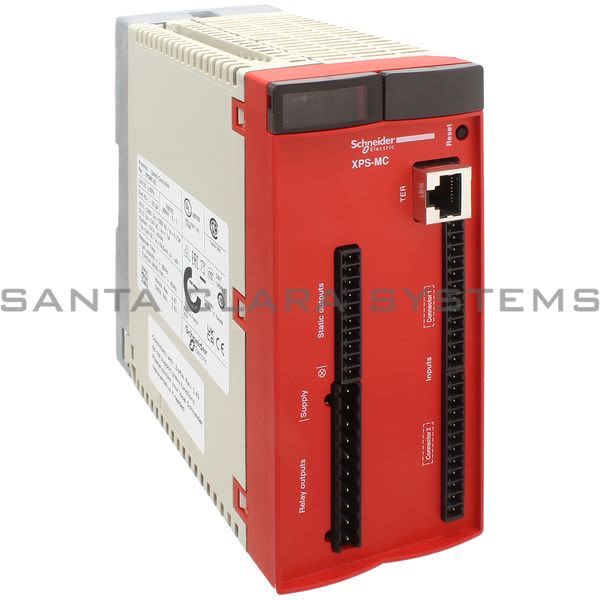

XPSMC16Z

Telemecanique - safety controller XPS-MC - 24 V DC - 16 input - 30 LEDs signalling

Current response time:

9 Minutes 58 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: safety controller XPS-MC - 24 V DC - 16 input - 30 LEDs signalling
Product weight: 1.81 lb(US) (0.82 kg)
Range of product: Preventa Safety automation
IP degree of protection: IP20 conforming to EN/IEC 60529
Standards: EN 1760-1/ISO 13856-1, EN 574/ISO 13851, EN 954-1/EN/ISO 13849-1, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 61496-1, IEC 61508
Width: 2.91 in (74 mm)
Height: 5.96 in (151.5 mm)
Depth: 6.02 in (153 mm)
[Ui] rated insulation voltage: 300 V, degree of pollution 2 conforming to IEC 60647-5-1, DIN VDE 0110 part 1
[Uimp] rated impulse withstand voltage: 4 kV overvoltage category III conforming to IEC 60647-5-1, DIN VDE 0110 part 1
Mounting support: Mounting plate
[Ith] conventional free air thermal current: <= 16 A for relay output, <= 6.5 A for static output circuit
[Uc] control circuit voltage: 28.8 V
[Us] rated supply voltage: 24 V DC - 20...20 %
Associated fuse rating: 16 A gL for power supply, 4 A gL for relay output, 6 A fast blow for relay output
Response time: Configurable : 20 ms or 30 ms with software XPSMCWIN
Breaking capacity: 1.5 A/24 V - L/R = 50 ms, DC-13 relay output, 2 A/24 V for static output circuit
Output type: 2 relays, 2 NO contacts (4 NO total) circuit(s), Solid state, 6 circuit(s), volt-free
Function of module: Dynamic monitoring of hydraulic valves on linear presses, Eccentric press, Emergency stop monitoring, with or without time delay, 1 or 2-channel wiring, Enabling switch monitoring, 2 or 3 contacts, Foot switch monitoring, Guard monitoring for injection presses and blowing machines, Guard monitoring with 1 or 2 limit switches, Hydraulic press, Magnetic switch monitoring, Monitoring safety stop at top dead centre on eccentric press, Muting function of light curtains, Position selector, Safety mat monitoring, Safety time delays, Shaft/chain breaking monitor, Zero speed detection, Light curtain monitoring (category 4) conforming to EN/IEC 61496, Two-hand control (category 3) conforming to EN 574/ISO 13851
Product or component type: Configurable safety controller
Synchronisation time between inputs: Depending on configuration selected
Ambient air temperature for operation: 14...131 F (-10...55 C)

Safety module name: XPSMC
power consumption in W: 12 W
Ambient air temperature for storage: -13...185 F (-25...85 C)
Safety use category: Category 4 maximum conforming to EN 954-1/EN/ISO 13849-1, PLE maximum conforming to EN/ISO 13849-1, SIL 3 maximum conforming to IEC 61508
Input protection type: External fuse 16 A
Type of start: Configurable
Line resistance: 100 Ohm 2000 m
Product certifications: CSA, TV, UL
Number of inputs: 16
Communication port protocol: Modbus with 1 RJ45 port(s), serial link, transmission rate: 1200 bps, 2400 bps, 4800 bps, 9600 bps or 19200 bps
Output thermal current: 4 A for both outputs simultaneously, 6 A for 1 output and 2 A for the other relay output
Safety level: Can reach PL e/category 4 conforming to EN 954-1/EN/ISO 13849-1, Can reach SIL 3 conforming to IEC 61508
Minimum output current: 10 mA relay output
Minimum output voltage: 17 V relay output
Method of access: Slave
Exchange size: 14 words
Number of addresses: 1...247 Modbus
Parity: Even Modbus, No Modbus, Odd Modbus
Data format: 1 start bit/8 data bits, 1 stop bit even or odd, 2 stop bits without parity, RTU (Remote Terminal Unit) mode
Supported modbus function: 01: 8-bit output data/32-bit input data, 02: 32-bit input data/8-bit output data, 03: information and errors
Local signalling: 30 LEDs
