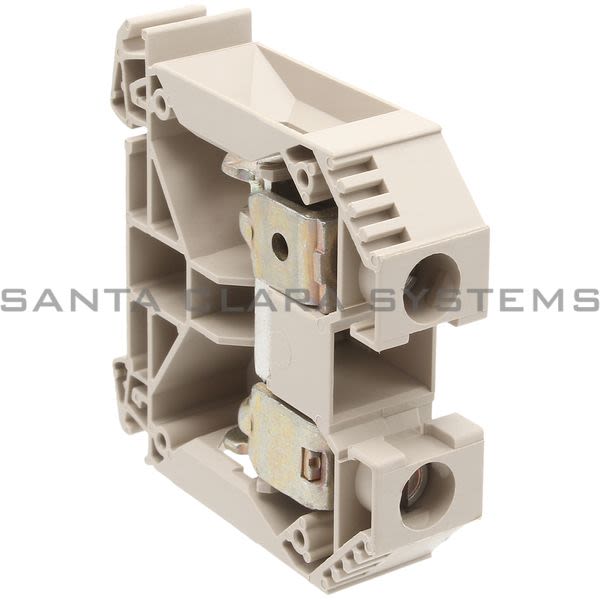

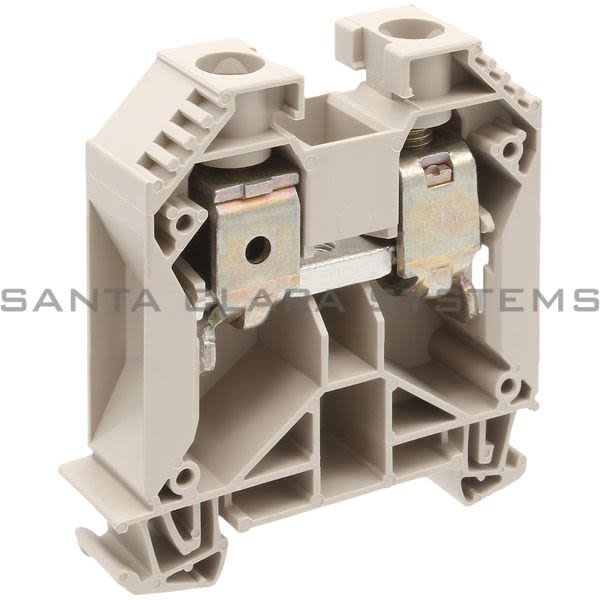

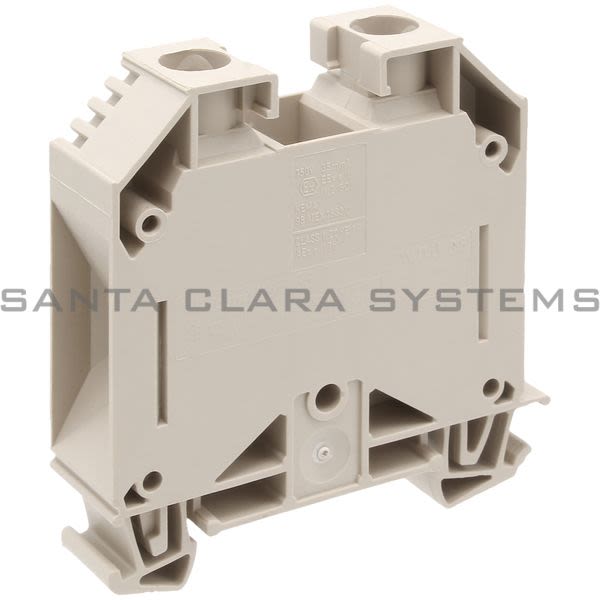

Weidmuller - Terminal Block | WDU 35

Product Summary:

Type: WDU 35
Version: Feed-through terminal, Screw connection, 35 mm, 1000 V, 125 A, dark beige
GTIN (EAN): 4008190077013
Width: 16 mm
Width (inches): 0.63 inch

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Terminal Block | WDU 35
Type: WDU 35
Version: Feed-through terminal, Screw connection, 35 mm, 1000 V, 125 A, dark beige
GTIN (EAN): 4008190077013
Width: 16 mm
Width (inches): 0.63 inch
Height: 60 mm
Height (inches): 2.362 inch
Depth: 62.5 mm
Depth (inches): 2.461 inch
Depth including DIN rail: 63 mm
Weight: 54 g
Net weight: 51.38 g
Material: Wemid

Color: dark beige
UL 94 flammability rating: V-0
Certificate No. (ATEX): DEMKO14ATEX1338U
Certificate No. (IECEX): IECEXULD14.0005U
Max. voltage (ATEX): 690 V
Current (ATEX): 115 A
Wire cross section max. (ATEX): 35 mm
Max. voltage (IECEX): 690 V
Current (IECEX): 115 A
Wire cross section max. (IECEX): 35 mm
Operating temperature range: For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Marking EN 60079-7: Ex eb II C Gb
Ex 2014/34/EU label: II 2 G D

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1020500000 . Santa Clara Systems carries 517 items from Weidmuller.
