1561060000

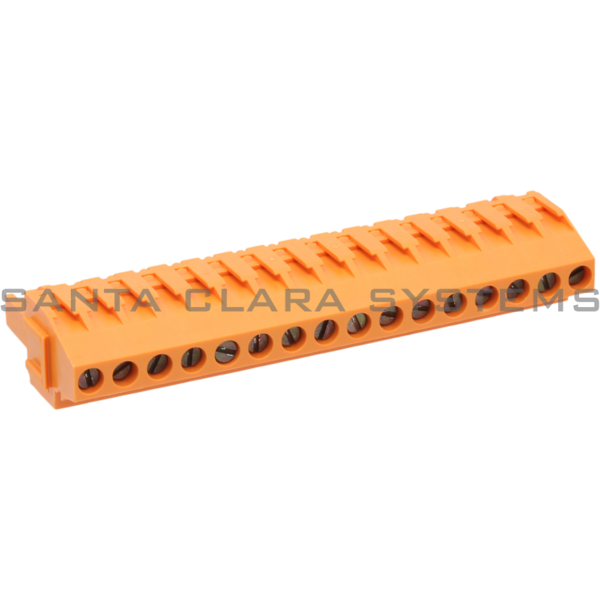

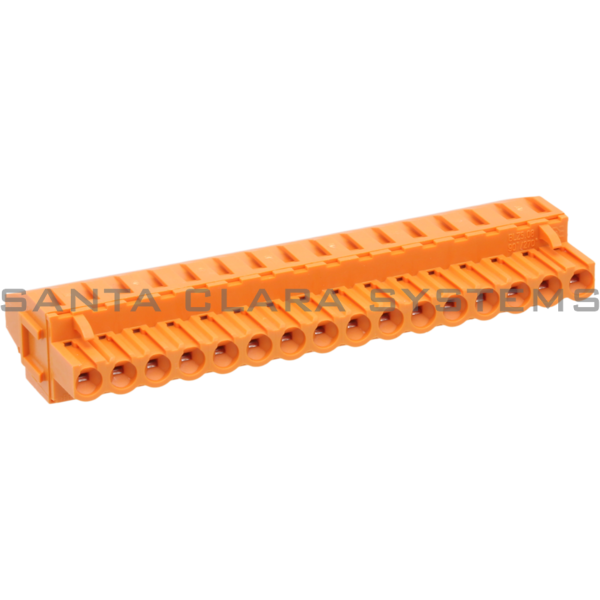

Weidmuller - Terminal Block Plug | BLZ 5.08/16/270B SN OR

Product Summary:

Alternative product: 1950450000
Type: BLZ 5.08/16/270B SN OR BX
GTIN (EAN): 4008190091613
Width: 83.28 mm
Width (inches): 3.279 inch

Current response time:

4 Minutes 57 Seconds

Description: Terminal Block Plug | BLZ 5.08/16/270B SN OR
Alternative product: 1950450000
Type: BLZ 5.08/16/270B SN OR BX
Version: PCB plug-in connector, female plug, 5.08 mm, No. of poles: 16, 270, Clamping yoke connection, Clamping range, max. : 3.31 mm, Box
GTIN (EAN): 4008190091613
Width: 83.28 mm
Width (inches): 3.279 inch
Height: 14.1 mm
Height (inches): 0.555 inch
Depth: 26.9 mm
Depth (inches): 1.059 inch
Net weight: 32.278 g
Insulating material: PBT
Color: orange
Color chart (similar): RAL 2000
Insulating material group: IIIa

CTI: 200
Insulation strength: 108
UL 94 flammability rating: V-0
GWFI: 960 C
Contact material: Copper alloy
Contact surface: tinned
Layer structure of plug contact: 4-8 m Sn hot-dip tinned
Storage temperature, min.: -25 C
Storage temperature, max.: 55 C
Max. relative humidity during storage: 80%
Operating temperature, min.: -50 C
Operating temperature, max.: 100 C
Temperature range, installation, min.: -25 C
Temperature range, installation, max.: 100 C
Tightening torque (cross-connector): 0.4...0.8 Nm
