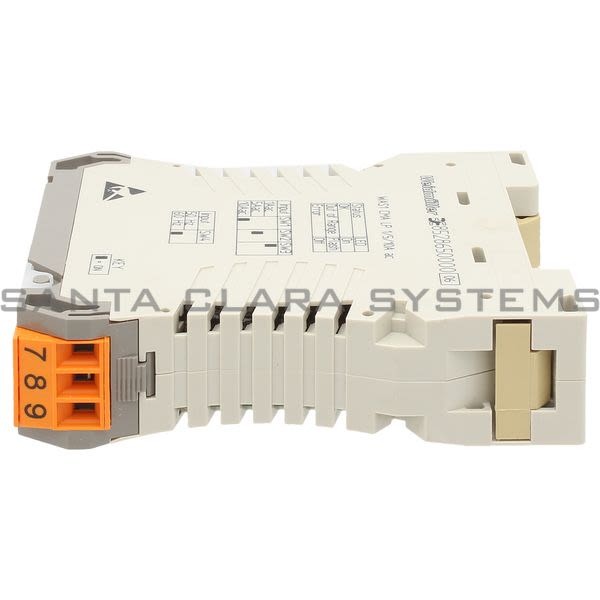

• Weidmuller 8528650000 Current Monitor | WAS1 CMA LP 1/5/10A AC Product Image

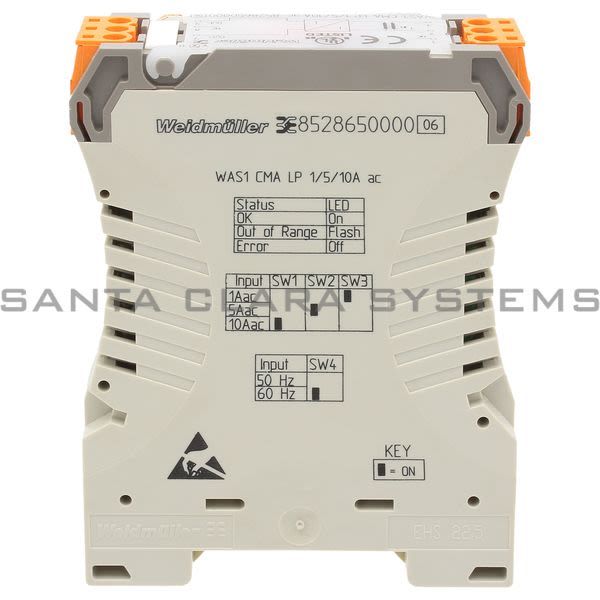

  • Weidmuller 8528650000 Current Monitor | WAS1 CMA LP 1/5/10A AC Product Image

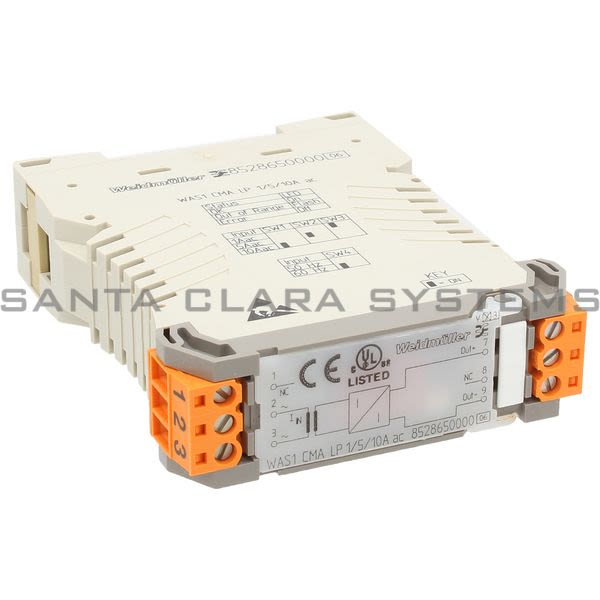

  • Weidmuller 8528650000 Current Monitor | WAS1 CMA LP 1/5/10A AC Product Image

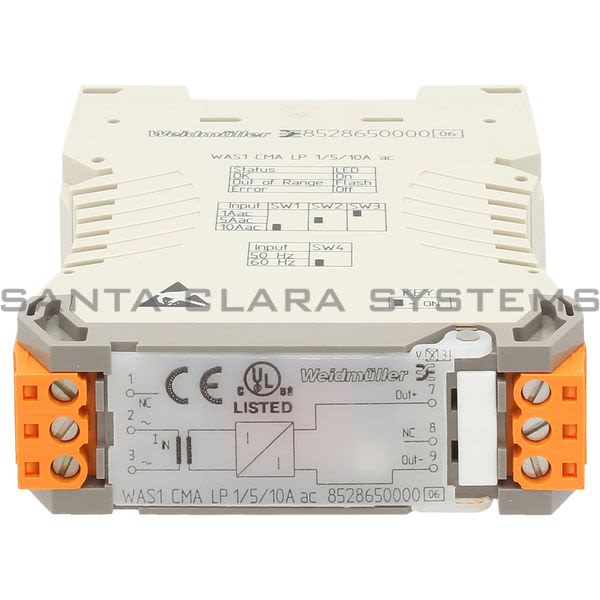

  • Weidmuller 8528650000 Current Monitor | WAS1 CMA LP 1/5/10A AC Product Image
  • Weidmuller 8528650000 Barcode

8528650000

Product Summary:

  • Number of inputs: 1
  • Input current: 0...1 A AC/ 0...5 A AC/ 0...10 A AC
  • Input frequency: 50...60Hz
  • Number of outputs: 1
  • Output signal limit: Approx. 24 mA
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Current Monitor | WAS1 CMA LP 1/5/10A AC
  • Number of inputs: 1
  • Input current: 0...1 A AC/ 0...5 A AC/ 0...10 A AC
  • Input frequency: 50...60Hz
  • Number of outputs: 1
  • Output signal limit: Approx. 24 mA
  • Output current: 4...20 mA (current loop)
  • Load impedance current: 600
  • Offset current: max. 100 A
  • Status indicator: LED ON: OK; LED flashing: Signal out of range; LED OFF: Error
  • Accuracy: 0.5 % FSR
  • Configuration: DIP switch
  • Galvanic isolation: 2-way isolator
  • Input/Output: 1 /5/ 10 A AC / 4...20 mA (current loop)
  • Rail: TS 35
  • Step response time: typ. 700 ms
  • Temperature coefficient: 200 ppm/K
  • Voltage supply: 13...30 V DC, via output current loop
  • Type: WAS1 CMA LP 1/5/10A ac
  • Version: WAVESERIES, Current monitoring, 0...1 A AC/ 0...5 A AC/ 0...10 A AC, 1, 1, Screw connection
  • GTIN (EAN): 4032248160426
  • Length: 72 mm
  • Length (inches): 2.835 inch
  • Width: 22.5 mm
  • Width (inches): 0.886 inch
  • Depth: 112.4 mm
  • Depth (inches): 4.425 inch
  • Weight: 150 g
  • Net weight: 100.7 g
  • Material: Wemid
  • Color: dark beige
  • UL 94 flammability rating: V-0
  • Certificate No. (ATEX): DEMKO14ATEX1389U
  • Certificate No. (IECEX): IECEXUL14.0097U
  • Current (ATEX): 6.3 A
  • Wire cross section max. (ATEX): 6 mm
  • Current (IECEX): 6.3 A
  • Wire cross section max. (IECEX): 6 mm
  • Marking EN 60079-7: Ex ec II C Gc
  • Ex 2014/34/EU label: II 3 G D
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 8528650000 . Santa Clara Systems carries 552 items from Weidmuller.
  • 1
  • Screw Connection
  • Waveseries
  • Current Monitoring
  • 0...1 A Ac/ 0...5 A Ac/ 0...10 A Ac
  • 1
