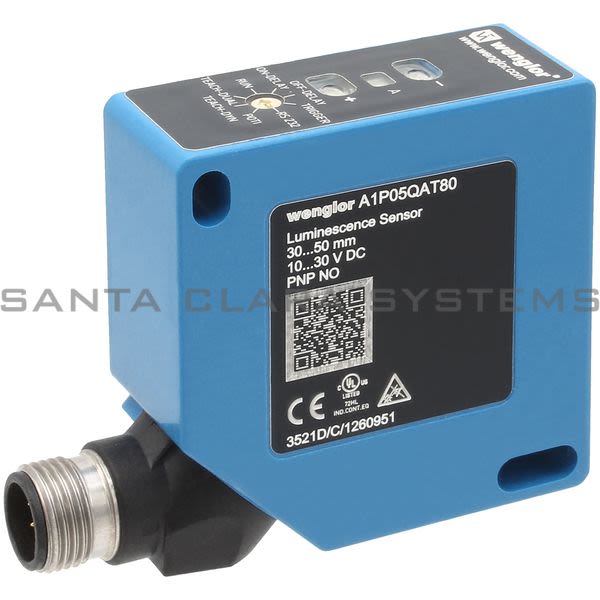

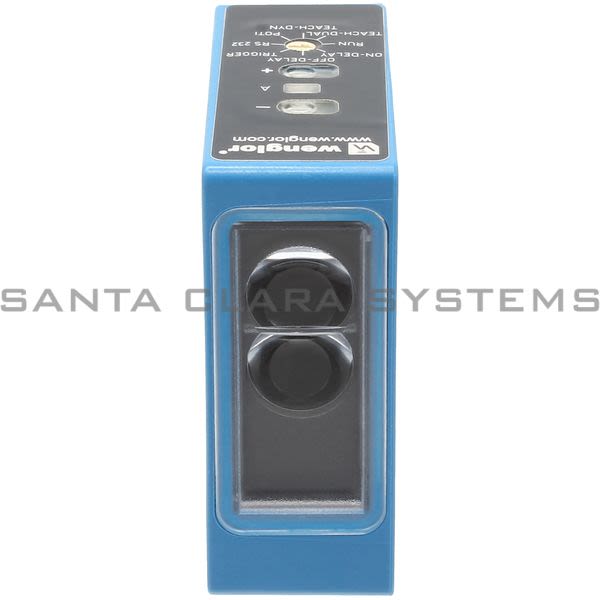

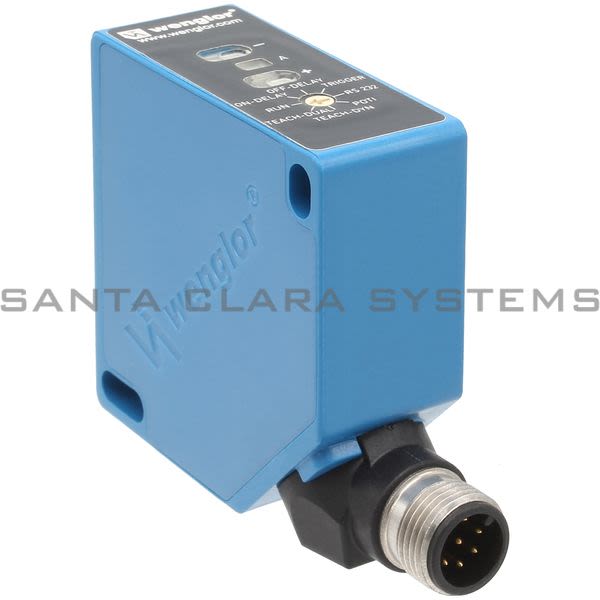

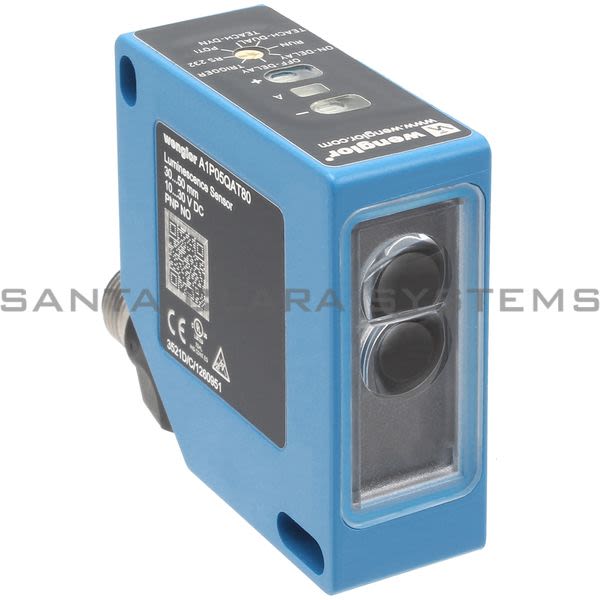

A1P05QAT80

Wenglor - Luminescence Sensor

Product Summary:

Voltage: 120VAC
Supply Voltage: 10...30 V DC
Current Consumption (Ub = 24 V): < 50 mA
Switching Frequency: 2500 Hz
Response Time: 200 µs

Current response time:

13 Minutes 35 Seconds

Description: Luminescence Sensor
Voltage: 120VAC
Supply Voltage: 10...30 V DC
Current Consumption (Ub = 24 V): < 50 mA
Switching Frequency: 2500 Hz
Response Time: 200 µs
On-/Off-Delay: 0...100 ms
Temperature Drift: < 1 %
Temperature Range: -25...60 °C
Number of Switching Outputs: 2

Switching Output Voltage Drop: 1,5 V
Switching Output/Switching Current: 200 mA
Short Circuit Protection: yes
Reverse Polarity Protection: yes
Lockable: yes
Teach Mode: ZT, DT, TP
Interface: RS-232
Baud Rate: 38400 Bd
Number of Digital Inputs: 2
Protection Class: III

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on A1P05QAT80 . Santa Clara Systems carries 3,874 items from Wenglor.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
