I08H005
Product Summary:
- Supply Voltage: 10...30 V DC
- Current Consumption (Ub = 24 V): < 9 mA
- Switching Frequency: 1070 Hz
- Temperature Drift: < 10 %
- Temperature Range: -40...80 C
Get a Quote
Current response time:
9 Minutes 3 Seconds

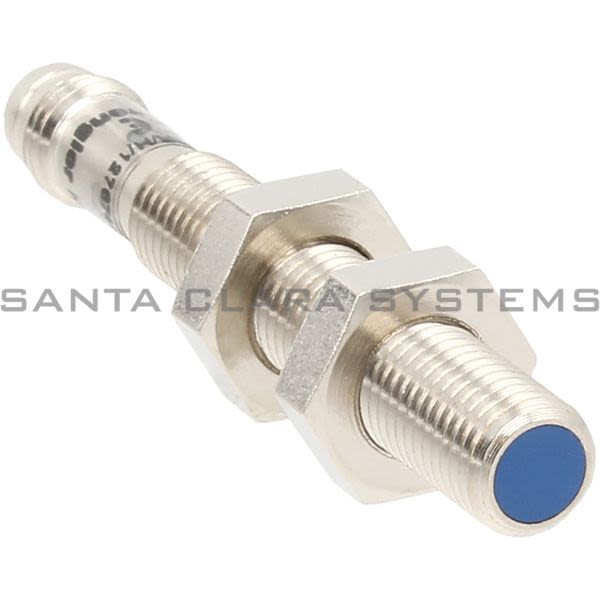

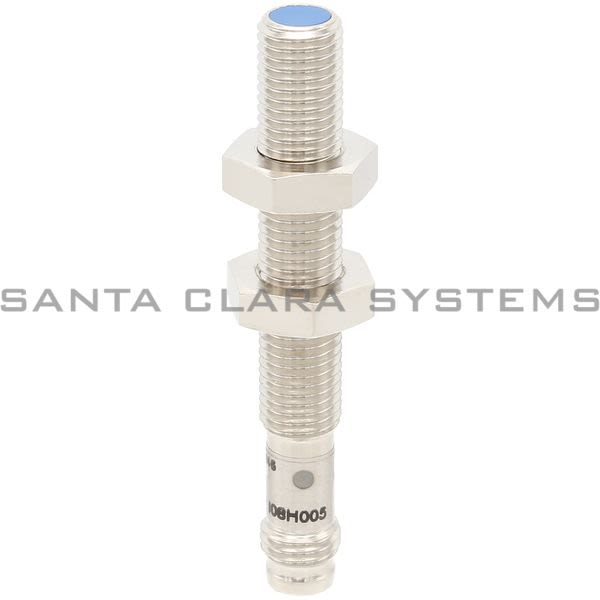

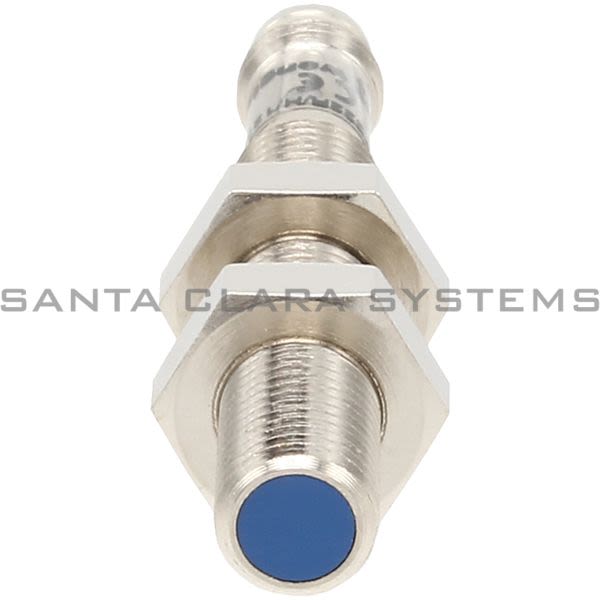

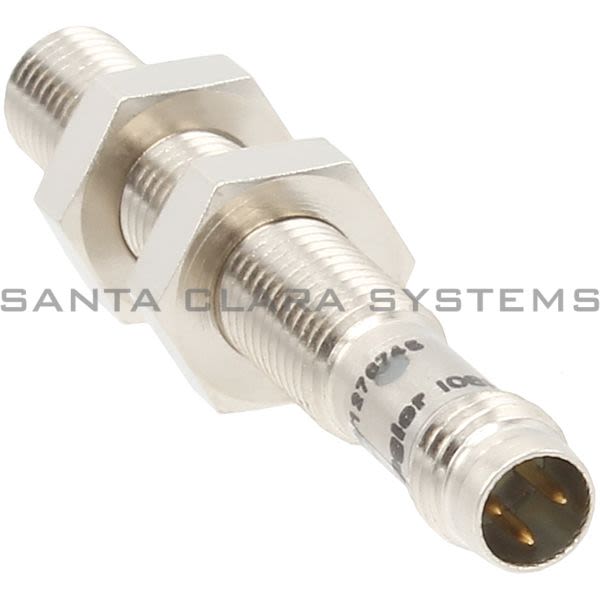

- Description: Inductive Sensor with Increased Switching Distance
- Supply Voltage: 10...30 V DC
- Current Consumption (Ub = 24 V): < 9 mA
- Switching Frequency: 1070 Hz
- Temperature Drift: < 10 %
- Temperature Range: -40...80 C
- Switching Output Voltage Drop: < 1 V
- Switching Output/Switching Current: 150 mA
- Residual Current Switching Output: < 100 A
- Short Circuit Protection: yes
- Reverse Polarity and Overload Protection: yes
- Protection Class: III
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on I08H005 . Santa Clara Systems carries 3,326 items from Wenglor.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
