I08H025

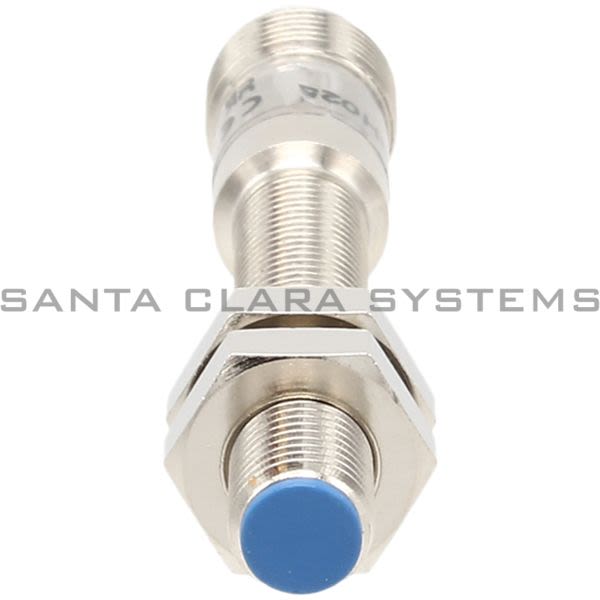

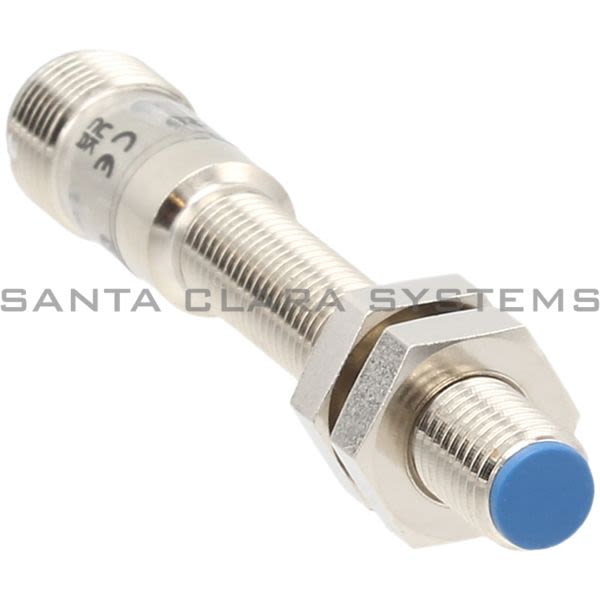

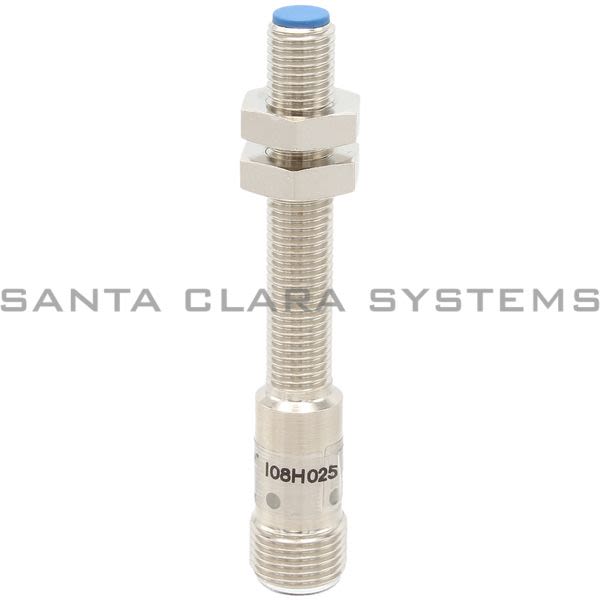

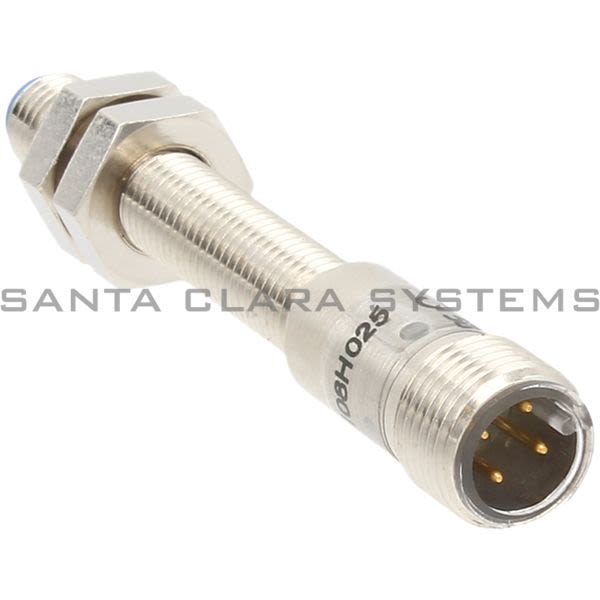

Wenglor - Inductive Sensor with IO-Link

Product Summary:

Supply Voltage: 10...30 V DC
Supply Voltage with IO-Link: 18...30 V DC
Current Consumption (Ub = 24 V): < 12 mA
Switching Frequency: 760 Hz
Temperature Drift: < 10 %

Current response time:

6 Minutes 53 Seconds

Description: Inductive Sensor with IO-Link
Supply Voltage: 10...30 V DC
Supply Voltage with IO-Link: 18...30 V DC
Current Consumption (Ub = 24 V): < 12 mA
Switching Frequency: 760 Hz
Temperature Drift: < 10 %
Temperature Range: -40...80 °C

Switching Output Voltage Drop: < 1 V
Switching Output/Switching Current: 150 mA
Residual Current Switching Output: < 100 µA
Short Circuit Protection: yes
Reverse Polarity and Overload Protection: yes
Interface: IO-Link V1.1
Protection Class: III

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on I08H025 . Santa Clara Systems carries 3,831 items from Wenglor.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
