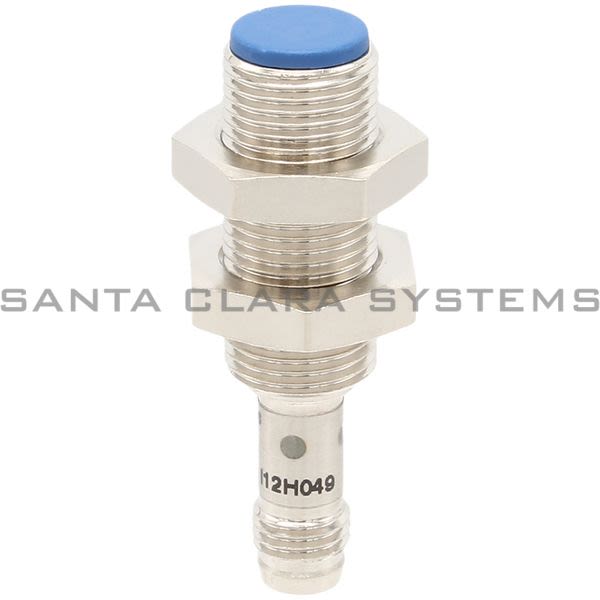

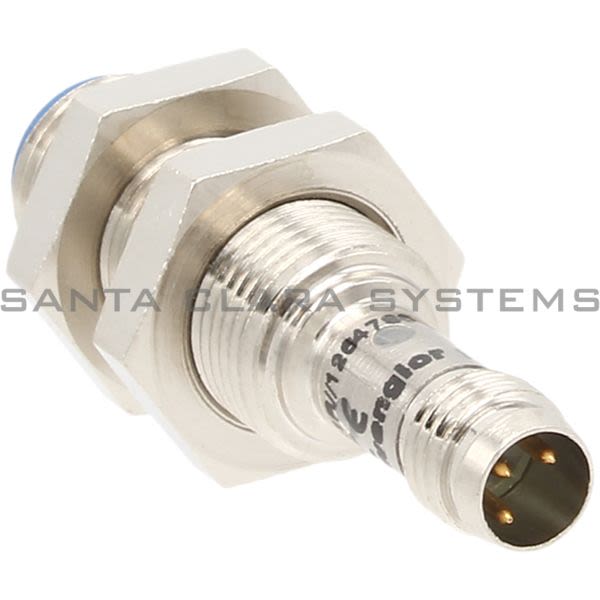

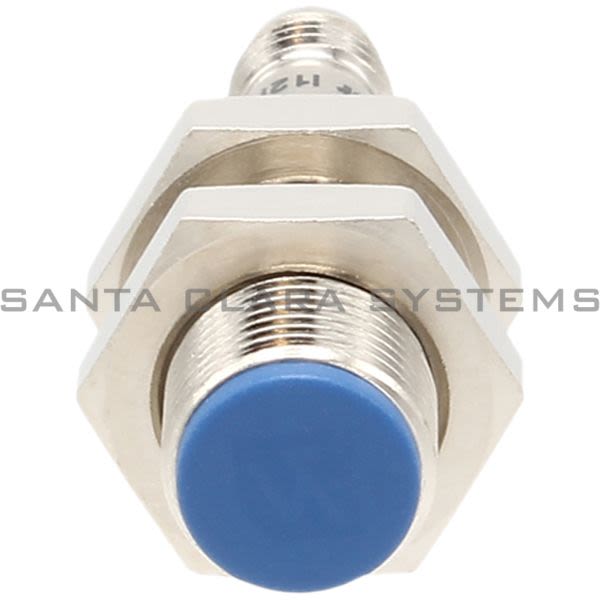

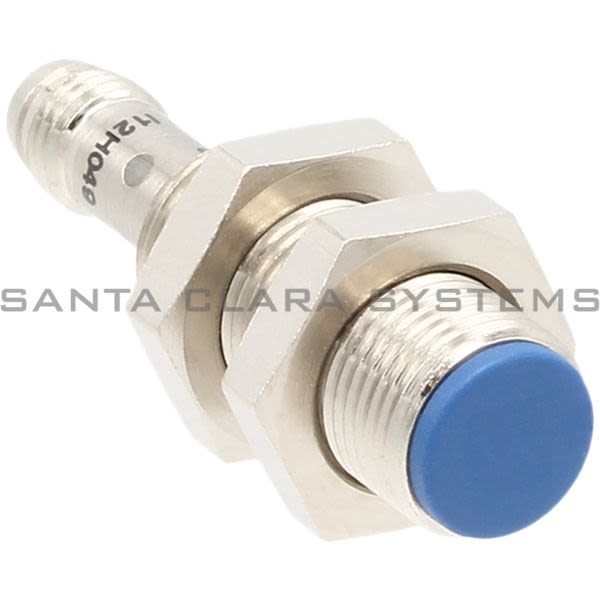

I12H049

Wenglor - Inductive Sensor with Increased Switching Distance

Product Summary:

Switching Distance: 6 mm
Correction Factors Stainless Steel V2A/CuZn/Al: 0,97/0,53/0,51
Mounting: semi-flush
Mounting A/B/C/D in mm: 12/20/18/4
Mounting B1 in mm: 0...5

Current response time:

18 Minutes 54 Seconds

Description: Inductive Sensor with Increased Switching Distance
Switching Distance: 6 mm
Correction Factors Stainless Steel V2A/CuZn/Al: 0,97/0,53/0,51
Mounting: semi-flush
Mounting A/B/C/D in mm: 12/20/18/4
Mounting B1 in mm: 0...5
Switching Hysteresis: < 10 %
Supply Voltage: 10 ... 30 V DC
Current Consumption (Ub = 24 V): < 8 mA

Switching Frequency: 570 Hz
Temperature Drift: < 10 %
Temperature Range: -40 ... 80 °C
Switching Output Voltage Drop: < 1 V
Switching Output/Switching Current: 150 mA
Residual Current Switching Output: < 100 µA
Short Circuit Protection: yes
Reverse Polarity and Overload Protection: Yes
Protection Class: III
