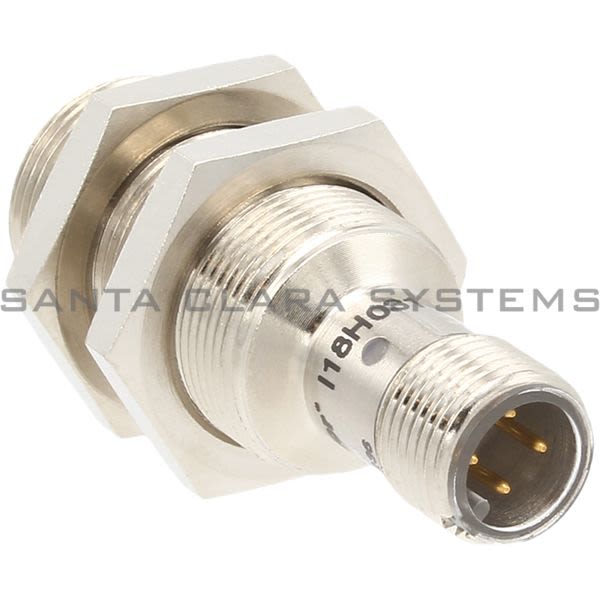

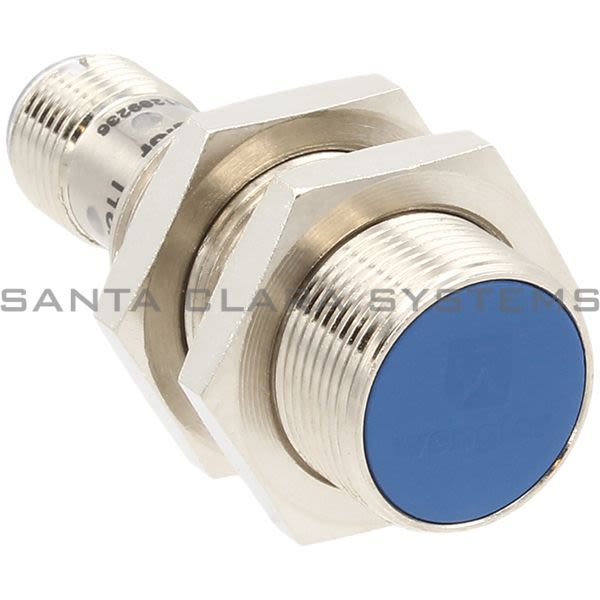

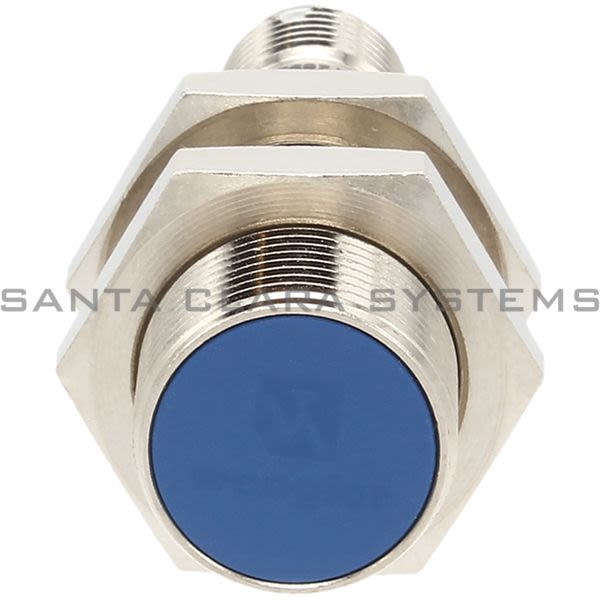

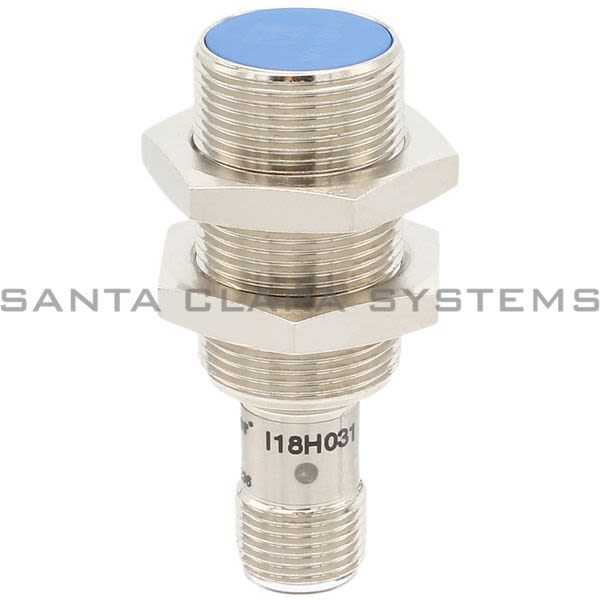

I18H031

Wenglor - Inductive Sensor

Product Summary:

Switching Distance: 8 mm
Correction Factors Stainless Steel V2A/CuZn/Al: 0,91/0,45/0,43
Mounting: flush
Mounting A/B/C/D in mm: 0/24/24/0
Mounting B1 in mm: 2...14

Current response time:

7 Minutes 28 Seconds

Description: Inductive Sensor
Switching Distance: 8 mm
Correction Factors Stainless Steel V2A/CuZn/Al: 0,91/0,45/0,43
Mounting: flush
Mounting A/B/C/D in mm: 0/24/24/0
Mounting B1 in mm: 2...14
Switching Hysteresis: < 10 %
Supply Voltage: 10 ... 30 V DC
Current Consumption (Ub = 24 V): < 6 mA

Switching Frequency: 590 Hz
Temperature Drift: < 10 %
Temperature Range: -40 ... 80 °C
Switching Output Voltage Drop: < 1 V
Switching Output/Switching Current: 150 mA
Residual Current Switching Output: < 100 µA
Short Circuit Protection: yes
Reverse Polarity and Overload Protection: Yes
Protection Class: III
