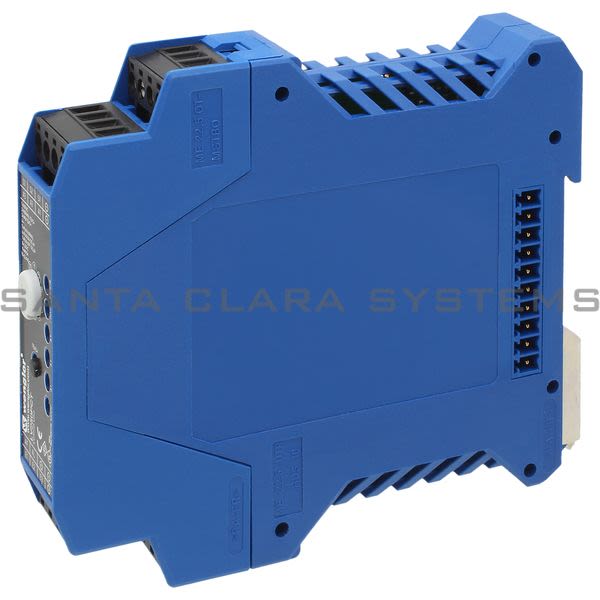

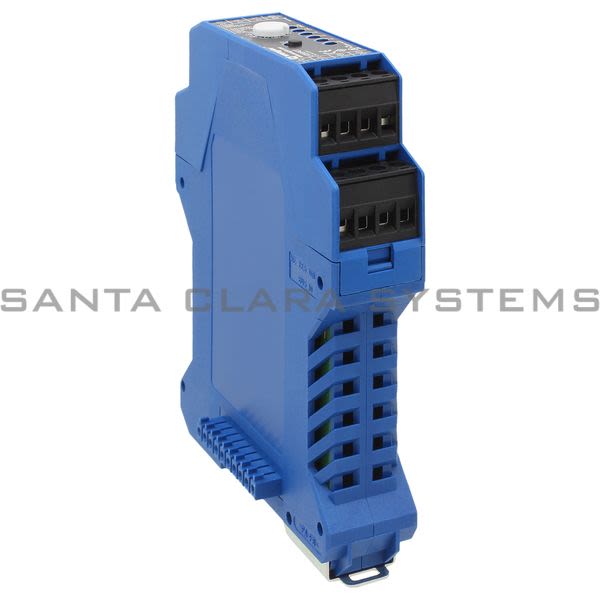

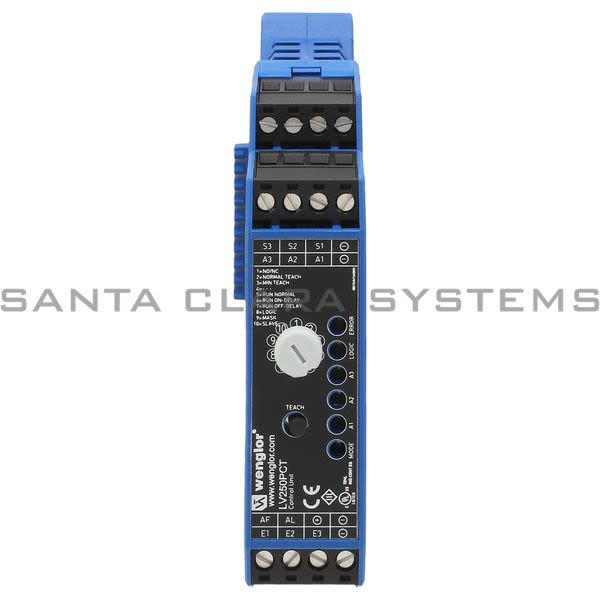

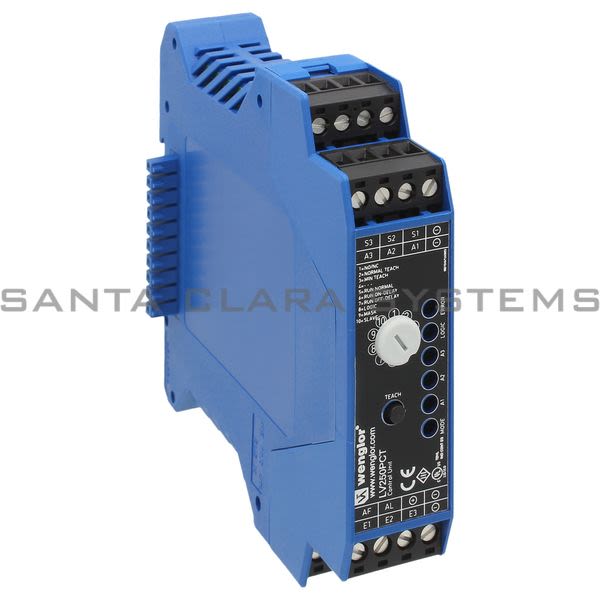

LV250PCT

Wenglor - Control Unit for Through-Beam Sensors

Product Summary:

Supply Voltage: 18...30 V
Current Consumption (Ub = 24 V): 120 mA
Switching Frequency: 250 Hz
Response Time: 4 ms
On-/Off-Delay: 50 ms

Current response time:

8 Minutes 3 Seconds

Description: Control Unit for Through-Beam Sensors
Supply Voltage: 18...30 V
Current Consumption (Ub = 24 V): 120 mA
Switching Frequency: 250 Hz
Response Time: 4 ms
On-/Off-Delay: 50 ms
Temperature Drift: < 10 %
Temperature Range: -25...60 �C
Switching Output Voltage Drop: < 2 / 5 V
Switching Output/Switching Current: 200 mA

Error Output/Switching Current: 200 mA
Short Circuit Protection: yes
Reverse Polarity Protection: yes
Overload Protection: yes
Teach Mode: NT MT
Cascadable: yes
Logic Output: AND / OR
External teach-in input: yes
Protection Class: III

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LV250PCT . Santa Clara Systems carries 3,874 items from Wenglor.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
