P1KE007

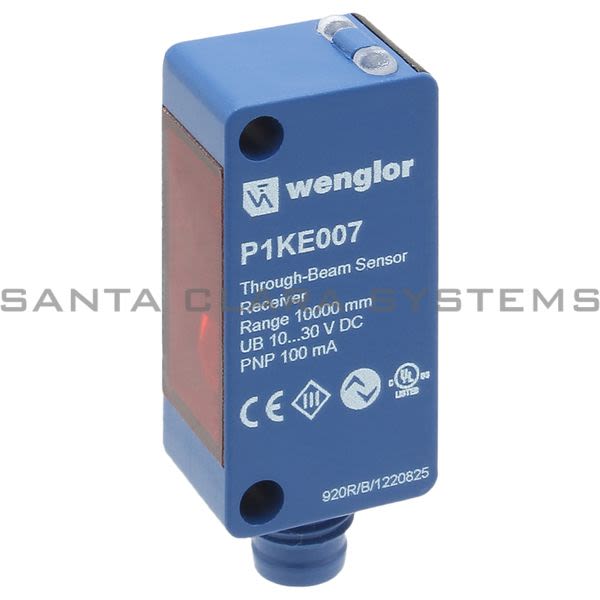

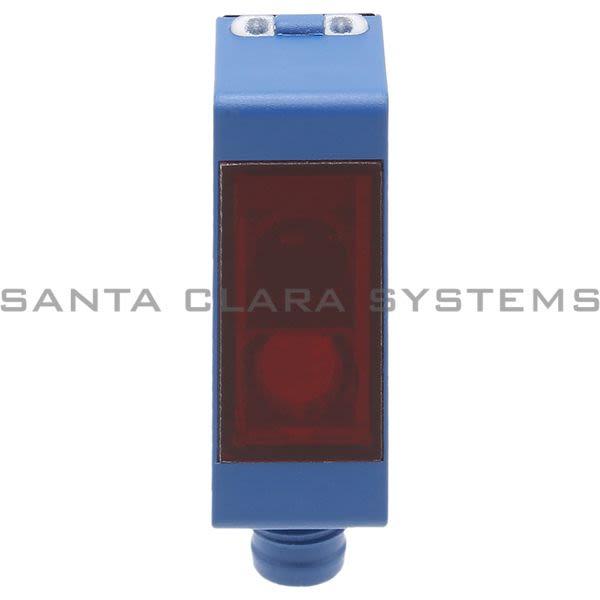

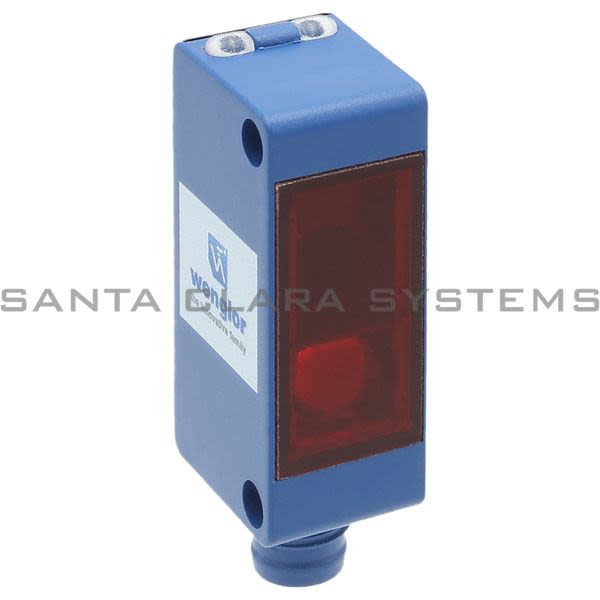

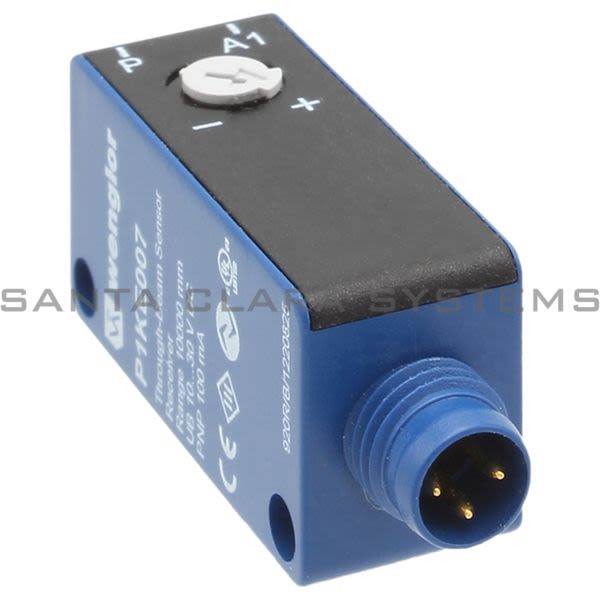

Wenglor - Through-Beam Sensor

Product Summary:

Range: 10000 mm
Switching Hysteresis: < 10 %
Light Source: Laser (red)
Service Life (T = +25 C): 100000 h
Laser Class (EN 60825-1): 1

Current response time:

10 Minutes 55 Seconds

Description: Through-Beam Sensor
Range: 10000 mm
Switching Hysteresis: < 10 %
Light Source: Laser (red)
Service Life (T = +25 C): 100000 h
Laser Class (EN 60825-1): 1
Max. Ambient Light: 10000 Lux
Sensor Type: Receiver
Supply Voltage: 10...30 V DC
Supply Voltage with IO-Link: 18...30 V DC
Current Consumption (Ub = 24 V): < 15 mA
Switching Frequency: 4500 Hz

Switching Frequency (interference-free mode): 2000 Hz
Response Time: 0,11 ms
Response time (interference-free mode): 0,25 ms
Temperature Drift (-10 C < Tu < 40 C): 10 % *
Temperature Range: -40...60 C
Switching Output Voltage Drop: < 2 V
Switching Output/Switching Current: 100 mA
Residual Current Switching Output: < 50 A
Short Circuit and Overload Protection: yes
Reverse Polarity Protection: yes
Interface: IO-Link V1.1
Protection Class: III
