P1KK001

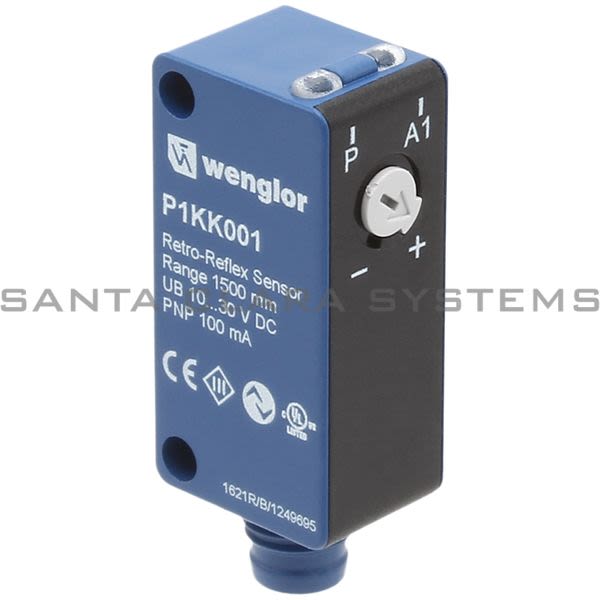

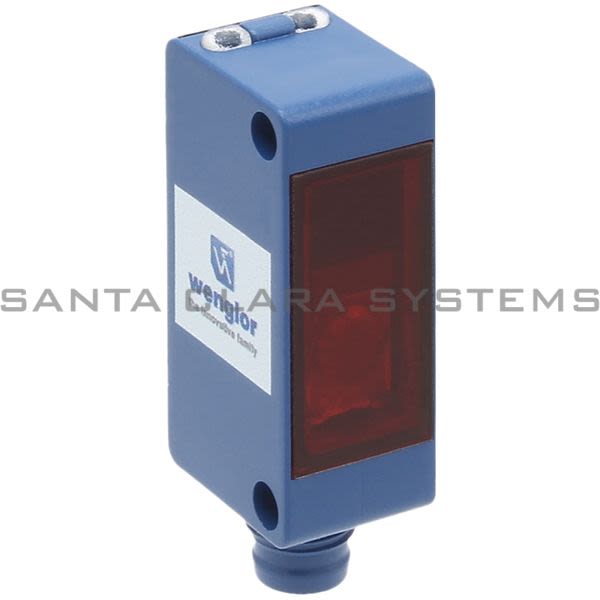

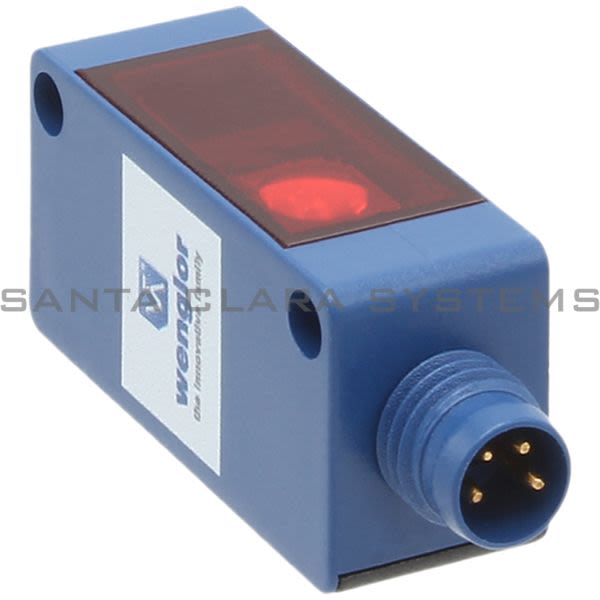

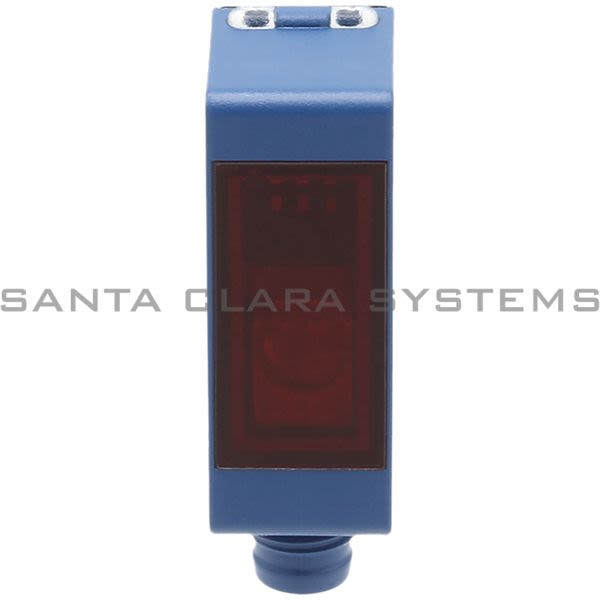

Wenglor - Retro-Reflex Sensor for Transparent Objects

Product Summary:

Range: 1500 mm
Reference Reflector/Reflector Foil: RQ100BA
Clear Glass Recognition: yes
Switching Hysteresis: < 5 %
Light Source: Red Light

Current response time:

11 Minutes 54 Seconds

Description: Retro-Reflex Sensor for Transparent Objects
Range: 1500 mm
Reference Reflector/Reflector Foil: RQ100BA
Clear Glass Recognition: yes
Switching Hysteresis: < 5 %
Light Source: Red Light
Polarization Filter: yes
Service Life (T = +25 °C): 100000 h
Max. Ambient Light: 10000 Lux
Supply Voltage: 10...30 V DC
Supply Voltage with IO-Link: 18...30 V DC
Current Consumption (Ub = 24 V): < 20 mA
Switching Frequency: 2000 Hz

Switching frequency (speed mode): 3500 Hz
Response Time: 0,25 ms
Response time (speed mode): 0,14 ms
Temperature Drift: < 5 %
Temperature Range: -40...60 °C
Switching Output Voltage Drop: < 2 V
Switching Output/Switching Current: 100 mA
Residual Current Switching Output: < 50 µA
Short Circuit and Overload Protection: yes
Reverse Polarity Protection: yes
Lockable: yes
Interface: IO-Link V1.1
Protection Class: III
