P1KL008
In stock and ready to ship
Product Summary:
- Supply Voltage: 10...30 V DC
- Supply Voltage with IO-Link: 18...30 V DC
- Current Consumption (Ub = 24 V): < 15 mA
- Switching Frequency: 2000 Hz
- Switching frequency (speed mode): 4000 Hz

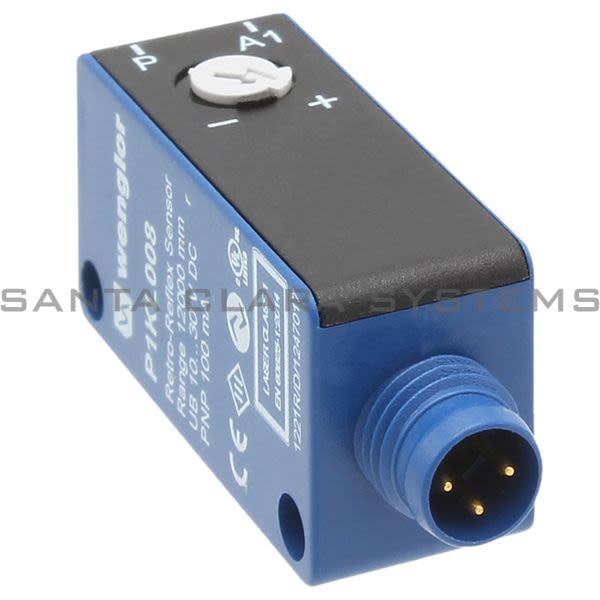

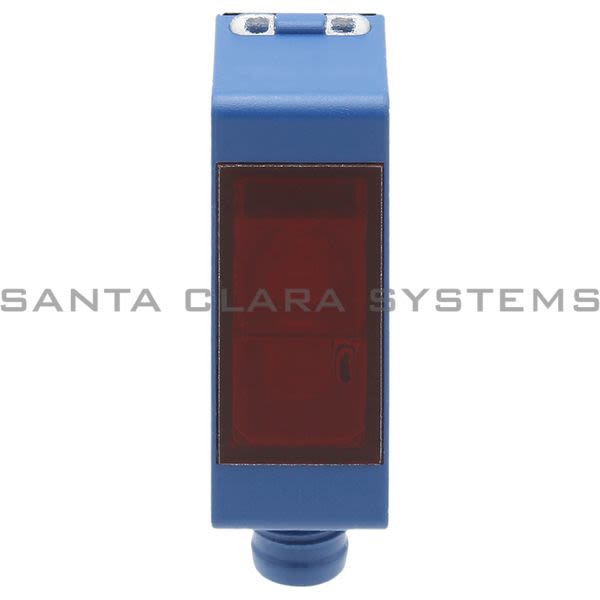

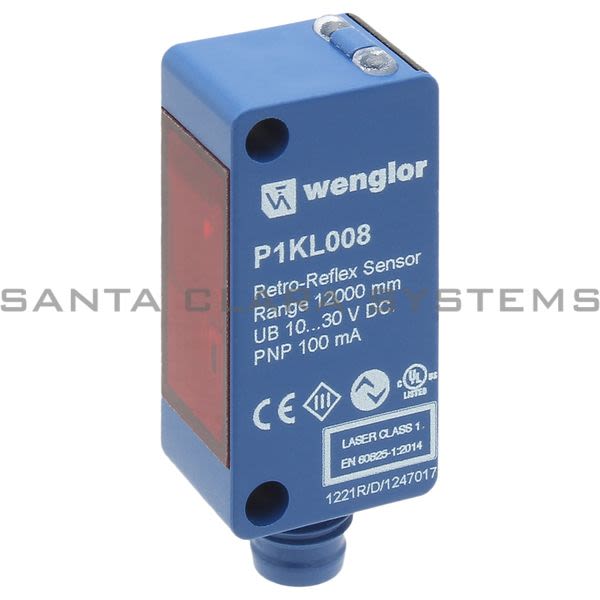

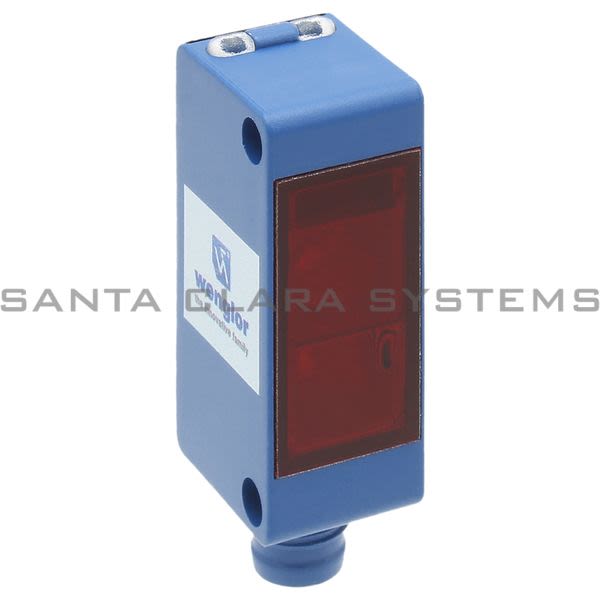

- Description: Retro-Reflex Sensor
- Supply Voltage: 10...30 V DC
- Supply Voltage with IO-Link: 18...30 V DC
- Current Consumption (Ub = 24 V): < 15 mA
- Switching Frequency: 2000 Hz
- Switching frequency (speed mode): 4000 Hz
- Response Time: 0,25 ms
- Response time (speed mode): 0,125 ms
- Temperature Drift: < 10 %
- Temperature Range: -40...60 C
- Switching Output Voltage Drop: < 2 V
- Switching Output/Switching Current: 100 mA
- Residual Current Switching Output: < 50 A
- Short Circuit and Overload Protection: yes
- Reverse Polarity Protection: yes
- Lockable: yes
- Interface: IO-Link V1.1
- Protection Class: III
- FDA Accession Number: 1710976-001
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on P1KL008 . Santa Clara Systems carries 3,326 items from Wenglor.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
