P1KT001

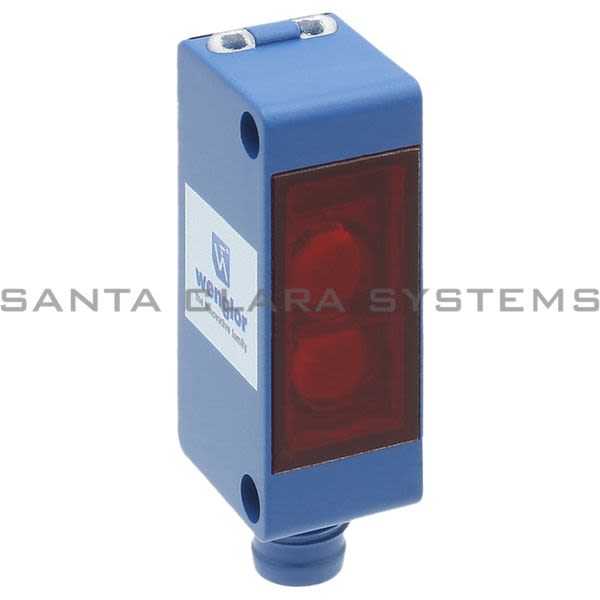

Wenglor - Reflex Sensor Energetic

Product Summary:

Range: 700 mm
Switching Hysteresis: < 10 %
Light Source: Red Light
Service Life (T = +25 C): 100000 h
Max. Ambient Light: 10000 Lux

Current response time:

By 5AM PT on Thursday

Emergency?

Description: Reflex Sensor Energetic
Range: 700 mm
Switching Hysteresis: < 10 %
Light Source: Red Light
Service Life (T = +25 C): 100000 h
Max. Ambient Light: 10000 Lux
Supply Voltage: 10...30 V DC
Supply Voltage with IO-Link: 18...30 V DC
Current Consumption (Ub = 24 V): < 20 mA
Switching Frequency: 500 Hz
Switching frequency (speed mode): 1000 Hz

Response Time: 1 ms
Response time (speed mode): 0,5 ms
Temperature Drift: < 10 %
Temperature Range: -40...60 C
Switching Output Voltage Drop: < 2 V
Switching Output/Switching Current: 100 mA
Residual Current Switching Output: < 50 A
Short Circuit and Overload Protection: yes
Reverse Polarity Protection: yes
Lockable: yes
Interface: IO-Link V1.1

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on P1KT001 . Santa Clara Systems carries 3,326 items from Wenglor.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
