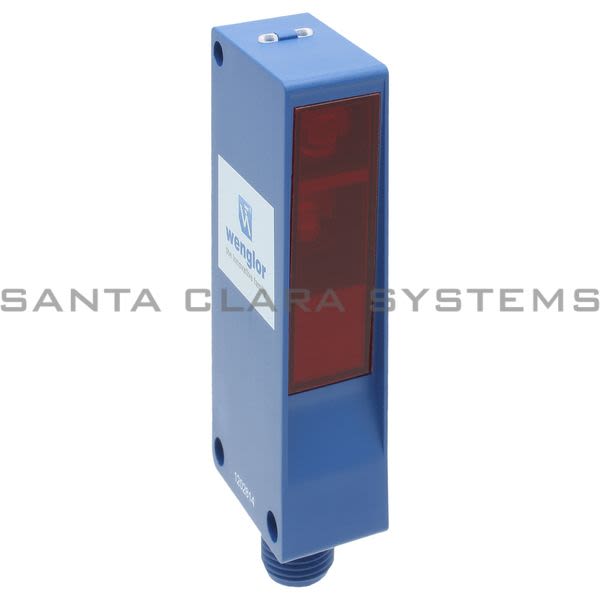

• Wenglor P1NH202 Reflex Sensor with Background Suppression Product Image

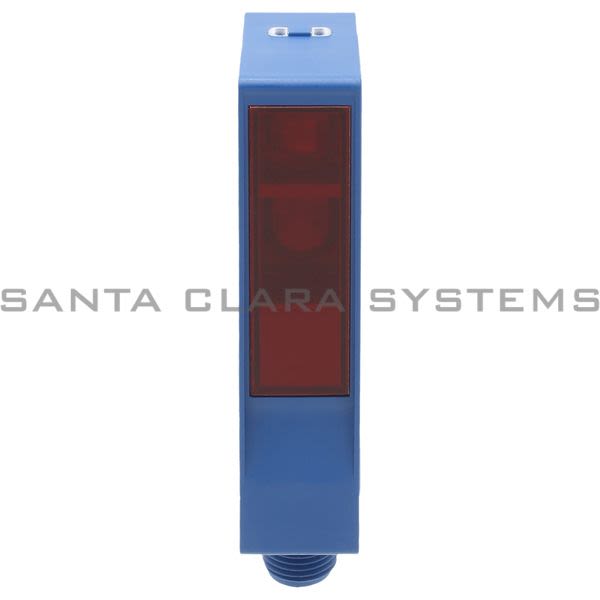

  • Wenglor P1NH202 Reflex Sensor with Background Suppression Product Image

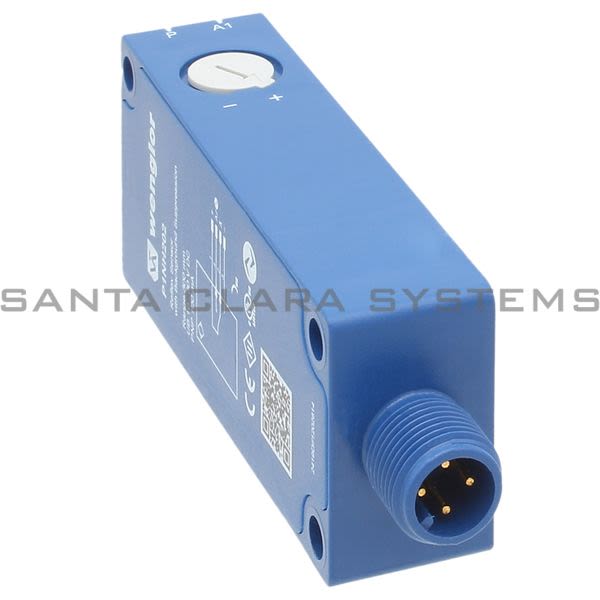

  • Wenglor P1NH202 Reflex Sensor with Background Suppression Product Image

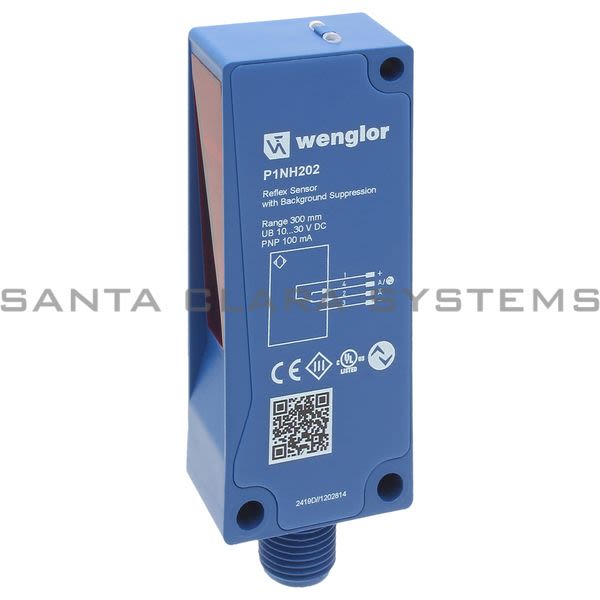

  • Wenglor P1NH202 Reflex Sensor with Background Suppression Product Image
  • Wenglor P1NH202 Barcode

P1NH202

Product Summary:

  • Range: 300 mm
  • Setting Range: 50 ... 300 mm
  • Switching Hysteresis: < 5 %
  • Light Source: Red Light
  • Service Life (T = +25 C): 100,000 h
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Reflex Sensor with Background Suppression
  • Range: 300 mm
  • Setting Range: 50 ... 300 mm
  • Switching Hysteresis: < 5 %
  • Light Source: Red Light
  • Service Life (T = +25 C): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Supply Voltage: 10 ... 30 V DC
  • Supply Voltage with IO-Link: 18 ... 30 V DC
  • Current Consumption (Ub = 24 V): < 25 mA
  • Switching Frequency: 1,000 Hz
  • Switching Frequency (interference-free mode): 500 Hz
  • Response Time: 0.5 ms
  • Response time (interference-free mode): 1 ms
  • Temperature Drift: < 5 %
  • Temperature Range: -40 ... 60 C
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 A
  • Short Circuit Protection: yes
  • Interface: IO-Link V1.1
  • Protection Class: III
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on P1NH202 . Santa Clara Systems carries 3,781 items from Wenglor.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
