P1NL401

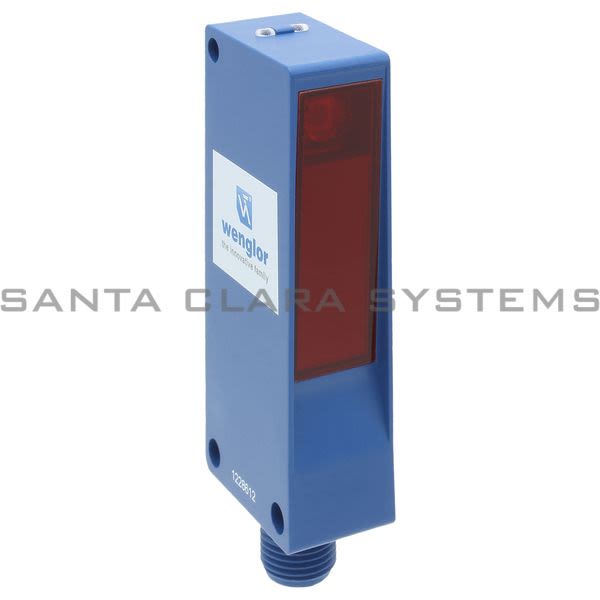

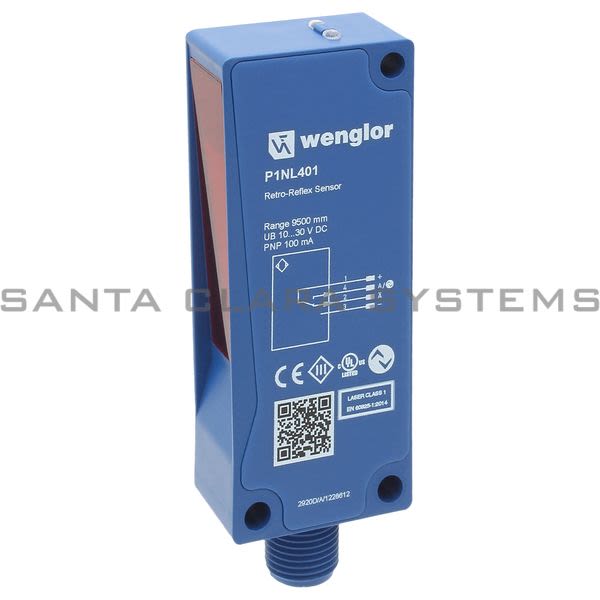

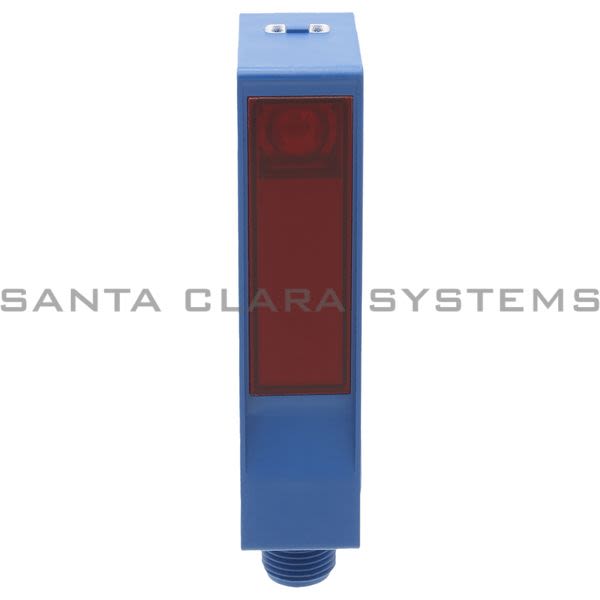

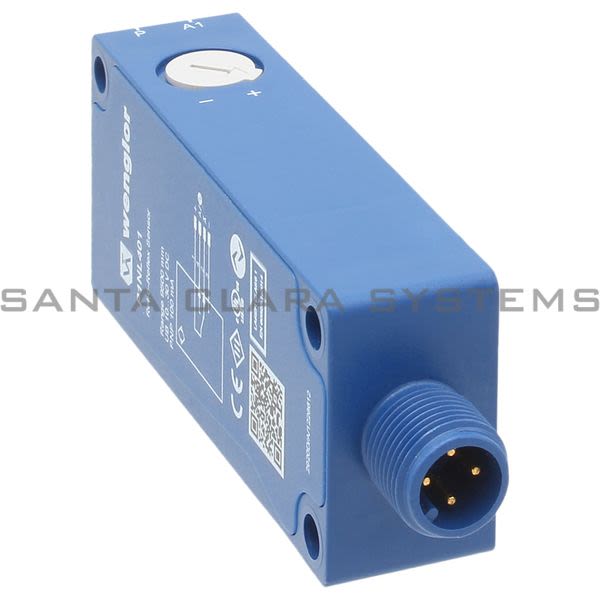

Wenglor - Retro-Reflex Sensor Universal

Product Summary:

Range: 9,500 mm
Reference Reflector/Reflector Foil: RE6151BM
Min. Distance to Reflector: 0 mm
Smallest Recognizable Part: See Table 2
Switching Hysteresis: < 15 %

Current response time:

By 5AM PT on Monday

Emergency?

Description: Retro-Reflex Sensor Universal
Range: 9,500 mm
Reference Reflector/Reflector Foil: RE6151BM
Min. Distance to Reflector: 0 mm
Smallest Recognizable Part: See Table 2
Switching Hysteresis: < 15 %
Light Source: Laser collimated (red)
Polarization Filter: yes
Service Life (T = +25 C): 100,000 h
Laser Class (EN 60825-1): 1
Max. Ambient Light: 10,000 Lux
Single-Lens Optic: yes
Supply Voltage: 10 ... 30 V DC
Supply Voltage with IO-Link: 18 ... 30 V DC
Current Consumption (Ub = 24 V): < 20 mA
Switching Frequency: 2,000 Hz

Switching frequency (speed mode): 3,500 Hz
Response Time: 0.25 ms
Response time (speed mode): 0.14 ms
Temperature Drift: < 10 %
Temperature Range: -25 ... 60 C
Switching Output Voltage Drop: < 2 V
Switching Output/Switching Current: 100 mA
Residual Current Switching Output: < 50 A
Short Circuit Protection: yes
Reverse Polarity Protection: Yes
Overload Protection: yes
Interface: IO-Link V1.1
Protection Class: III
Output: Push-pull NPN PNP
PNP NC, PNP NO: yes
