P1PH305
In stock and ready to ship
Product Summary:
- Range: 400 mm
- Setting Range: 50 ... 400 mm
- Switching Hysteresis: < 3 %
- Light Source: Blue Light
- Service Life: 100,000 h
Get a Quote
Current response time:
7 Minutes 50 Seconds

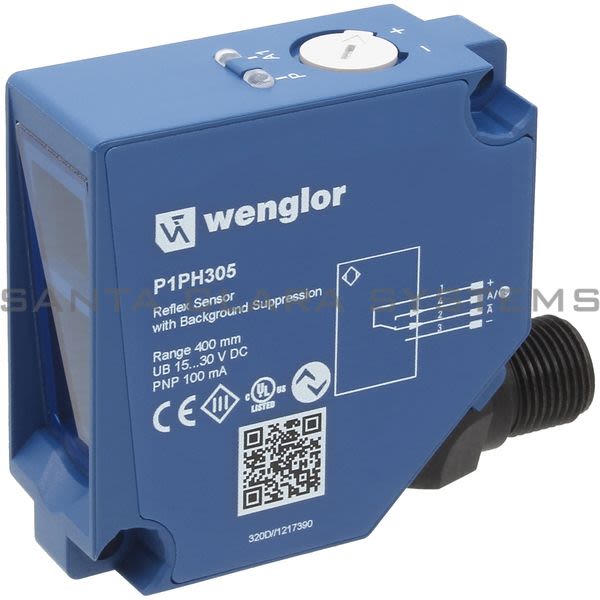

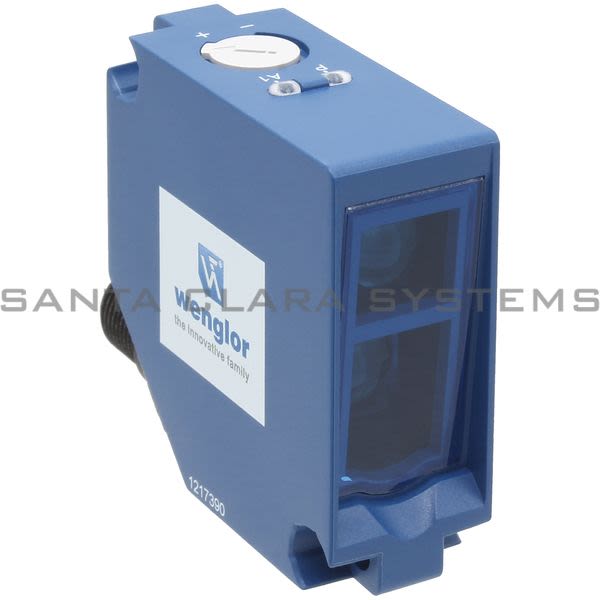

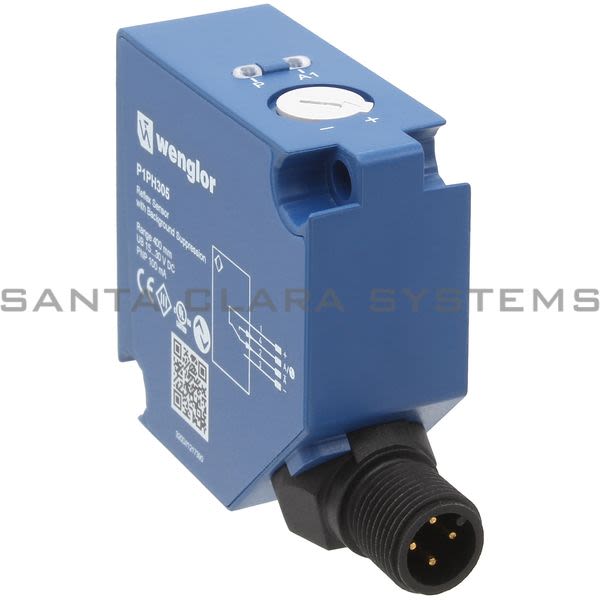

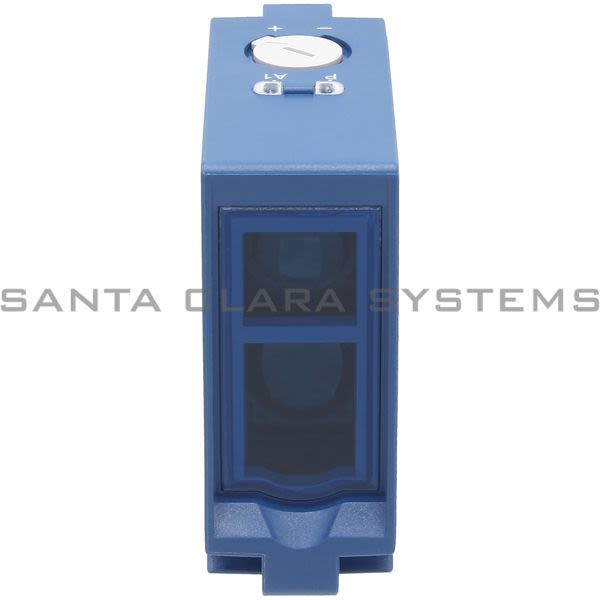

- Description: Reflex Sensor
- Range: 400 mm
- Setting Range: 50 ... 400 mm
- Switching Hysteresis: < 3 %
- Light Source: Blue Light
- Service Life: 100,000 h
- Max. Ambient Light: 10,000 Lux
- Supply Voltage: 15 ... 30 V DC
- Supply Voltage with IO-Link: 18 ... 30 V DC
- Current Consumption (Ub = 24 V): < 20 mA
- Switching Frequency: 800 Hz
- Response Time: 1.25 ms
- Response time (interference-free mode): 1.5 ms
- Temperature Drift: < 5 %
- Temperature Range: -40 ... 60 °C
- Switching Output Voltage Drop: < 2 V
- Switching Output/Switching Current: 100 mA
- Interface: IO-Link V1.1
- Connection: M12 × 1; 4-pin
- PNP NC, PNP NO: yes
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on P1PH305 . Santa Clara Systems carries 3,874 items from Wenglor.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
