P1PH603

Wenglor - Reflex Sensor

Product Summary:

Range: 1,200 mm
Setting Range: 100 ... 1,200 mm
Switching Hysteresis: < 5 %
Light Source: Red Light
Service Life (T = +25 °C): 100,000 h

Current response time:

By 5AM PT on Monday

Emergency?

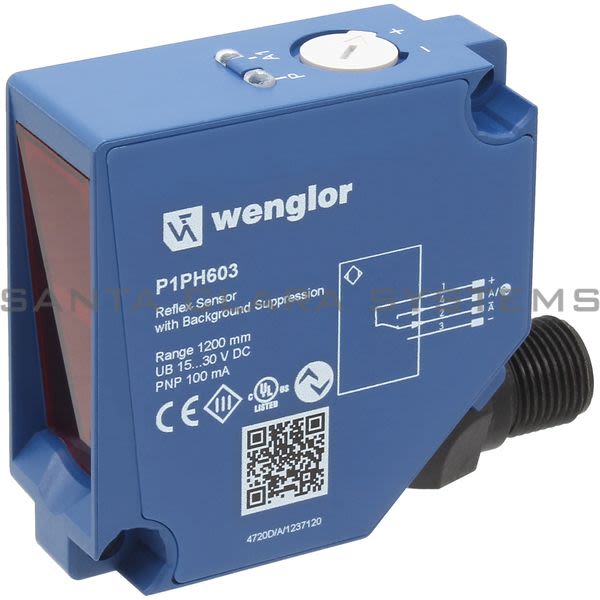

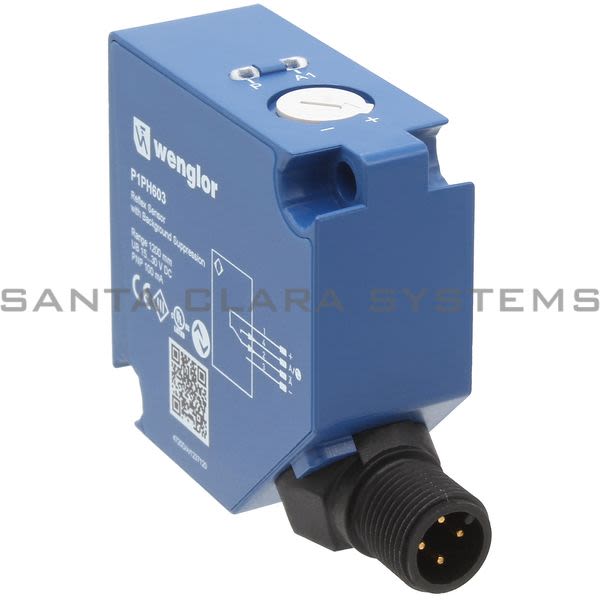

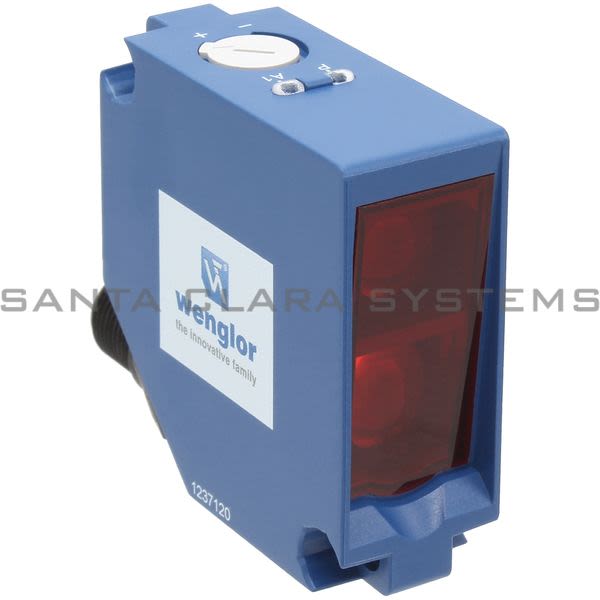

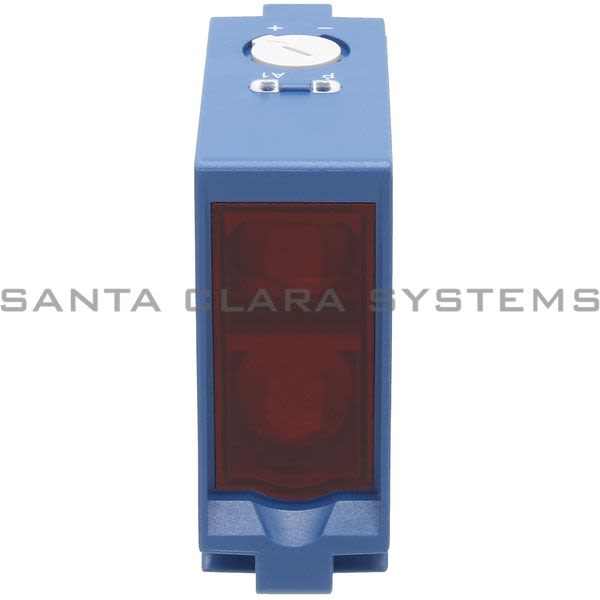

Description: Reflex Sensor
Range: 1,200 mm
Setting Range: 100 ... 1,200 mm
Switching Hysteresis: < 5 %
Light Source: Red Light
Service Life (T = +25 °C): 100,000 h
Max. Ambient Light: 10,000 Lux
Supply Voltage: 15 ... 30 V DC
Supply Voltage with IO-Link: 18 ... 30 V DC
Current Consumption: < 20 mA
Switching Frequency: 600 Hz

Switching Frequency (interference-free mode): 400 Hz
Response Time: 1.5 ms
Response time (interference-free mode): 2 ms
Temperature Drift: < 6 %
Temperature Range: -40 ... 60 °C
Switching Output Voltage Drop: < 2 V
Switching Output/Switching Current: 100 mA
Interface: IO-Link V1.1
Connection: M12 × 1; 4-pin
Optic Cover: PMMA

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on P1PH603 . Santa Clara Systems carries 3,862 items from Wenglor.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
