P3PC311
In stock and ready to ship
Product Summary:
- Working Range: 60 ... 660 mm
- Setting Range: 60 ... 660 mm
- Reproducibility maximum: 550 µm
- Reproducibility: 1 Sigma: 30 µm
- Linearity Deviation: 900 µm

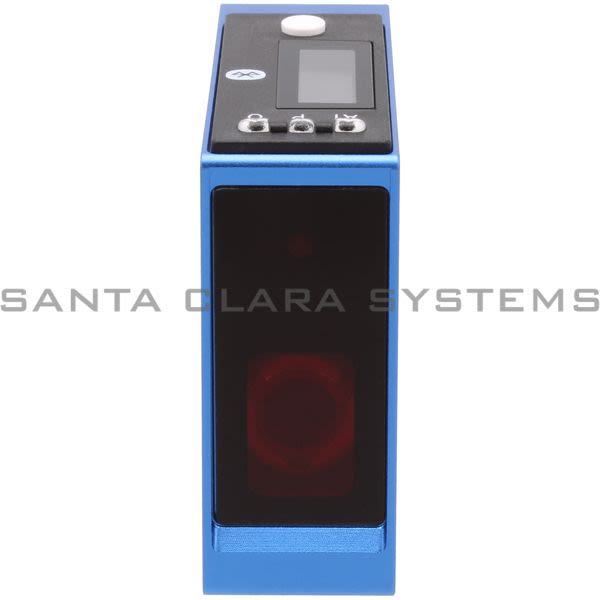

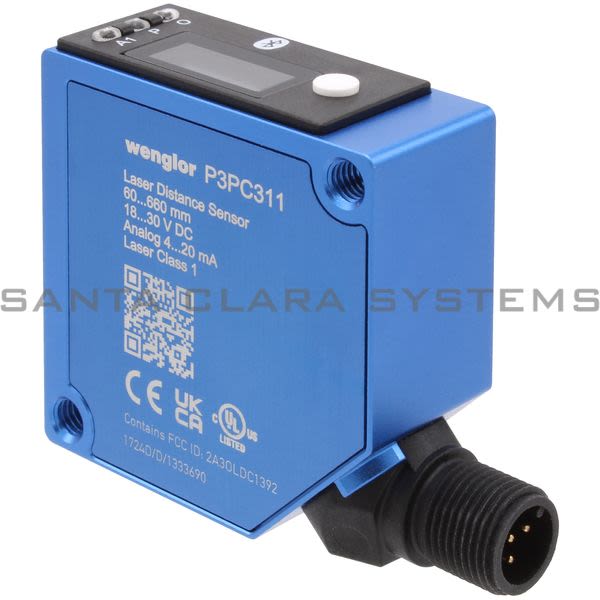

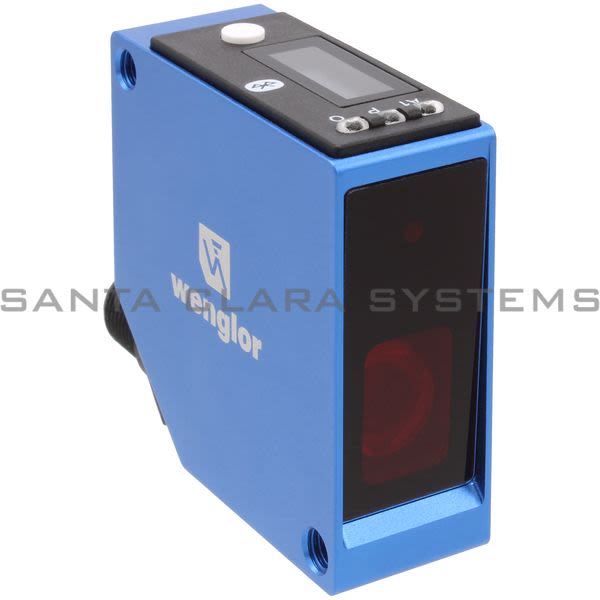

- Description: Laser Distance Sensor Triangulation
- Working Range: 60 ... 660 mm
- Setting Range: 60 ... 660 mm
- Reproducibility maximum: 550 µm
- Reproducibility: 1 Sigma: 30 µm
- Linearity Deviation: 900 µm
- Light Source: Laser (red)
- Wavelength: 655 nm
- Service Life (T = +25 °C): 100,000 h
- Max. Ambient Light: 20,000 Lux
- Supply Voltage: 18 ... 30 V DC
- Current Consumption (Ub = 24 V): < 60 mA
- Measuring Rate: 2,500 /s
- Response Time: < 0.5 ms
- Temperature Drift: < 50 µm/K
- Temperature Range: -30 ... 60 °C
- Analog Output: 4...20 mA
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on P3PC311 . Santa Clara Systems carries 3,870 items from Wenglor.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
