U18T003

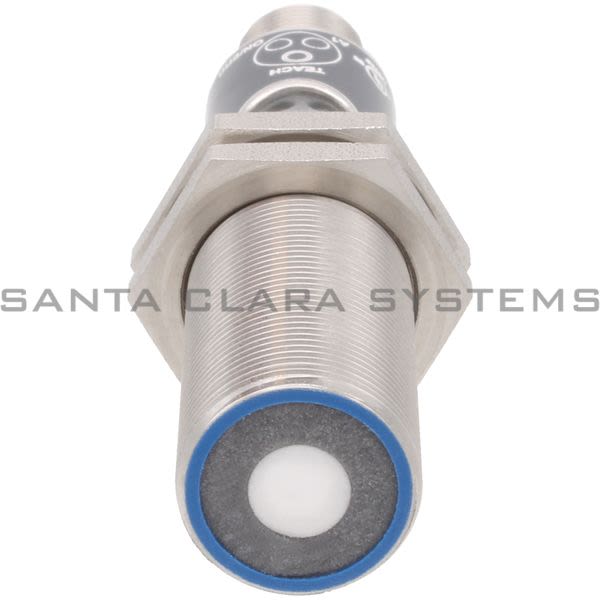

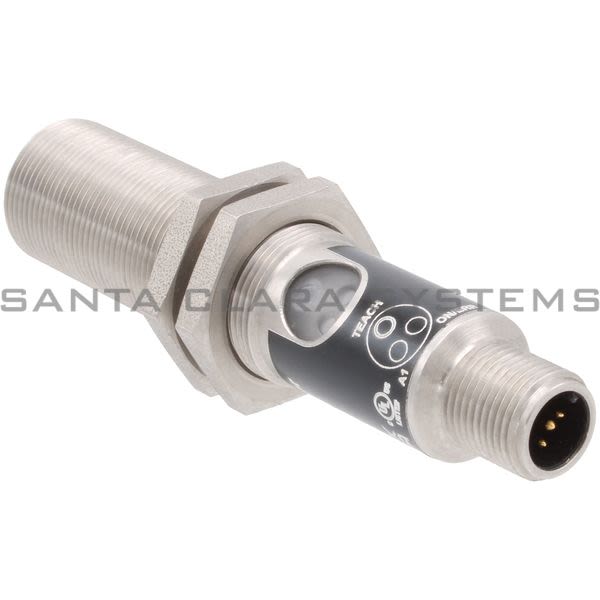

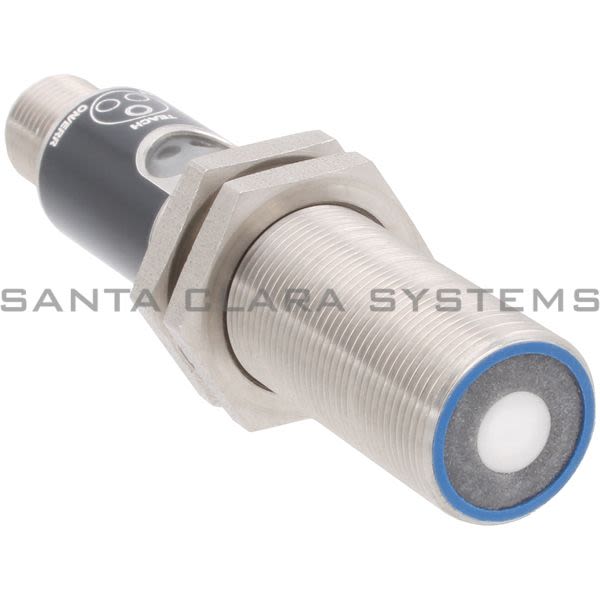

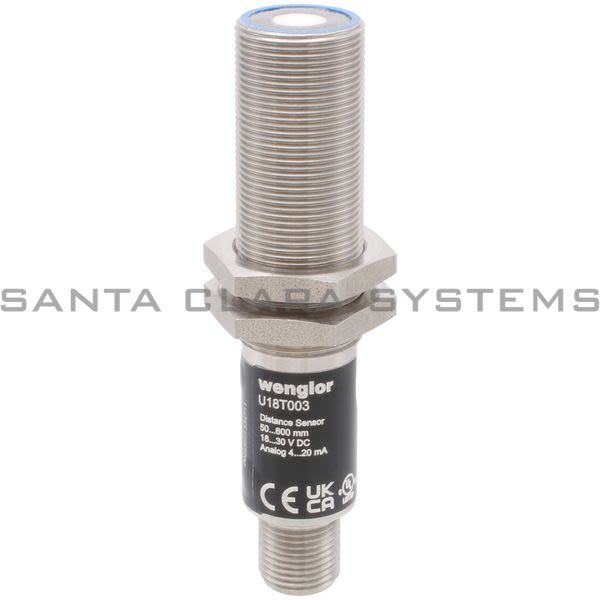

Wenglor - Distance Sensor

Product Summary:

Working range, reflex sensor: 50 ... 600 mm
Supply Voltage: 18 ... 30 V DC
Current Consumption (Ub = 24 V): < 40 mA
Switching frequency, reflex sensor: 9 Hz
Switching frequency, through-beam sensor: 9 Hz

Current response time:

By 5AM PT on Monday

Emergency?

Description: Distance Sensor
Working range, reflex sensor: 50 ... 600 mm
Supply Voltage: 18 ... 30 V DC
Current Consumption (Ub = 24 V): < 40 mA
Switching frequency, reflex sensor: 9 Hz
Switching frequency, through-beam sensor: 9 Hz
Response time, reflex sensor: 56 ms

Temperature Drift: < 1 %
Temperature Range: -30 ... 60 °C
Number of Switching Outputs: 1
Connection: M12 × 1; 4/5-pin
Weight: 38 g
Circuit: NC NC/NO NO
