UF66PA3
In stock and ready to ship
Product Summary:
- S: upply Voltage
- Current Consumption (Ub = 24 V): < 40 mA
- Switching Frequency: 200 Hz
- Response Time: 2500 s
- Temperature Drift: < 10 %
Get a Quote
Current response time:
15 Minutes 37 Seconds

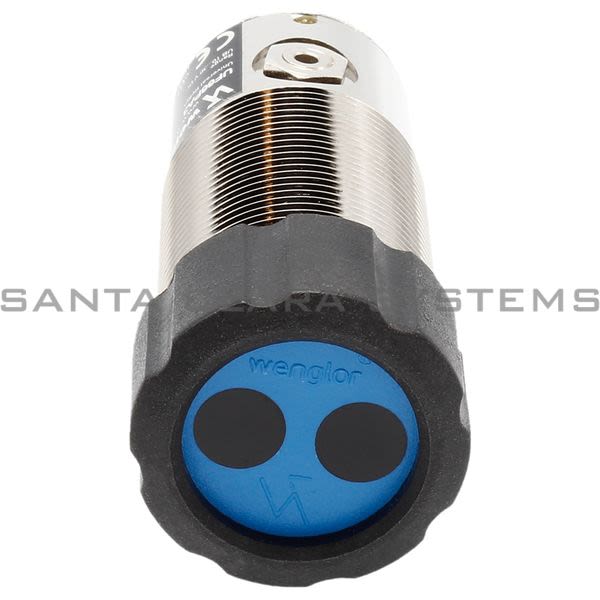

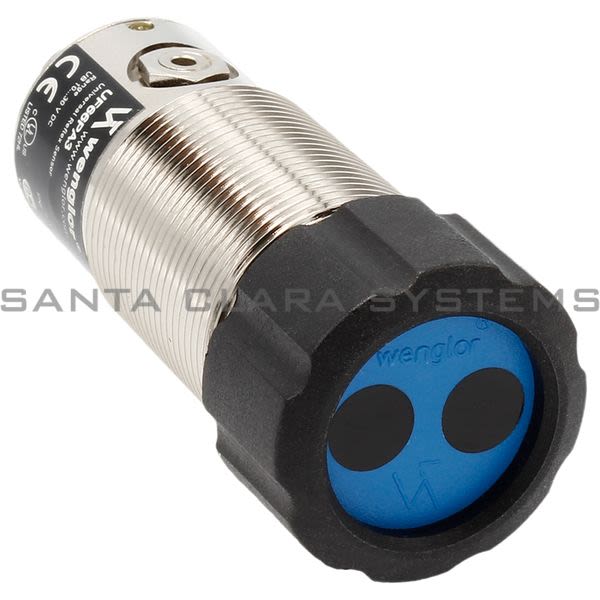

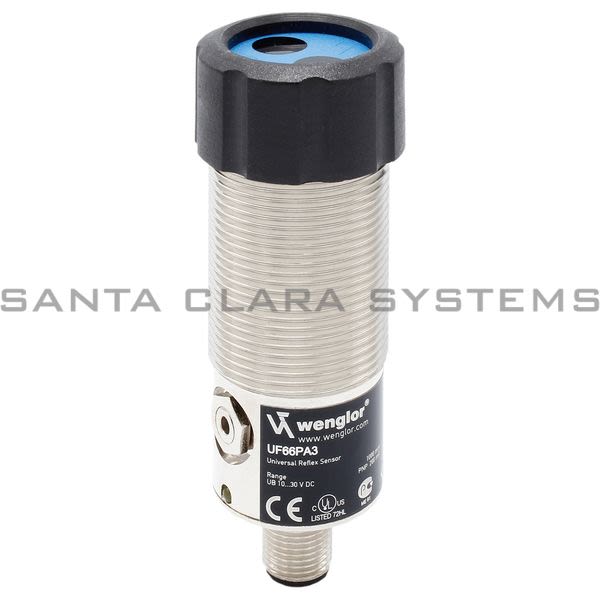

- Description: Reflex Sensor
- S: upply Voltage
- Current Consumption (Ub = 24 V): < 40 mA
- Switching Frequency: 200 Hz
- Response Time: 2500 s
- Temperature Drift: < 10 %
- Temperature Range: -25...60 C
- Switching Output Voltage Drop: < 2.5 V
- Switching Output/Switching Current: 200 mA
- Residual Current Switching Output: < 50 A
- Short Circuit Protection: yes
- Reverse Polarity Protection: yes
- Overload Protection: yes
- Protection Class: III
- Supply Voltage: 10...30 V DC
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on UF66PA3 . Santa Clara Systems carries 3,326 items from Wenglor.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
