UMD123U035

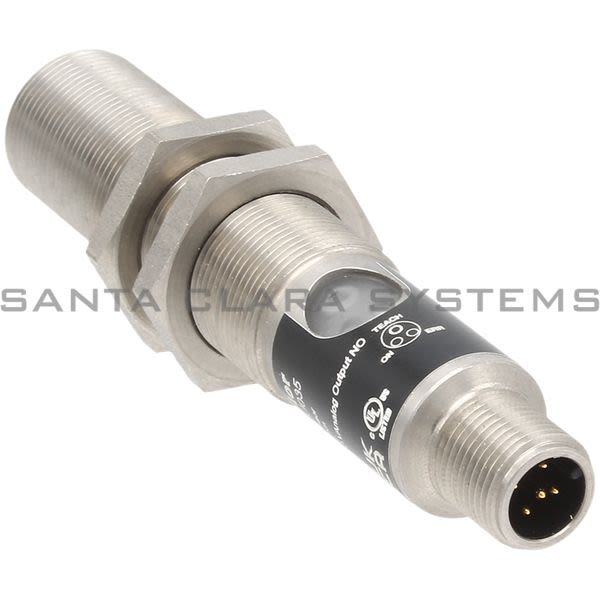

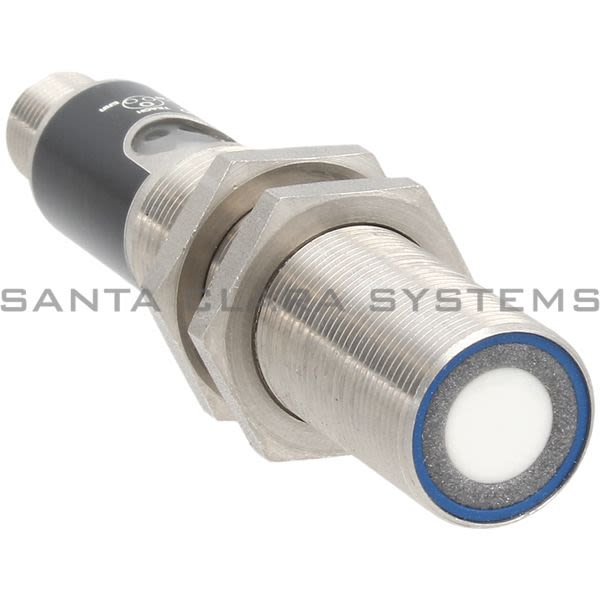

Wenglor - Reflex Sensor with Analog Output

Product Summary:

Supply Voltage: 18...30 V DC
Current Consumption (Ub = 24 V): < 30 mA
Switching Frequency: 7 Hz
Response Time: 72 ms
Temperature Range: -25...60 C

Current response time:

By 5AM PT on Monday

Emergency?

Description: Reflex Sensor with Analog Output
Supply Voltage: 18...30 V DC
Current Consumption (Ub = 24 V): < 30 mA
Switching Frequency: 7 Hz
Response Time: 72 ms
Temperature Range: -25...60 C
Number of Switching Outputs: 1
Switching Output Voltage Drop: < 2,5 V
PNP Switching Output/Switching Current: 100 mA

Analog Output: 0...10 V
Synchronous Mode: up to 40 sensors
Short Circuit Protection: yes
Reverse Polarity Protection: yes
Overload Protection: yes
Lockable: yes
Interface: IO-Link V1.0
Protection Class: III

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on UMD123U035 . Santa Clara Systems carries 3,326 items from Wenglor.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
