X1TA100QXT3

Wenglor - High-Performance Distance Sensor

Product Summary:

Supply Voltage: 18...30 V DC
Current Consumption (Ub = 24 V): < 100 mA
Switching Frequency: 50 Hz
Measuring Rate: 1...100 /s
Response Time: 10...200 ms

Current response time:

By 5AM PT on Thursday

Emergency?

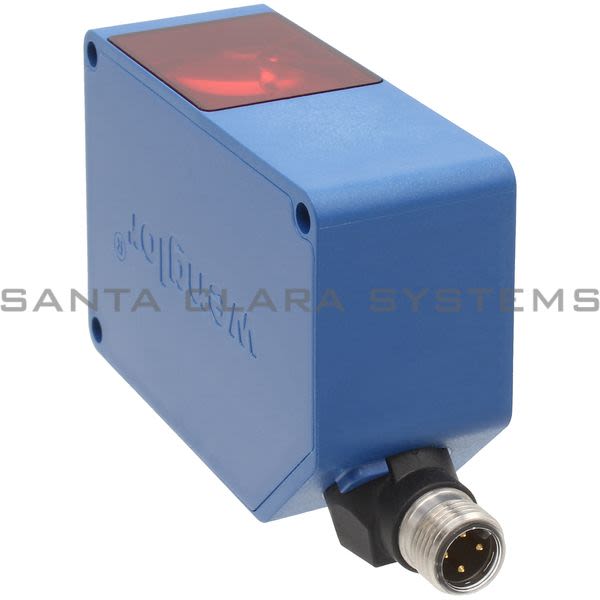

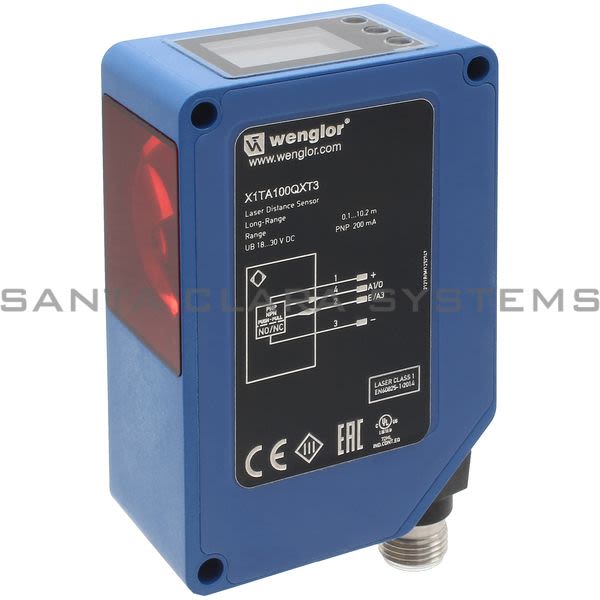

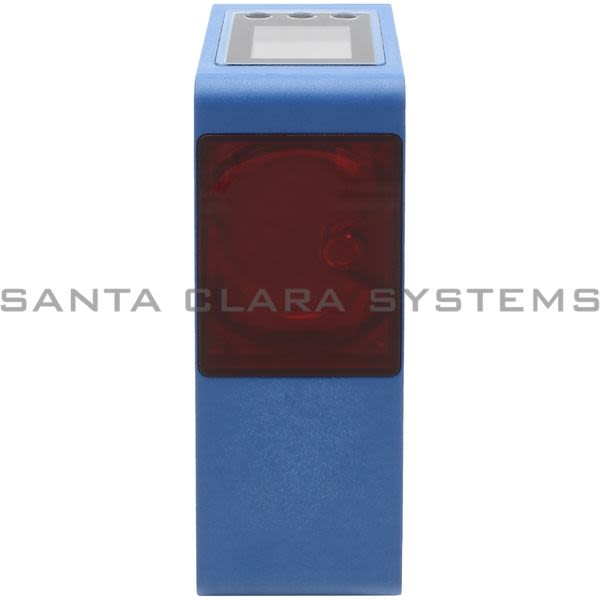

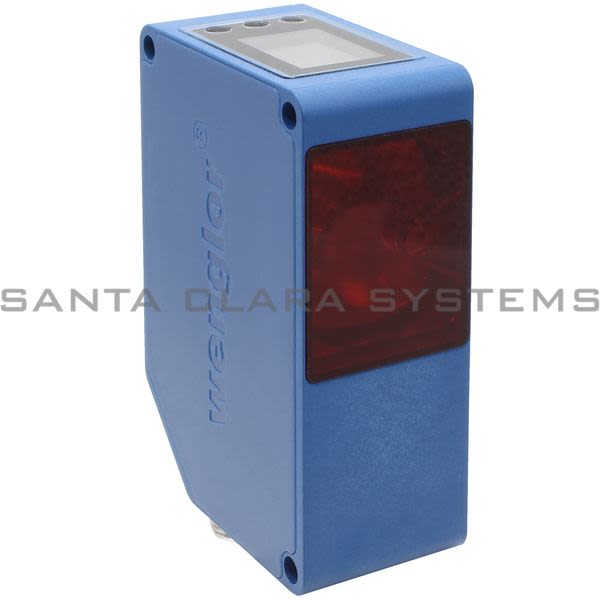

Description: High-Performance Distance Sensor
Supply Voltage: 18...30 V DC
Current Consumption (Ub = 24 V): < 100 mA
Switching Frequency: 50 Hz
Measuring Rate: 1...100 /s
Response Time: 10...200 ms
On-/Off-Delay: 0...10000 ms
Temperature Drift (-10 °C < Tu < 50 °C): < 0,2 mm/K
Temperature Drift (Tu < -10 °C, Tu > 50 °C): < 0,4 mm/K

Temperature Range: -25...60 °C
Number of Switching Outputs: 2
Switching Output Voltage Drop: < 2,5 V
Switching Output/Switching Current: 200 mA
Analog Output: 0...10 V/4...20 mA
Short Circuit Protection: yes
Reverse Polarity and Overload Protection: yes
Protection Class: III
FDA Accession Number: 0920382-000

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on X1TA100QXT3 . Santa Clara Systems carries 3,870 items from Wenglor.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
