Y1TA100MHT88

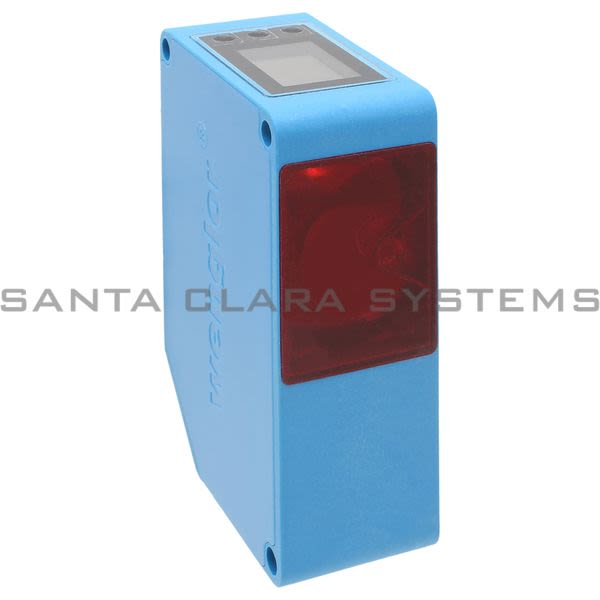

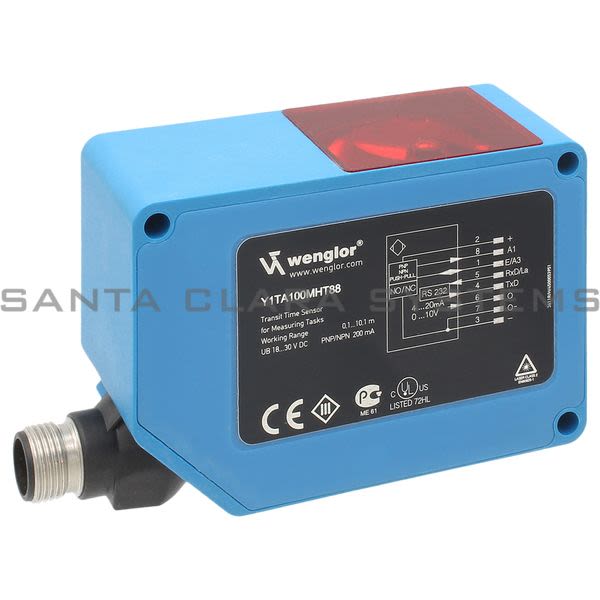

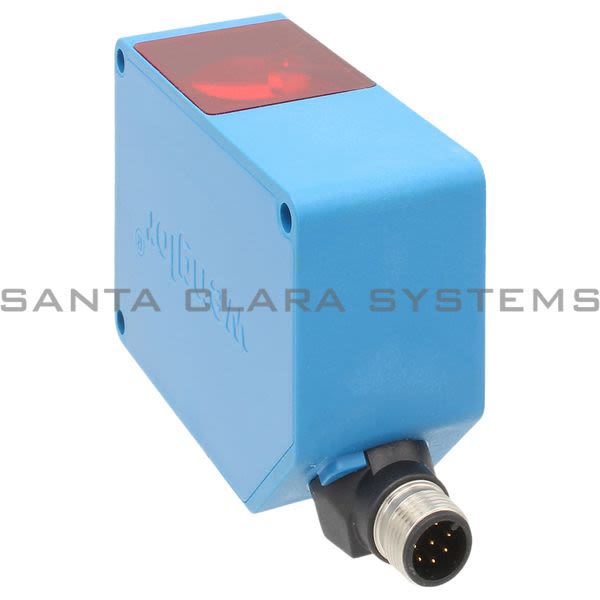

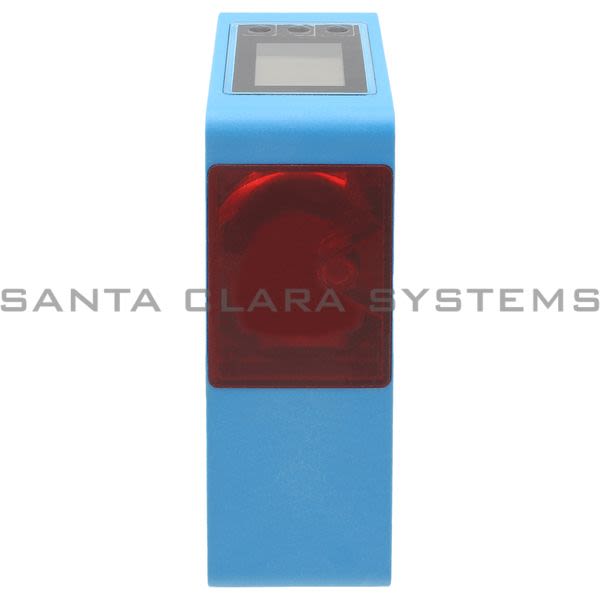

Wenglor - Laser Distance Sensor Time of Flight

Product Summary:

Supply Voltage: 18...30 V DC
Current Consumption (Ub = 24 V): < 100 mA
Switching Frequency: 50 Hz
Measuring Rate: 1...100 /s
On-/Off-Delay: 0...10000 ms

Current response time:

By 5AM PT on Monday

Emergency?

Description: Laser Distance Sensor Time of Flight
Supply Voltage: 18...30 V DC
Current Consumption (Ub = 24 V): < 100 mA
Switching Frequency: 50 Hz
Measuring Rate: 1...100 /s
On-/Off-Delay: 0...10000 ms
Temperature Drift (-10 �C < Tu < 50 �C): < 0 .2 mm/K
Temperature Drift (Tu < -10 �C Tu > 50 �C): < 0.4 mm/K
Temperature Range: -25...60 �C
Number of Switching Outputs: 1

Switching Output Voltage Drop: < 2.5 V
Switching Output/Switching Current: 200 mA
Analog Output: 0...10 V/4...20 mA
Short Circuit Protection: yes
Reverse Polarity and Overload Protection: yes
Interface: RS-232
Protection Class: III
FDA Accession Number: 0710891-002
Temperature Drift (-10 °C < Tu < 50 °C): < 0,2 mm/K
Temperature Drift (Tu < -10 °C, Tu > 50 °C): < 0,4 mm/K

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on Y1TA100MHT88 . Santa Clara Systems carries 3,824 items from Wenglor.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
