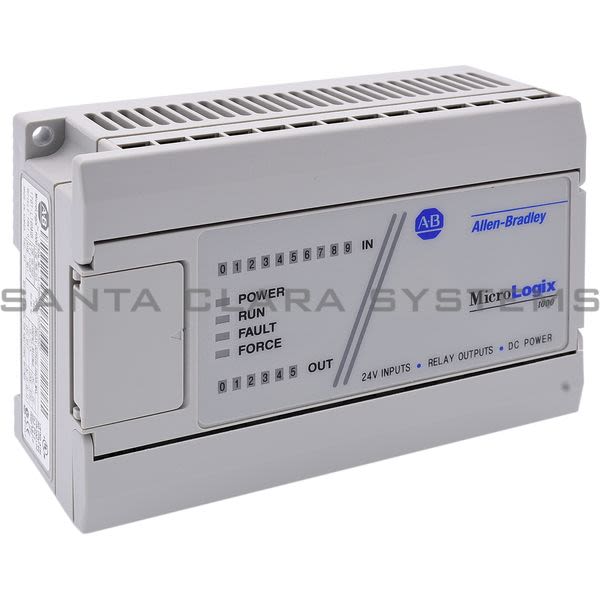

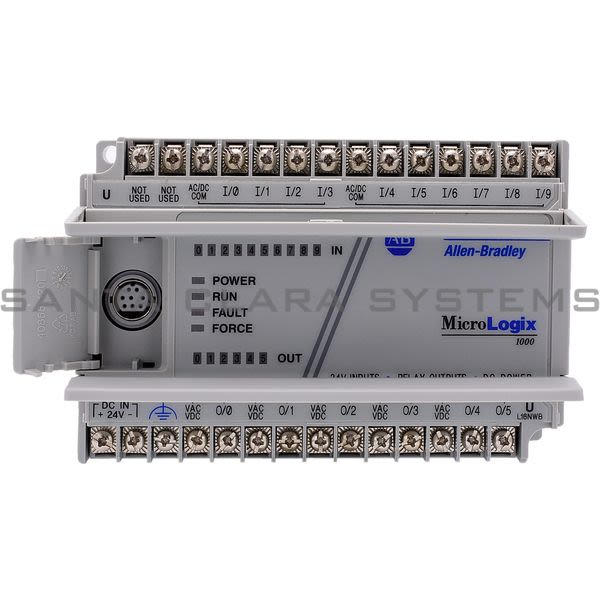

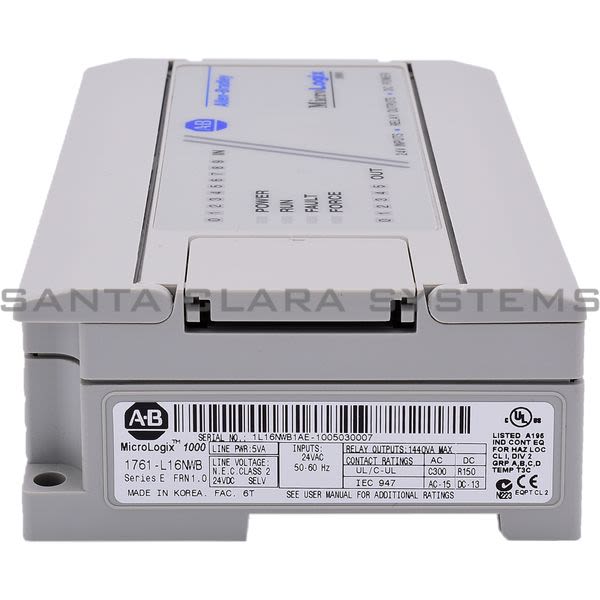

1761-L16NWB

Allen Bradley - Controller | MicroLogix 1000

Current response time:

By 5AM PT on Friday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Controller | MicroLogix 1000
Input Type: 24V AC or 24V DC (both)
Product Type: Programmable Controller
Output Type: Relay
Radiated Susceptibility: EN 61000-3 at 10 V/m, 27 MHz - 1000 MHz; 3V/m, 87 MHz - 108 MHz, 174 MHz - 230 MHz, and 470 MHz - 790 MHz
Number of Digital I/O: 16
Memory Size and Type: 1K EEPROM (approximately 737 instruction words: 437 data words)
Power Supply Voltage: 20.4-26.4V DC
Power Supply Usage: 120V AC - N/A, 240V AC - N/A, 24V DC @ 5W
Power Cycles: 50,000 minimum
Isolation: 1500V AC
Electrostatic Discharge: EN 61000-2 at 8K V
Fast Transient: EN 61000-4 at 2K V Power Supply, I/O; 1K V Comms

AC On/Off State Voltage, Min.: 18V AC / 0.0V AC
AC On/Off State Voltage, Max.: 26.4V AC @ 55C (131F), 30V AC @ 30C (86F) / 3.0V AC
AC On State Current, Min., Max. : 3.0 mA @ 18V AC, 12 mA @ 30V AC
AC Off State Current, Min.: 1.0 mA
AC Frequency, Nominal, Range. : 50/60 Hz, 47 to 63 Hz
DC On/Off State Voltage, Min.: 14V AC, 0.0V AC
DC On/Off State Voltage, Max. : 26.4V dc @ 55C (131F) 30V DC @ 30C (86F) / 5.0V DC
DC On State Current, Min., Max. : 2.5 mA @ 14V DC, 12 mA @ 30V DC
DC Off State Current, Min.: 1.5 mA
DC Frequency, Nominal, Range. : See Turn On Time/Turn Off Time
AC/DC (Both) Turn On/Off Time, Min.: 3 ms / 10ms [Turn On and Turn Off Times are not adjustable]
AC/DC (Both) Turn On/Off Time, Max.: 20 ms / 20 ms [Turn On and Turn Off Times are not adjustable]

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1761-L16NWB . Santa Clara Systems carries 53,635 items from Allen Bradley.

1761-L16NWB Document Update

1761-L16NWB Selection Guide

1761-L16NWB Catalog
